44

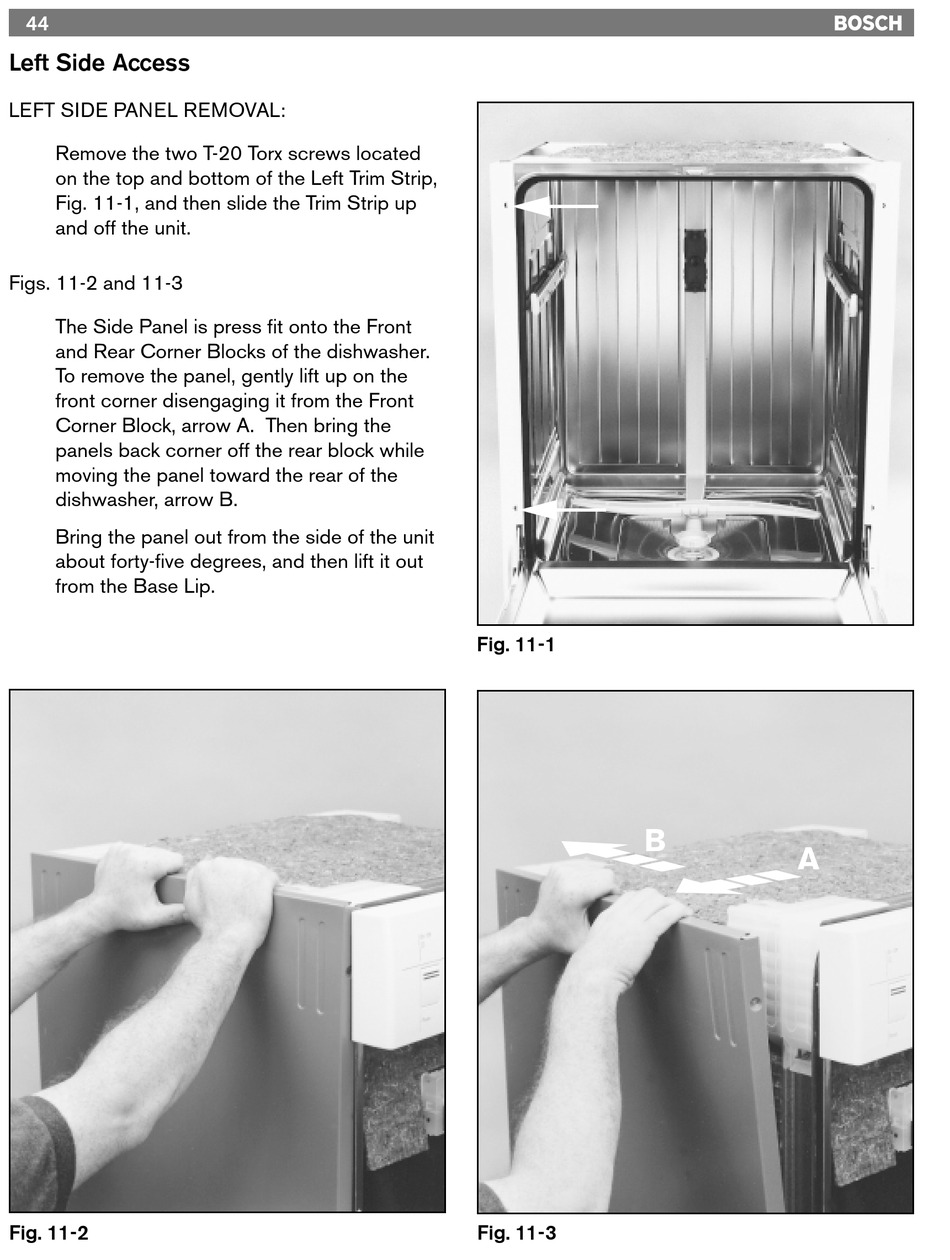

Left Side Access

LEFT SIDE PANEL REMOVAL:

Remove the two T-20 Torx screws located
on the top and bottom of the Left Trim Strip,
Fig. 11-1, and then slide the Trim Strip up
and off the unit.
Figs. 11-2 and 11-3
The Side Panel is press fit onto the Front
and Rear Corner Blocks of the dishwasher.
To remove the panel, gently lift up on the
front corner disengaging it from the Front
Corner Block, arrow A. Then bring the
panels back corner off the rear block while
moving the panel toward the rear of the
dishwasher, arrow B.
Bring the panel out from the side of the unit
about forty-five degrees, and then lift it out
from the Base Lip.
Fig. 11-2
Fig. 11-1
B
Fig. 11-3
H
A
