Additional printer setup
6

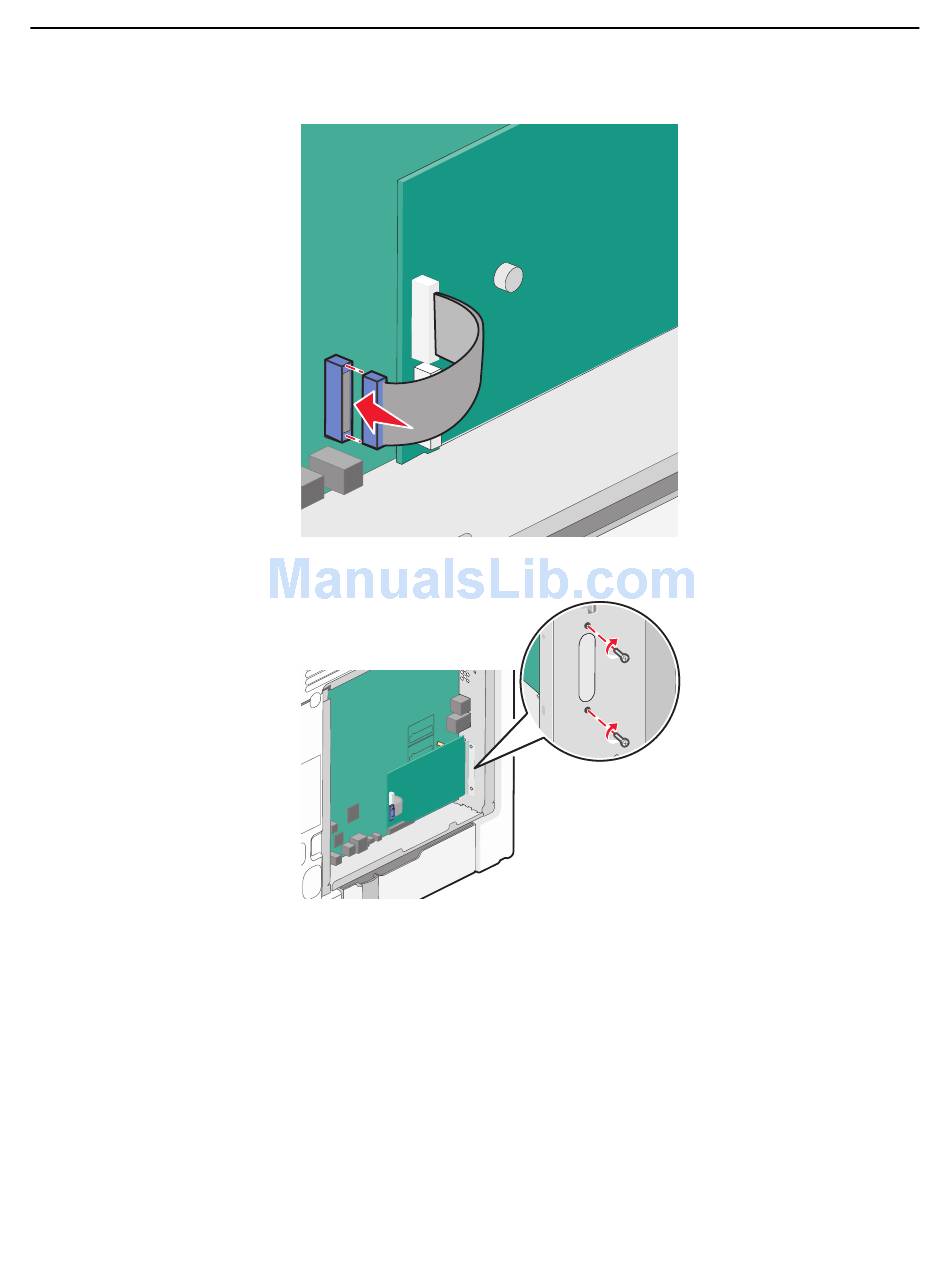

Connect the ISP solution interface cable into the color‑coded receptacle on the system board.
7
Firmly connect the ISP solution to the system board cage using the two screws.
8
Reattach the system board cover.
Note: If you have removed an optional printer hard disk while installing the Internal Solutions Port, then
reinstall the printer hard disk first before reattaching the system board cover. For more information, see
"Installing a printer hard disk" on page 26.
25
