Bosch DS7400Xi Reference Manual

Control/communicator ver. 4+
Hide thumbs Also See for DS7400Xi:
Table of Contents

Advertisement

Quick Links

Armed
Perimeter
Status
Supervisory
Bell Silenced
Power
Trouble
Fire
1
4
7
*
DS7445/DS7445i
Turning On (arming) your System using the DS7445/DS7445i
or DS7447/DS7447E Keypad
Normal Arming
Perimeter Arming, no entry delay
Perimeter Arming, with entry delay
Maximum Security Arming
Custom Arming
Set Delayed Arming
Extend Automatic Arming
Force Arming
Zone Bypass
Turning Off (disarming) your System
Enter your [PIN] followed by [Off]
NOTE:
For additional information on operating this system, consult the DS7400Xi (Ver. 4+) User's Guide (P/N: 43851) and section 7
of this Reference Guide.
Reference Guide
for the DS7400Xi (Ver. 4+)
Control/Communicator
1 2 3 4 5 6
7 8
9 10 11 12 13 14 15 16
TEST WEEKLY
On
Off
2
3
Perimeter
5
6
Only
No
8
9
Entry
0
#
Bypass
System
Reset

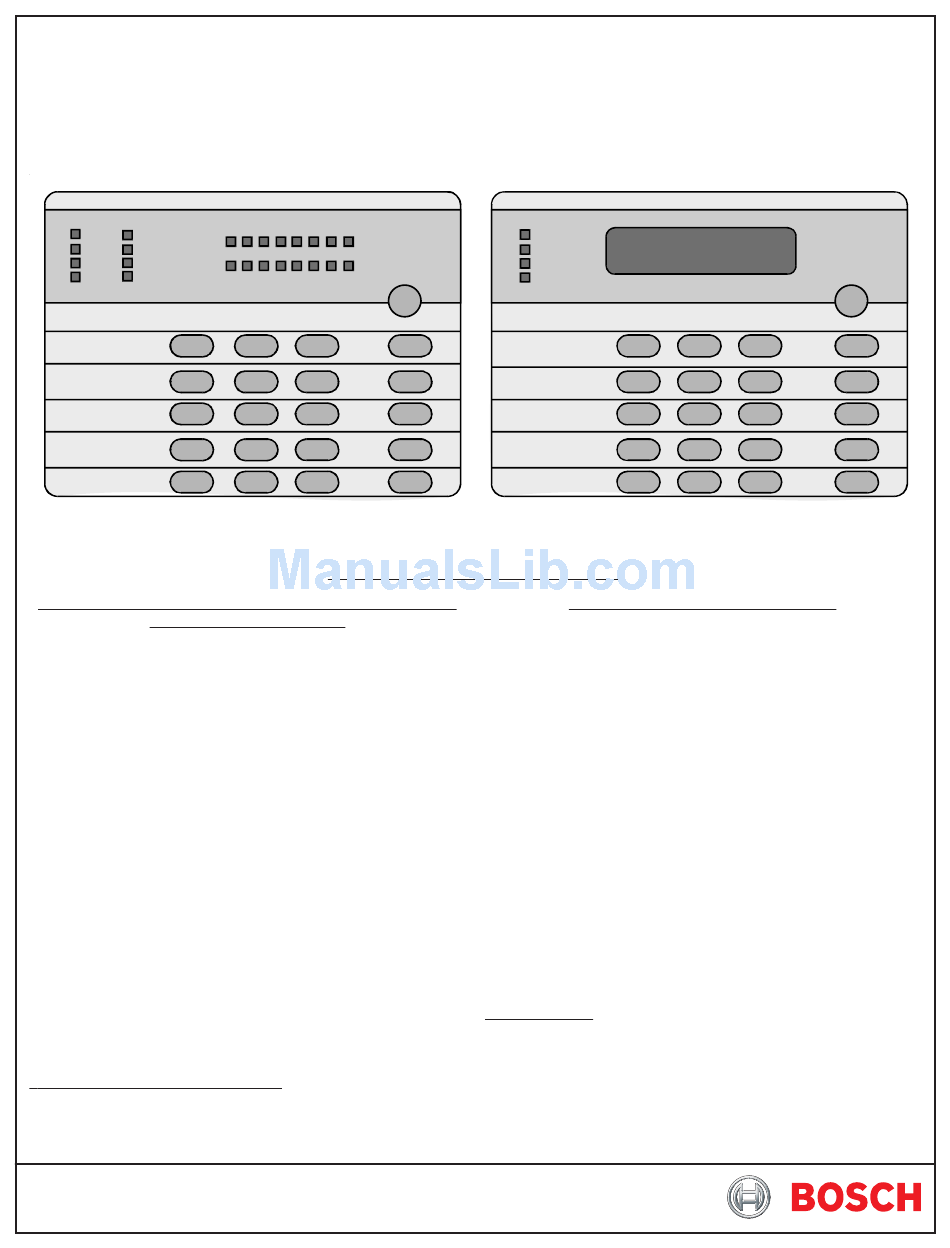

Keypad Quick Reference Guide
[PIN] + [On]
[PIN] + [No Entry] +
[Perimeter Only]
[PIN] + [Perimeter Only]
[PIN] + [No Entry] + [On]
[PIN] + [#] [4]
[PIN] + [#] [9] [9] and enter
number of hours from
current time to the desired
arming time.
[PIN] + [OFF] during pre-
arm time
Enter
an
command followed by
[Bypass]
[PIN] + [Bypass] followed
by the Zone number.
[PIN] +[Bypass] [*] to clear
ALL Bypasses.
Armed
Status
Power
Fire
Commands for other System Features
Chime Mode
System Walk Test
Read Event History
Battery Test
Communicator Test
Fire Reset
Remote Program Dial-out
Remote Program Answer
Battery/Sounder Test
Error Display
Error Display Reset
arming
Fire Walk Test
To Silence a Fire Trouble/Alarm
To Clear a Fire Trouble Display
Access Control
Enter your [Access Control PIN] followed by [Off]
TEST WEEKLY
1
2
3
4
5
6
7
8
9
*
0
#
DS7447/DS7447E
[PIN] + [#] [7]
[PIN] + [#] [8] [1]
[PIN] + [#] [8] [9]
[PIN] + [System Reset]
[PIN] + [#] [8] [2]
[PIN] + [System Reset]
[PIN] + [#][8] [3]
[PIN] + [#] [8] [6]
[PIN] + [#] [8] [5]
[PIN] + [#] [8] [7]
[PIN] + [System Reset]
[PIN] + [#] [9] [1]
[PIN] + [Off]
[PIN] + [System Reset]
On
Off
Perimeter
Only
No
Entry
Bypass
System
Reset
