ASSEMBLY

To hire an authorized service technician to assemble the treadmill, call 1-800-445-2480.
Assembly requires two persons. Set the treadmill in a cleared area and remove the packing materials; do not
dispose of the packing materials until assembly is completed. Note: The underside of the treadmill walking belt is
coated with high-performance lubricant. During shipping, lubricant may be transferred to the top of the walking
belt or to the shipping carton. This is a normal condition and does not affect treadmill performance. If there is lu-
bricant on top of the walking belt, wipe it off with a soft cloth and mild, non-abrasive cleaner.
Assembly requires the included hex keys and your own Phillips screwdriver , rubber
mallet , adjustable wrench , and needlenose pliers .

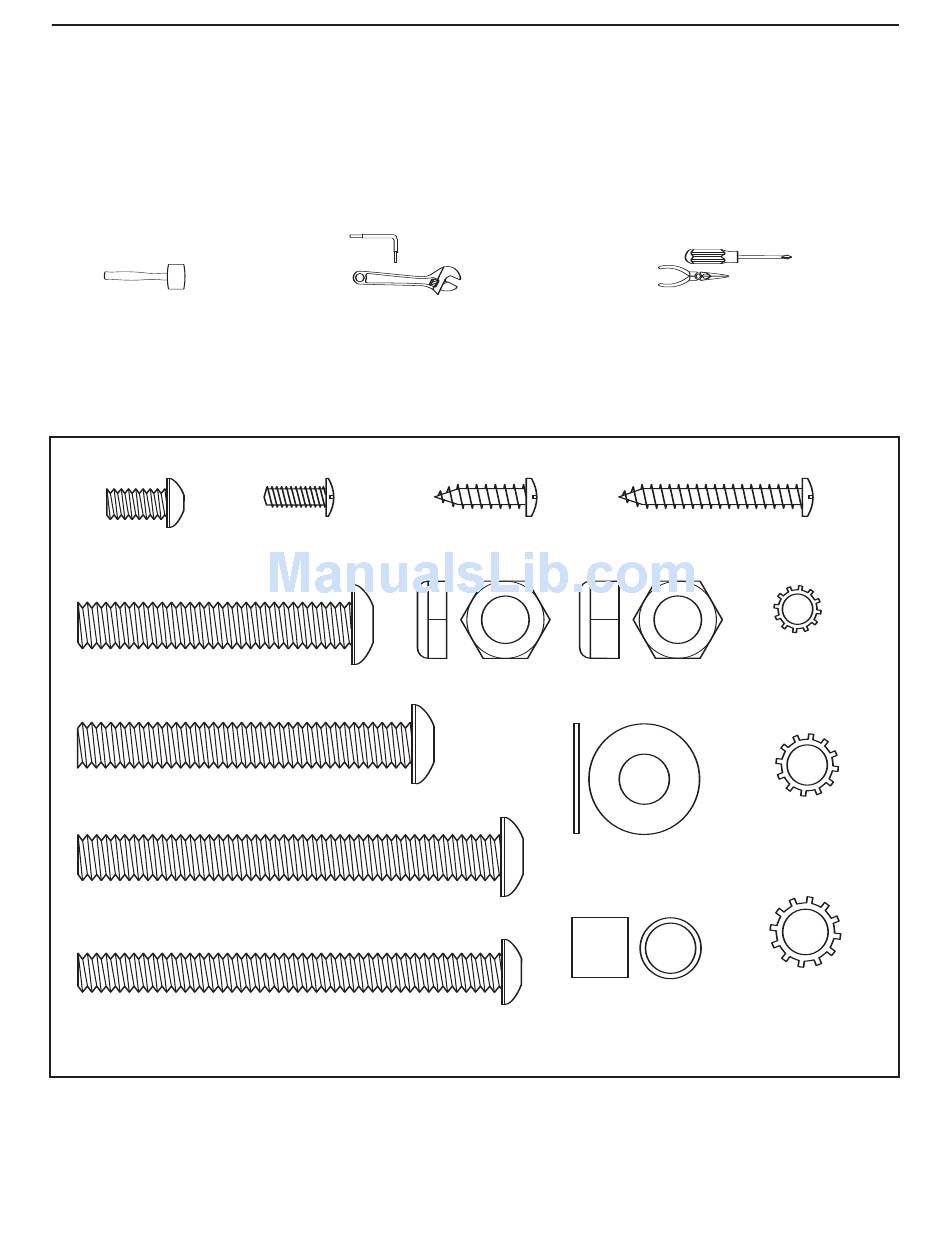

Use the drawings below to identify the assembly hardware. The number in parentheses below each drawing is
the key number of the part, from the PART LIST near the end of this manual. The number after the parentheses
is the quantity needed for assembly. Note: If a part is not in the parts bag, check to see if it is preattached to
one of the parts to be assembled. Extra hardware may be included. To avoid damaging plastic parts, do
not use power tools for assembly.
3/4" Screw (2)–10 1 1/2" Screw (6)–4
Silver Ground
Screw (11)–2
Console
Bolt (22)–2
1/4" Star Washer
Upright Bolt (27)–4
(21)–2
Wheel Nut (35)–2 Nut (47)–2
Wheel Bolt (14)–2
Handrail Star
Washer (19)–4
Frame Washer
(33)–2
Frame Bolt (32)–2
Upright Star
Wheel Spacer
Washer (39)–4
Handrail Bolt (20)–4 (44)–4
6
