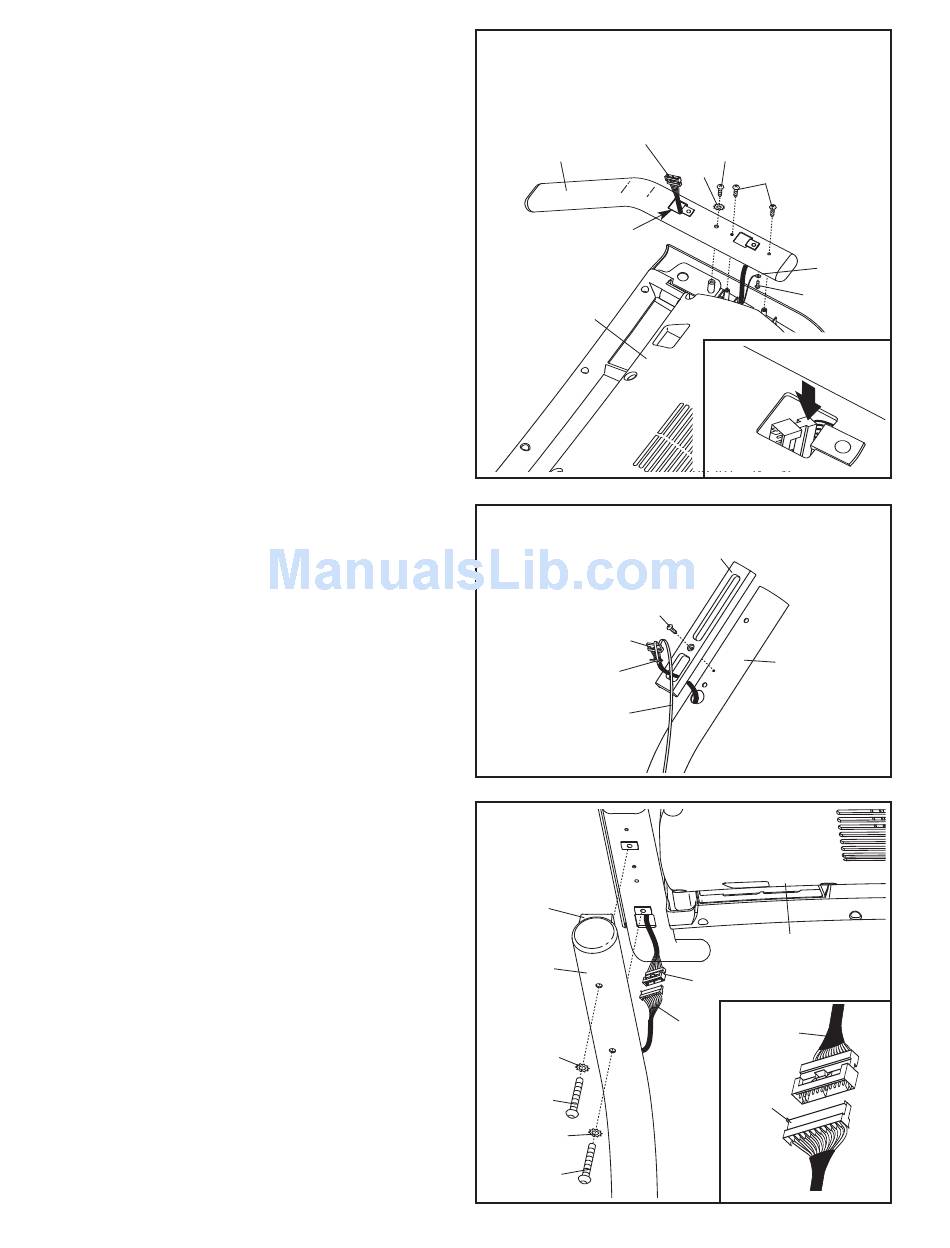

7. Set the console assembly face down on a soft
surface to avoid scratching it. Hold a Handrail
(18) near the console assembly.
Next, insert the console wire into the hole in the
bottom of the Handrail (18) and out of the indi-
cated square hole. If necessary, grip the con-
nector with needlenose pliers only in the area
indicated by the arrow (see the inset draw-
ing). Then, attach the ground wire to the
Handrail with a Silver Ground Screw (11).
Next, set the Handrail (18) on the console as-
sembly. Make sure that no wires are pinched.
Finger tighten a Console Bolt (22) with a 1/4"
Star Washer (21) into the Handrail, and then
start two 3/4" Screws (2) into the Handrail.
Tighten the Console Bolt and then the two
Screws; do not overtighten the Screws.
Attach the other Handrail (not shown) to the
console assembly in the same way. Note:
There are no wires on the other side.
8. Insert the Upright Wire (28) through a Handrail
Spacer (88) as shown. Attach the Handrail
Spacer to the Right Upright (36) with a 3/4"
Screw (2). Cut the plastic tie and remove the
strap from the Upright Wire.
Attach the other Handrail Spacer (not
shown) to the Left Upright (not shown) as
described above. Note: There is not a wire on
the left side.
9. While another person holds the Console Base
(26) near the right Handrail (18), connect the
console wire to the Upright Wire (28). See the
inset drawing. The connectors should slide
together easily and snap into place. If they do
not, turn one connector and try again. IF THE
CONNECTORS ARE NOT CONNECTED
PROPERLY, THE CONSOLE MAY BE DAM-
AGED WHEN THE POWER IS TURNED ON.
Insert the connectors into the Right Upright (36).
Attach the Console Base (26) to the Right
Upright (36) and the Left Upright (not shown)
with four Handrail Bolts (20) and four Handrail
Star Washers (19) (only one side of the treadmill
is shown). Start all four Handrail Bolts before
tightening any of them.
