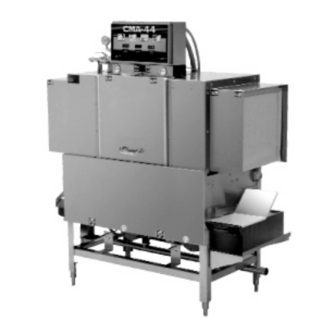

CMA Dishmachines CMA-44H Parts Manual
  1. Manuals
  2. Brands
  3. CMA Dishmachines Manuals
  4. Dishwasher
  5. CMA-44H
  6. Parts manual

CMA Dishmachines CMA-44H Parts Manual

Cma cma-44h: hardware guide
Hide thumbs Also See for CMA-44H:
Table of Contents

Advertisement

Quick Links

See also: Operation & Installation Manual
www.cmadishmachines.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CMA-44H and is the answer not in the manual?

Questions and answers

Related Manuals for CMA Dishmachines CMA-44H

Summary of Contents for CMA Dishmachines CMA-44H

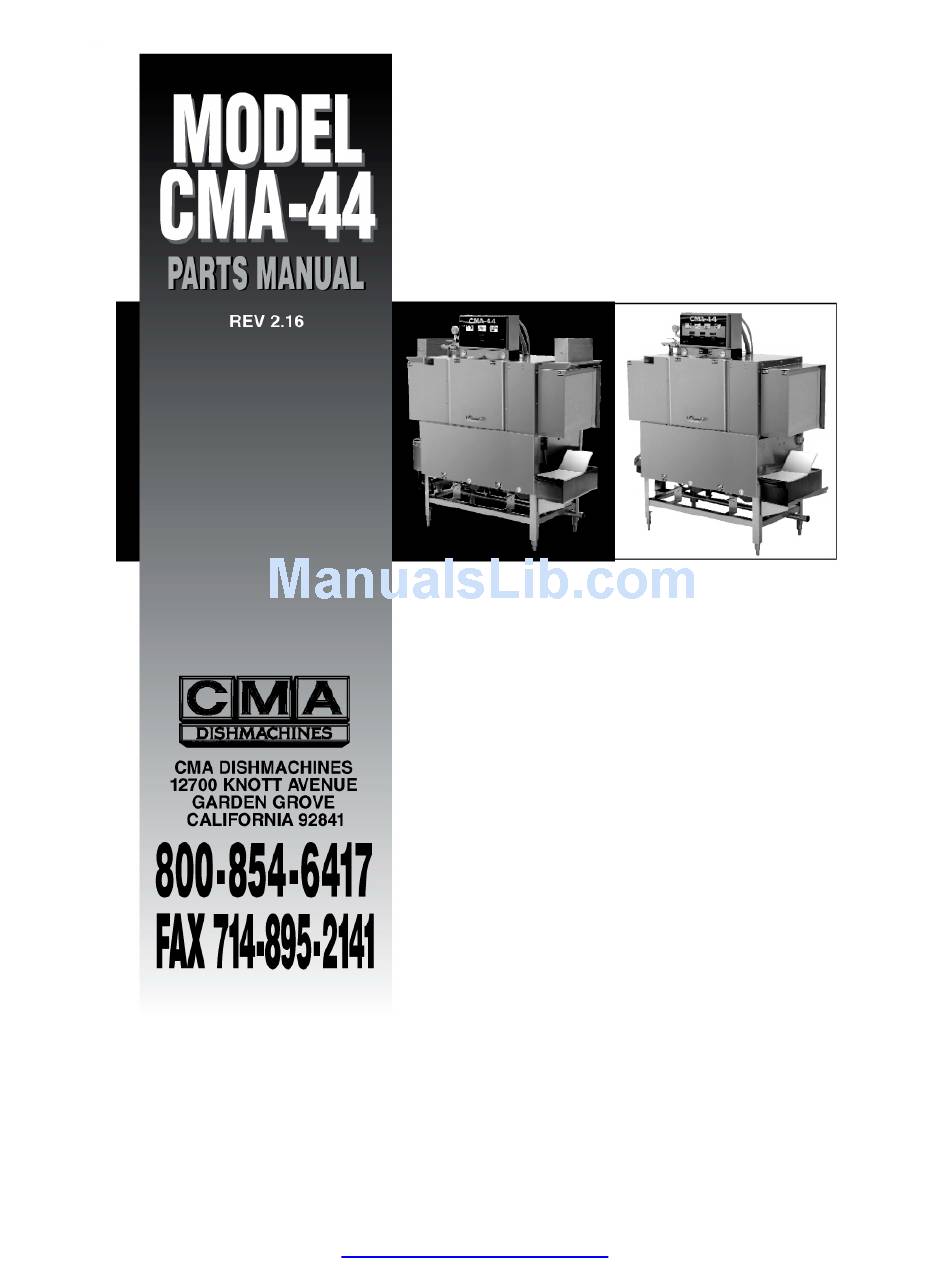

  • Page 1 www.cmadishmachines.com...

  • Page 2: Table Of Contents

    Rocker Arm Assembly ... 21 1.3.17. Rocker Arm Assembly (Old Models)... 22 1.3.18. Trip Switch Assembly – New Style... 23 1.3.19. Paddle Switch Assembly ... 24 TABLE LIMIT SWITCH INSTRUCTIONS (P/N 13469.20)... 25 DRAIN WATER TEMPERING KIT (OPTIONAL) ... 27 www.cmadishmachines.com CMA-44...

  • Page 3: Parts Manual

    Auto Fill Timer 230v 13463.10 Liquid Level Switch, SS – M-2 13501.85 Motor 1/3Hp 200-230/460 60hz 3ph 13507.65 Cma Bearing Assy (New Dec 2007) 13508.70 Heavy Duty Clutch Spring MODEL CMA-44 Part Manual rev. 2.16 02/12/08 Parts Manual DESCRIPTION Page...

  • Page 4: Initial Parts Kit (P/N 13996.80)

    Immersion Heater, 3Ph/1Ph, 208-230V, 10kW 13418.85 60-Second Timer Relay 13463.10 Liquid Level Switch, SS – CMA-44 13501.85 Motor 1/3Hp 200-230/460 60hz 3ph 13507.50 Cam Bearing, SS 13508.60 Swivel Hook Spring Assembly MODEL CMA-44 Part Manual rev. 2.16 02/12/08 DESCRIPTION Page...

  • Page 5: Exploded View Drawings

    1/4” Washer, SS 00912.00 1/4-20 Nylon Lock Nut 13906.00 Tray Track Rail 00914.10 1/4-20 x 5/8” Hex Head Bolt 13511.26 Overflow Chute Gasket MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 13511.06 L-R Overflow Chute 13927.06 L-R Heater Cover 13927.16 R-L Heater Cover 13910.82...

  • Page 6: Exploded View Drawings

    1/4” Washer, SS 00912.00 1/4-20 Nylon Lock Nut 13906.00 Tray Track Rail 00914.10 1/4-20 x 5/8” Hex Head Bolt 13511.26 Overflow Chute Gasket MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 13511.06 L-R Overflow Chute 13927.06 L-R Heater Cover 13927.16 R-L Heater Cover 13910.82...

  • Page 7: Cabinet Assembly (Effective 08/2001)

    Tray Track Rail 00914.10 1/4-20 x 5/8” Hex Head Bolt 13511.26 Overflow Chute Gasket 13511.06 L-R Overflow Chute 13511.16 R-L Overflow Chute MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 13408.82 Trip Switch Cover 13927.06 L-R Heater Cover 13927.16 R-L Heater Cover 13910.82...

  • Page 8: Control Box Assembly

    13003.70 Toggle Switch SPDT 20AMP 00470.10 Toggle Switch Rubber Boot 13003.62 Din Rail Mounting Bracket 17503.17 Control Box Sponge, Long MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 17503.18 Control Box Sponge, Short 00474.00 Toggle Switch Braket 00454.06 6-Pole Terminal Block 13418.20...

  • Page 9: Control Box Assembly (Old Models)

    Thermometer Bracket 00454.06 6-Pole Terminal Block 13003.70 Timer Relay Override Switch 00470.10 Toggle Switch Rubber Boot 13003.60 Starter DIN Rail MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 17503.17 Control Box Sponge, Long 17503.18 Control Box Sponge, Short 00421.87 Rocker Switch, White 00421.26...

  • Page 10: Curtain And Optional Vent System

    13901.12 CMA 44 Wash Curtain Support ('07) 00912.00 1/4-20 Nylon Lock Nut 13901.84 Hood Adapter Set 13901.30 Outer Wrap Shield Curtain Support MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 13705.00 Curtain Rod Short 13705.10 Curtain Rod Long 00914.10...

  • Page 11: Curtain And Optional Vent System (Old Models)

    Double Curtain Splash Guard Bracket 13705.00 Curtain Rod, Short 13705.10 Curtain Rod, Long 13901.84 Hood Adapter Set MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 13704.16 Dual Curtain Holder (Right to Left) 13704.36 Dual Curtain Holder (Left to Right) 13704.46...

  • Page 12: Temperature Control System

    Liquid Level Switch, SS 13417.89 Thermostat 12KW Heater 03202.00 Thermometer 13463.50 Liquid Level Switch Shield * Includes P/N 13417.89 Thermostat w/c can be ordered separately MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 13416.10 Thermostat Bracket 13417.45 Heater Gasket 00901.00...

  • Page 13: Pump Assembly

    04204.00 Compression Nut, 2.5” 13916.40 Motor Support Bracket 00906.00 1/4-20 x 1/2” Hex Bolt 00922.00 1/4” Lock Star Washer MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM REQ’D 00924.00 1/4” SS Washer 00912.00 1/4-20 Nylon Lock Nut 00921.00 3/8-16 x 3/4” SS Hex Head Bolt 13829.00...

  • Page 14: Drain System Assembly

    Drain Manifold 20500.06 Waste Drain Valve 01317.17 1-1/2” x 2” No Hub 03001.82 Drain Pipe Support Bracket 50109.00 Hose Clamp MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 00912.00 1/4-20 Lock Nut 00924.00 1/4“ Washer, SS 13024.00 Dynamite Plug, 2”...

  • Page 15: Plumbing System Assembly (Auto-Fill)

    00781.00 3/4” x 3-1/2” Nipple, Brass 00749.00 Coupling 3/4” Brass 01525.06 Plumbing Support Bracket 00710.50 3/4” Vacuum Breaker*** MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 00735.00 3/4” Vacuum Breaker Repair Kit 00735.60 3/4” Vacuum Breaker Bonnet 00739.50 Vacuum Breaker Cap 00421.51...

  • Page 16: Plumbing System Assembly (Final Rinse)

    1/2” Vacuum Breaker Repair Kit 04204.00 Compression Nut, 2.5” 00421.51 6-32 x 1/4” SS Panhead Screw 00739.50 Vacuum Breaker Cap MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM REQ’D 00743.10 1/2” Tee, F x F x F 03614.00 1/2” Close Nipple, Brass 13602.20...

  • Page 17: Plumbing System Assembly (Old Models)

    1/2” Tee, F x F x F 01525.06 Plumbing Support Bracket 13610.30 1/2” Union, SS *Includes Items 2, 3 and 4. **Includes Items 7A, 7B, 25C and 25D. MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 00747.30 1/2” x 3” SS Nipple 13669.60 Mixing Chamber, 1/2”...

  • Page 18: Wash System Assembly

    Final Rinse Spray Jets, SS 13618.00 1/2” Coupling 00721.20 1/2" Jamb Nut, Brass 13629.00 1/2" Close Nipple, SS *Includes Item 7A MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 13630.00 1/2”F x F x F Tee, SS 13307.00 Final Rinse Tube, 23-1/2”...

  • Page 19: Wash System Assembly (Old Models)

    00721.20 1/2" Jamb Nut, Brass 13629.00 1/2" Close Nipple, SS 13630.00 1/2”F x F x F Tee, SS *Includes Item 7A MODEL CMA-44 Part Manual rev. 2.16 02/12/08 ITEM DESCRIPTION REQ’D 13307.00 Final Rinse Tube, 23-1/2” 13628.00 1/2" 90° Elbow, F x F, SS 13301.26...

  • Page 20: Rocker Arm Assembly

    1” ID Brass Washer 13509.12 CMA 44 Rocker Shaft Bearing 13510.10 Bearing Shaft 00922.00 1/4" Lock Star Washer 00914.00 1/4-20 x 3/4" Hex Head Bolt MODEL CMA-44 Part Manual rev. 2.16 ITEM REQ’D 13808.00 13809.00 00912.00 13514.85 13515.00 13514.82 13514.84 13521.50...

  • Page 21: Rocker Arm Assembly (Old Models)

    00922.00 1/4" Lock Star Washer 00914.00 1/4-20 x 3/4" Hex Head Bolt 13808.00 1/2-13 x 3-1/2” 13809.00 1/2-13 Nylon Lock Nut *Includes Items 2 through 8. MODEL CMA-44 Part Manual rev. 2.16 ITEM REQ’D 00912.00 13514.85 13515.00 13514.82 13514.84 13521.50 13520.00...

  • Page 22: Trip Switch Assembly - New Style

    Reed Switch 13408.63 Reed Switch Bracket 00965.00 6-32 Nylon Lock Nut 00924.00 ¼” SS Washer 00906.00 ¼” –20 x ½” Hex Head Bolt 00912.00 ¼” – 20 Nylon Lock Nut MODEL CMA-44 Part Manual rev. 2.16 DESCRIPTION DESCRIPTION 02/12/08 Page...

  • Page 23: Paddle Switch Assembly

    13409.87 Paddle Support Brackets 00557.56 Kynar Reed Switch 13409.30 PS Reed Switch Bracket 00914.00 1/4-20 x 3/4" Hex Head Bolt 00912.00 1/4-20 Nylon Lock Nut MODEL CMA-44 Part Manual rev. 2.16 ITEM REQ’D 00109.00 13409.85 13409.84 03801.00 00557.70 00927.00 02/12/08...

  • Page 24: Table Limit Switch Instructions (P/N 13469.20)

    Parts Manual 2. Table Limit Switch Instructions (P/N 13469.20) MODEL CMA-44 Part Manual rev. 2.16 02/12/08 Page...
  • Page 25 (see note 1 of the wiring diagram). Then, attach the other ends of the two wires to the terminal block (it does not matter which table limit switch wire you attach to either terminal because it is only a loop). MODEL CMA-44 Part Manual rev. 2.16 02/12/08 DESCRIPTION 00400.00 Conduit 3/8 sealtite 00401.00...

  • Page 26: Drain Water Tempering Kit (Optional)

    Parts Manual 3. Drain Water Tempering Kit (Optional) MODEL CMA-44 Part Manual rev. 2.16 02/12/08 Page...
