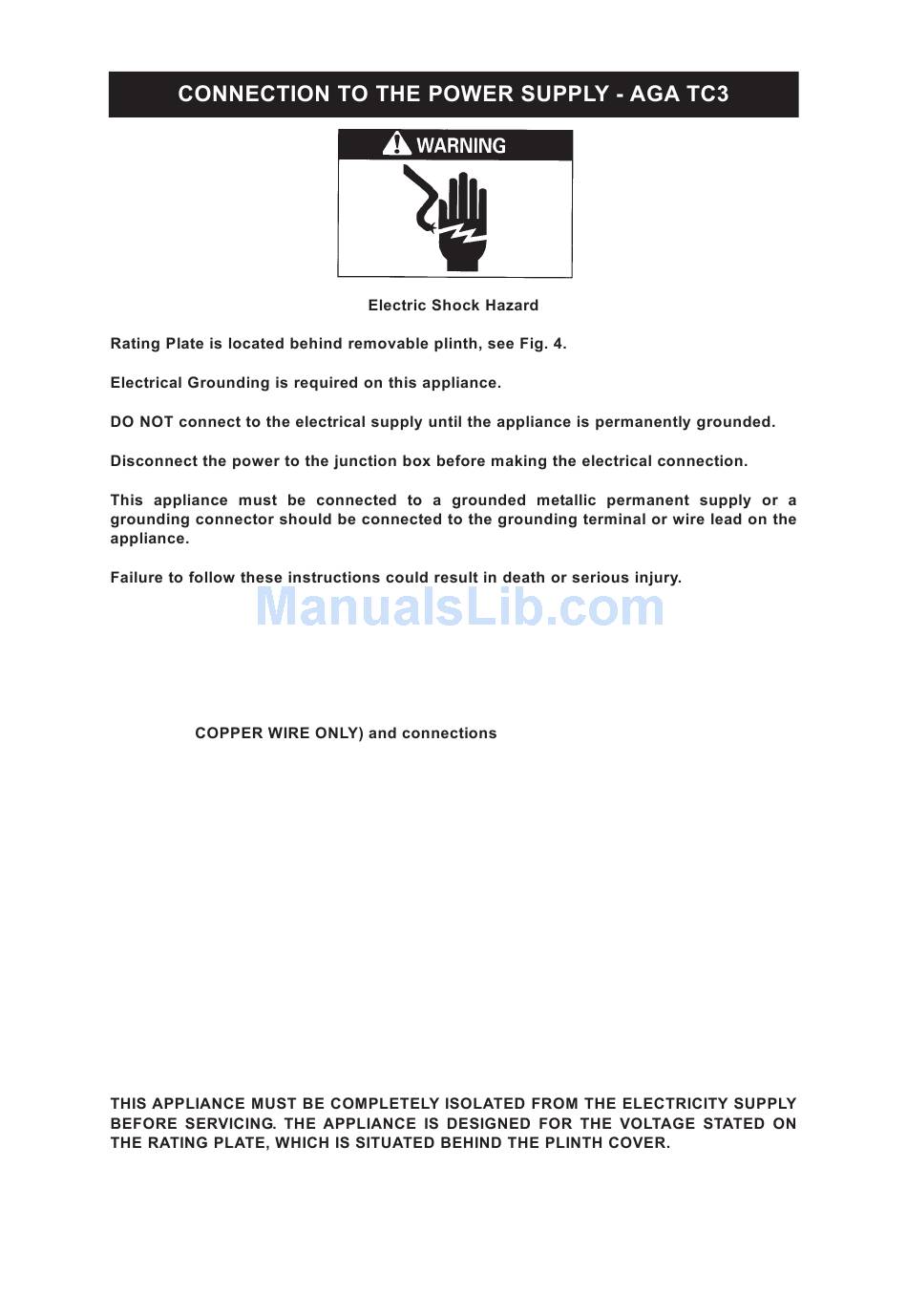

AGA TOTAL CONTROL TC3 Installation Manual page 8

This range must be supplied with a 240V, 60Hz power supply and connected to an individual,
properly grounded branch circuit protected by a circuit breaker or time delay fuse. At 240V, it has
a maximum load of 36 amps. Electric hook-up must be done by a licensed electrician. This unit
must be installed according to local code, or in the absence of local codes, the National Electrical
Code for the country of installation.
Wire sizes (
(36-amperes).
Product installation requires a separate (not shared) 240v/40 amp circuit protected by an
l
appropriate branch circuit supply.
A time-delay fuse or circuit breaker is required.
l
The service cord provided on your product is fitted with a standard four (4) conductor type
l
14-50P plug, (matching receptacle 14-50R).
l The wiring diagram is located on Page 18.
The method of connection to the mains electricity supply must facilitate complete electrical
isolation of the appliance.
The mains connection and isolation should not be positioned above the range and must be
positioned within the area defined in Fig. 4, Page 10.
must conform with the rating of the range
8
