8. Using the stay rod nut adjusting tool, carefully lower the top plate adjusting nuts until the top
plates sits at the required height, making sure that the top sits level and matches the height
of the AGA TC3. (See Fig. 14).

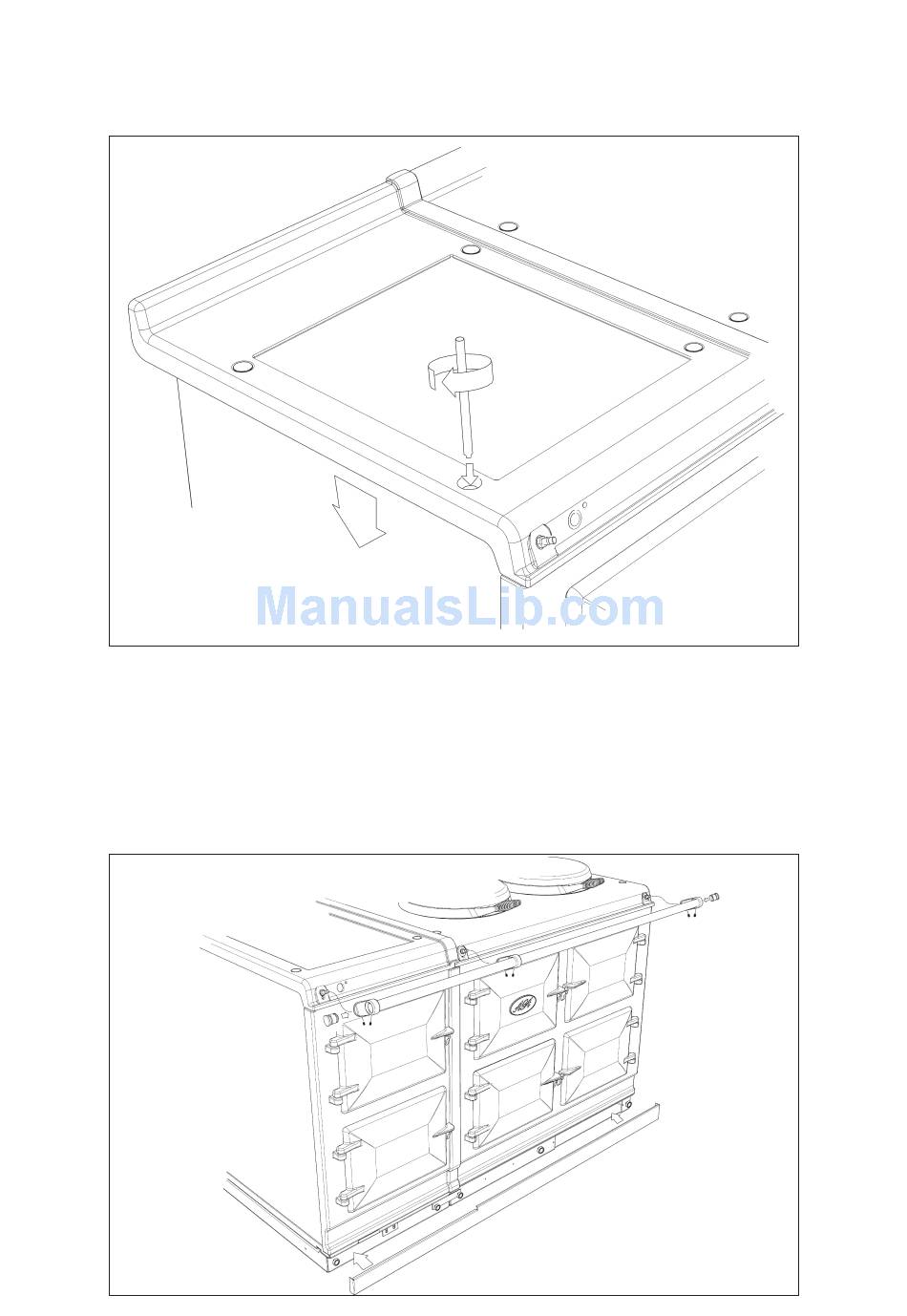

Fig. 14
9. Slide the complete handrail over the left hand, right hand and centre fixing studs. Once the
assembly has been fitted to the AGA appliance, fit the handrail endcaps (ensuring the
handrail is evenly spaced at each end). The endcaps should be carefully pushed into place
until they sit flush with the outside face of each bracket.
The handrail can now be locked into place using the grub screws on the underside of the
handrail brackets.
Finally fit plinth facia onto magnets positioned on plinth, ensuring the facia sits squarely and
centrally.
