AGA TOTAL CONTROL TC3 Installation Manual page 5

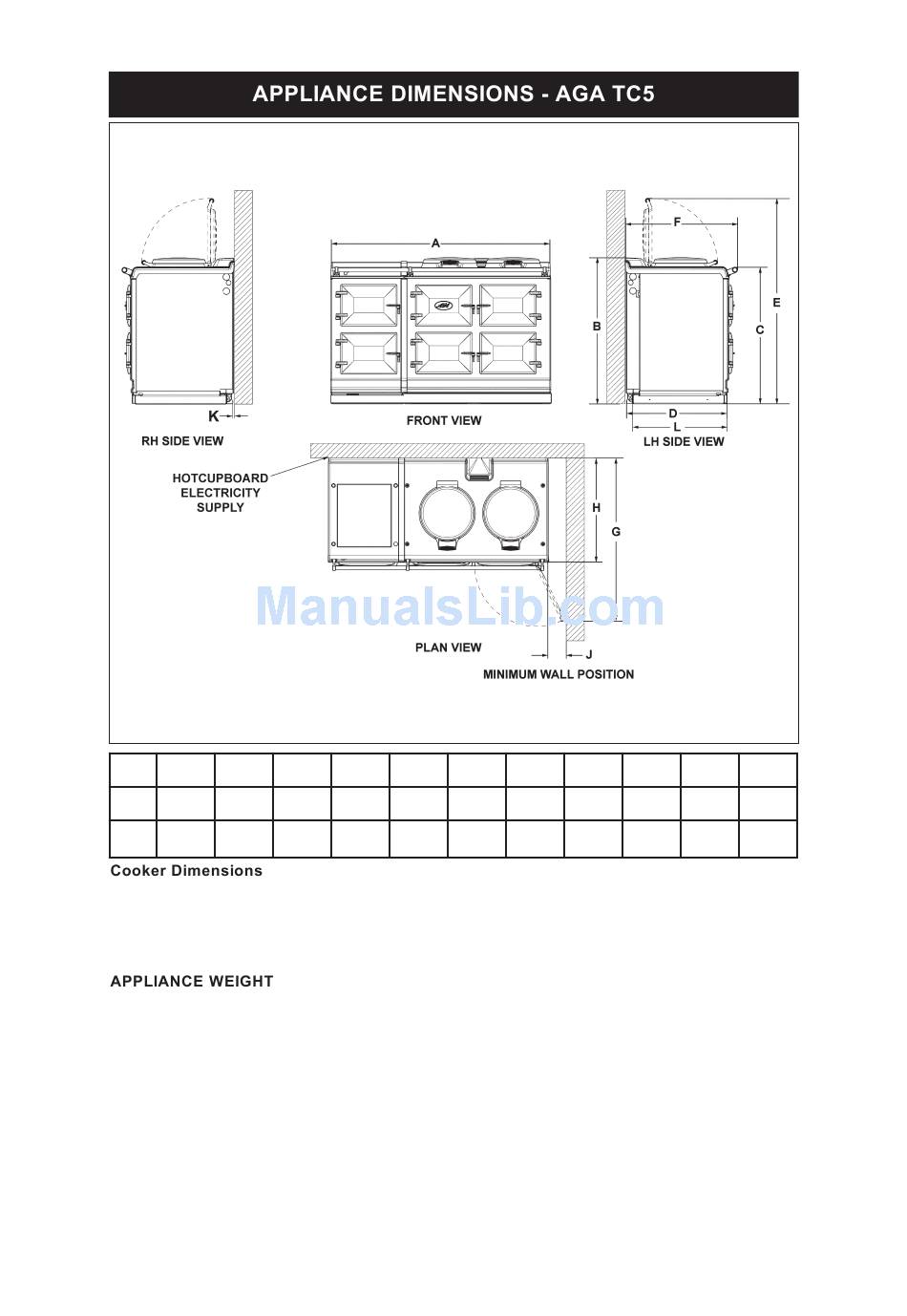

Fig. 2
A B
mm 1478 945
ins 58 13 37 3 35
/ /
16 16
When surveying for a cooker installation the actual clearance required for the 'body' of the
appliance should be increased by 10mm beyond the figures quote above. This allows safe
margin to take into account the natural dimensional variations found in major castings. In
particular the width across the appliance recess could be critical.
Model: AGA Total Control (TC3) - 816 lbs (370 Kg)
Hotcupboard - 110kg
C D E
910 680 1385
26 3 54 1 29
13 / / /
4 2
16
5
F G H
760 1145 698
45 1 27 1
15 / / /
16 2
16
DESN 516561
J K L
116 10 634
31
4 9 3 24 /
/ /
32
16 8
