AGA TC3 Assembly Manual

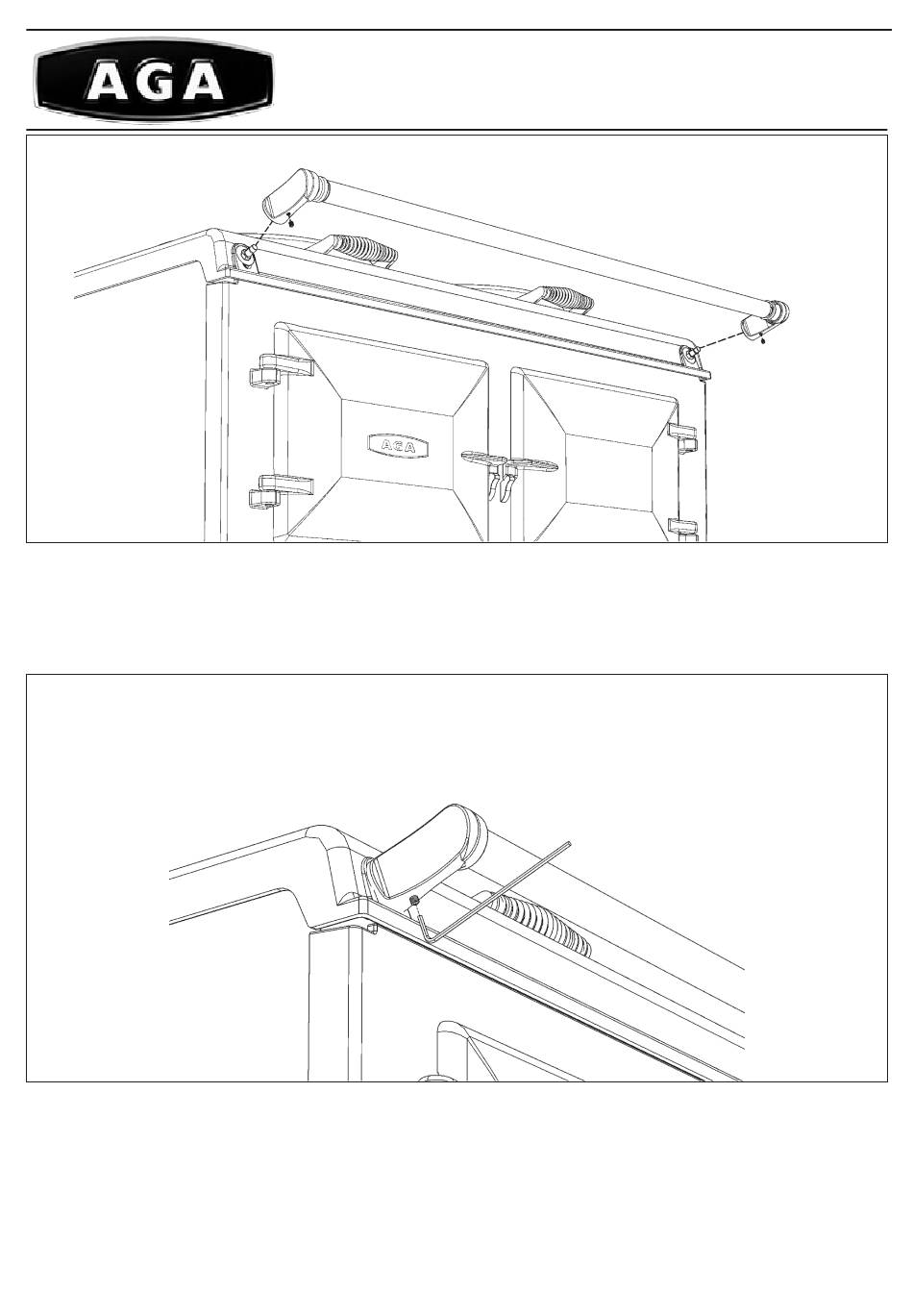

Before commencing fitment of the handrail to the AGA it must first be assembled.
Selecting the two vinyl end caps these must be positioned onto each end of the handrail. Next fit the handrail end
brackets over the vinyl end caps, using a rotational motion to seat them fully. Once the assembly is complete it can now
be slid into place over the handrail fixing studs which are already attached to the AGA top plate.
Once the handrail assembly has been positioned squarely onto the AGA the grub screws located on the underside of
each handrail bracket can now be tightened using the 2.5mm allen key provided. This will lock the handrail assembly in
place.
AGA TC3 (USA/CAN)
HANDRAIL ASSEMBLY GUIDE
04/12 EINS 516387
