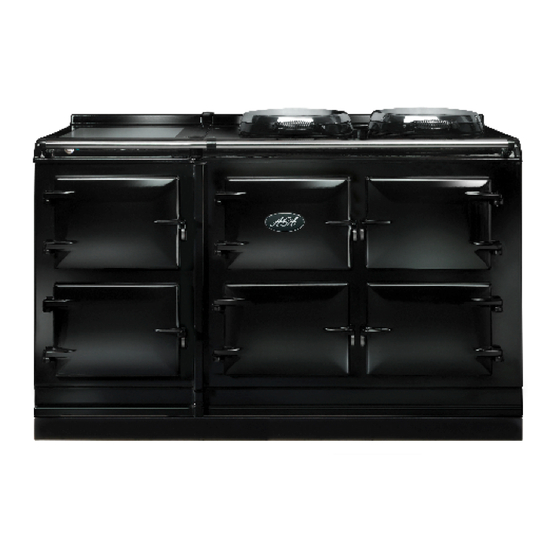

AGA TOTAL CONTROL TC3 Installation Manual
  1. Manuals
  2. Brands
  3. AGA Manuals
  4. Cookers
  5. TC3
  6. Installation manual
AGA TOTAL CONTROL TC3 Installation Manual

AGA TOTAL CONTROL TC3 Installation Manual

Hide thumbs Also See for TOTAL CONTROL TC3:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using , User Manual and Installation Instructions
AGA TOTAL CONTROL
Model No's: TC3 & TC5
Installation
Guide
REMEMBER: when replacing a part on this appliance, use only spare parts that
you can be assured conform to the safety and performance specification that we
require. Do not use reconditioned or copy parts that have not been clearly
authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE COMMENCING SITE SURVEY
OR INSTALLING THIS APPLIANCE.
For use in GB and IE
09/13 EINS 516350

Advertisement

Table of Contents
loading

Related Manuals for AGA TOTAL CONTROL TC3

Summary of Contents for AGA TOTAL CONTROL TC3

  • Page 1 AGA TOTAL CONTROL Model No’s: TC3 & TC5 Installation Guide REMEMBER: when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA.

  • Page 2: Table Of Contents

    APPLIANCE DIMENSIONS - AGA TC5 (HOTCUPBOARD OPTION) CLEARANCES POWER SUPPLY - AGA TC3 POWER SUPPLY - AGA TC5 (HOTCUPBOARD OPTION) MAINS CABLE ROUTING - AGA TC3 MAINS CABLE ROUTING - AGA TC5 (HOTCUPBOARD OPTION) VENT PIPE CONNECTION - AGA TC3...

  • Page 3: Health And Safety

    Any alteration that is not approved by AGA could invalidate the approval of the appliance, operation of the warranty and could also affect your statutory rights. In the interests of safety and effective use, please read the following before using your new AGA appliance.

  • Page 4: Appliance Dimensions - Aga Tc3

    10mm beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations found in major castings. In particular the width across the appliance recess could be critical. APPLIANCE WEIGHT Model: AGA Total Control (TC3) - 370kg...

  • Page 5: Appliance Dimensions - Aga Tc5

    10mm beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations found in major castings. In particular the width across the appliance recess could be critical. APPLIANCE WEIGHT Model: AGA Total Control (TC3) - 370kg Hotcupboard - 110kg...

  • Page 6: Clearances

    It is essential that the base or hearth on which the cooker stands should be level and be capable of supporting the total weight of the appliance. The base of the built-in AGA plinth must be level and sit above finished floor height for service access.

  • Page 7: Power Supply - Aga Tc3

    The mains connection point must be accessible within the areas shown in Fig 3A, Page 8 for cable routing options. For 2 or 3 phase installations an optional adaptor kit must be obtained (Part No. AE4M280354). POWER SUPPLY - HOTCUPBOARD (AGA TC5) THE HOTCUPBOARD ATTACHMENT REQUIRES A INDEPEDENT SINGLE PHASE POWER SUPPLY.

  • Page 8: Mains Cable Routing - Aga Tc3

    MAINS CABLE ROUTING - AGA TC3 MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY SOCKET Fig. 3 DESN 516103 THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN Fig. 3A...

  • Page 9: Mains Cable Routing - Aga Tc5

    MAINS CABLE ROUTING - AGA TC5 (HOTCUPBOARD OPTION) HOTCUPBOARD POWER SUPPLY MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY Fig. 4 DESN 516446 SOCKET THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN Fig.
  • Page 10 Reseal pipe connection with aluminium tape. When installing a AGA TC5 which is venting to the left hand side, care must always be taken to ensure the vent pipe is fully lagged (using insulation provided). Where the vent pipe passes behind the hotcupboard, ensure that the mains cable is kept away from the hot surface of the vent pipe.
  • Page 11 OVEN VENTING SYSTEMS See Fig. 6 The appliance oven venting pipe can be achieved up to a maximum length of 6 metres, through an outside wall. Great care must be taken in all-timber houses. If the oven vent pipe passes through combustible material, there must be an air gap of at least 25mm around the pipe and preferably wrapped with insulation material.

  • Page 12: Hotcupboard Installation

    NOTE: The AGA TC5 hotcupboard should arrive with the top plate in a jacked up position. This is to allow the complete appliance to be slid onto its plinth when alongside the AGA TC3 without the top plates clashing. The hotcupboard top plate should then be wound down to its correct height once the appliance is in its final position.
  • Page 13 2. Position the plinth alongside the AGA Total Control leaving no gap between the two plinths (See Fig. 9). Check with a spirit level that the plinth level is correct, and also check height differential between the hotcupboard plinth and Total Control plinth is correct (11mm). If necessary, use shims in each corner to level the plinth.
  • Page 14 4. Run a straight edge along the front of the AGA Total Control plinth, to ensure the front face of both plinths sit squarely against the straight edge. (See Fig. 11) When satisfied both plinths sit squarely, jacking screws can be tightened until they just make contact with the AGA Total Control plinth, and locking screws can now be tightened.
  • Page 15 Fig. 13 DESN 516552 7. The hotcupboard top plate is set 5mm higher than the AGA Total Control top plate. This is to prevent damage to the enamel during installation. Lower the top plate using the adjusters (See Figs. 14 and 15).
  • Page 16 9. Slide the complete handrail assembly over the left hand and centre fixing studs. Once the assembly has been fitted to the AGA appliance, fit the handrail endcaps (ensuring the handrail is evenly spaced at each end). The endcaps should be carefully pushed into place until they sit flush with the outside face of each bracket.

  • Page 17: Handrail Connection - Aga Tc3

    Fig. 16 DESN 516557 HANDRAIL CONNECTION - AGA TC3 Fig. 17 DESN 516560 Handrail brackets, endcaps and handrail require assembly. Locate endcaps onto handrail, place brackets over endcaps and then slide complete assembly onto locating studs. Once assembly is correctly located, lock into position with grub screws (located on underside...

  • Page 18: Wiring Diagram - Aga Tc3

    WIRING DIAGRAM - AGA TC3 Fig. 18...

  • Page 19: Wiring Diagram - Aga Tc5 (Hotcupboard Option)

    WIRING DIAGRAM - AGA TC5 (HOTCUPBOARD OPTION) COLOUR KEYS CAUTION: LABEL ALL WIRES PRIOR TO BR - BROWN DISCONNECTION, WHEN SERVICING CONTROLS BL - BLUE WIRING ERRORS CAN CAUSE IMPROPER AND GR - GREEN DANGEROUS OPERATION. OR - ORANGE BK - BLACK VERIFY PROPER OPERATION AFTER SERVICING Fig.

  • Page 20: Aga Total Control Post Installation Checklist

    During warm-up period, check customer’s handset handshakes and instruct customer on it’s application and operation. Attach warning hanger (EGLL516660) to AGA Total Control handrail when installation is complete. Advise customer to remove and read warning hanger. Guide customer through the Users Instructions of the appliance, offering best practices on oven maintenance, energy usage, enamel cleaning (boiled vegetable water staining on enamel etc.).
  • Page 24 For further advice or information contact your local AGA Specialist With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time Manufactured by...
