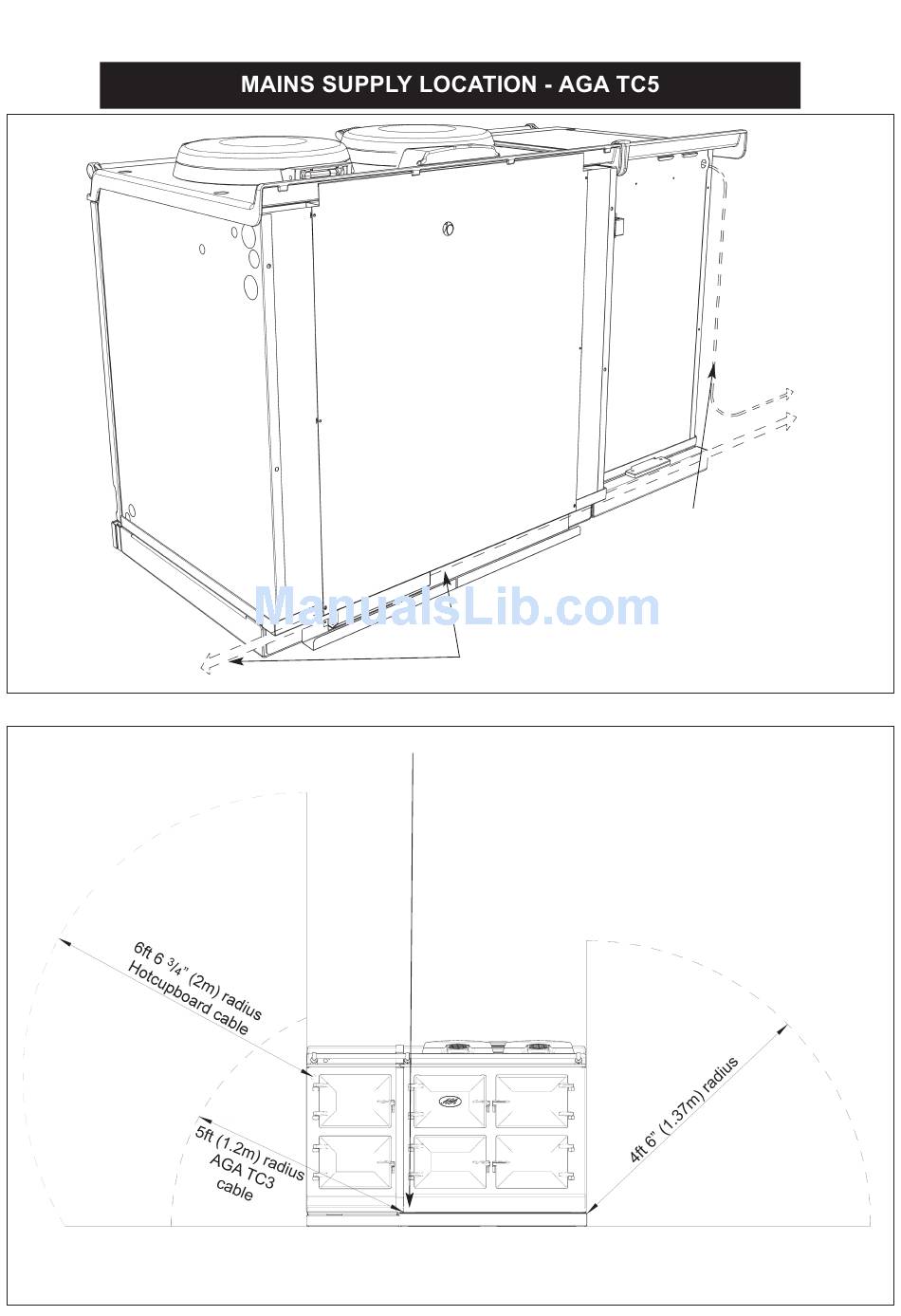

Fig. 5
RATING LABEL LOCATED BEHIND PLINTH, PULL TO REMOVE,
THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN
Fig. 5A
MAINS CABLE FED FROM CONTROL
TRAY LEFT OR RIGHT EXIT
THROUGH DUCTING DEPENDENT
UPON POSITION OF SUPPLY
SOCKET
11
HOTCUPBOARD
POWER SUPPLY
DESN 516562
DESN 516590
