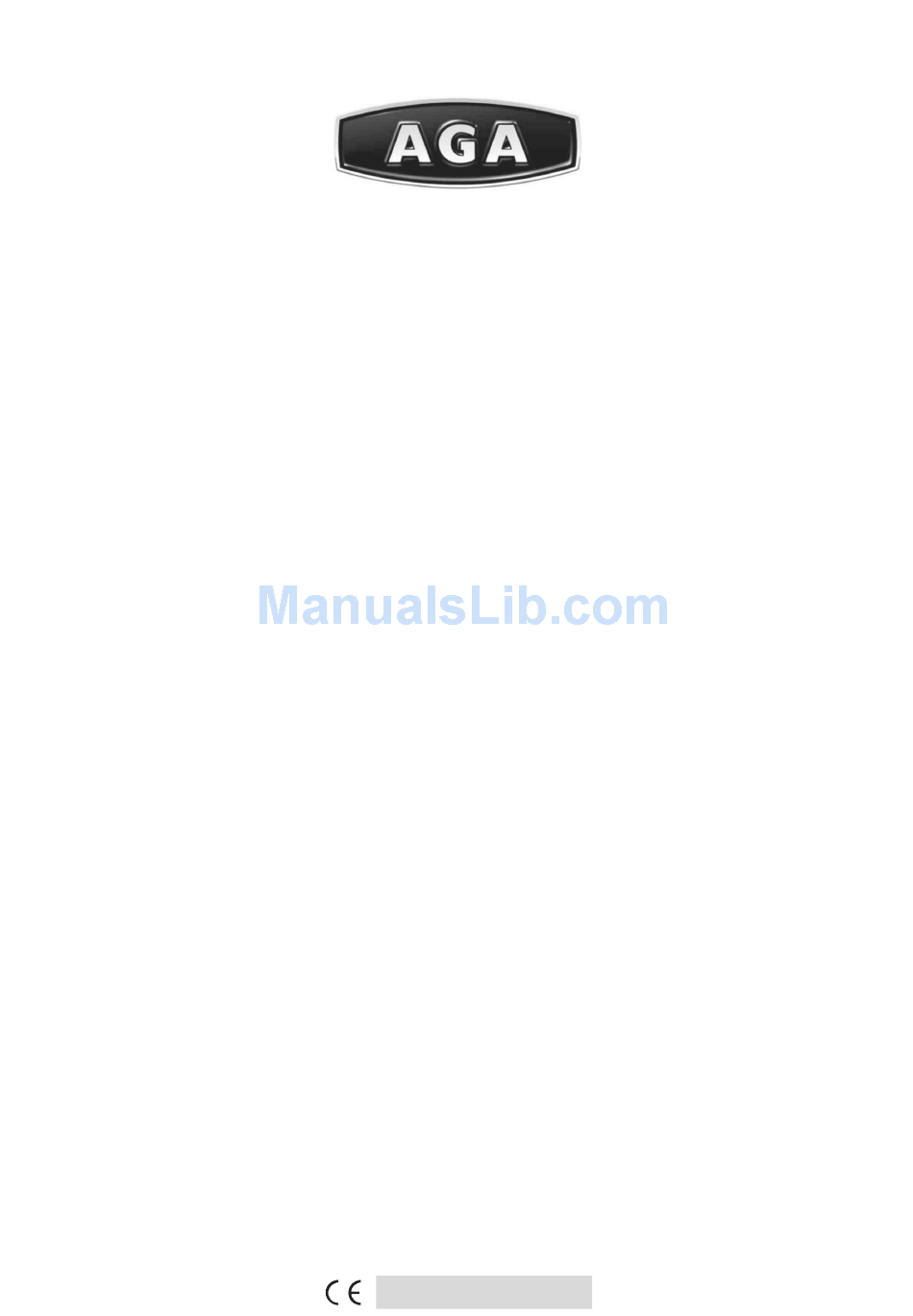

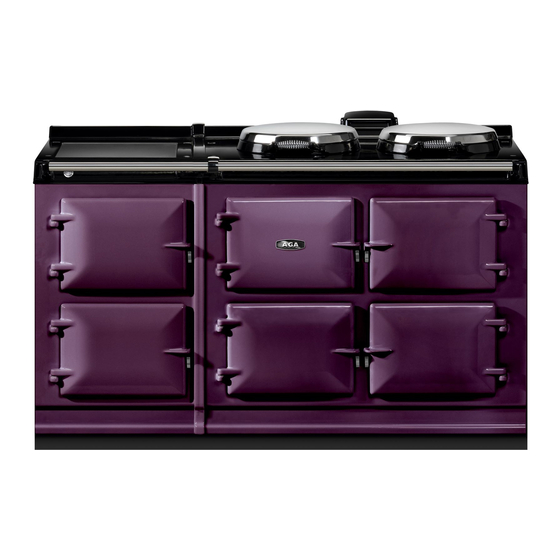

TC/DC INTEGRATED MODULE

(CERAMIC HOB)

User Guide &

Installation Instructions

Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the
safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly
authorised by AGA.
PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING THIS APPLIANCE AND
KEEP IN A SAFE PLACE FOR FUTURE REFERENCE
For use in GB and IE
07/16 EINS 517376

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TC3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGA TC3

Summary of Contents for AGA TC3

  • Page 1: Ceramic Hob

    Remember, when replacing a part on this appliance, use only spare parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA. PLEASE READ THESE INSTRUCTIONS BEFORE INSTALLING THIS APPLIANCE AND...

  • Page 3: Table Of Contents

    Contents 1. Health and Safety 2. Introduction 3. Overview Control Panel Ceramic Hob The Grill (Top Oven) The Ovens Simmering Oven 4. Cooking Guide 5. Cleaning & Caring for your Cooker 6. Installation Introduction 7. Location Specifications 8. Electrical Connection 9.

  • Page 5: Health And Safety

    1. Health and Safety CHILDREN SHOULD BE KEPT AWAY FROM The appliance can be used by children aged from 8 THE APPLIANCE AS SOME SURFACES CAN years and above and persons with reduced physical, BECOME HOT TO THE TOUCH. sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or The appliance may contain some of the materials that are instruction concerning use of the appliance in a safe way...

  • Page 6: Introduction

    ‘parent’. At the same time giving a flexible alternative during for instance, the warm summer months when you may wish to turn off your main AGA cooker. Your appliance has a ceramic hob, grill and two electric ovens.

  • Page 7: Overview

    3. Overview FAST RESPONSE - HEATERS CONTROL PANEL GRILL PAN WITH GRID GRID SHELF GRILL & SIMMERING OVEN GRID SHELF FAN OVEN ROASTING TIN (BAKING TRAY NOT SHOWN) FOR USE IN BOTH OVENS Fig. 3.1 DESN 511228 C...

  • Page 8: Control Panel

    Control Panel HOB ELEMENTS FRONT REAR REAR FRONT SIMMERING LOWER GRILL LEFT LEFT RIGHT RIGHT OVEN OVEN LOWER OVEN OVEN NEON NEON NEON Fig. 3.1a DESN 515707 A The HOB ELEMENT KNOBS can be rotated in either direction: • Clockwise from low setting in steps 1- 6 to high setting.

  • Page 9: Ceramic Hob

    Ceramic Hob WARNING: To get the best out of your hob DO NOT USE THE HOB IF IT IS CRACKED. • Ensure that the pan covers the heating area. DO NOT PLACE ALUMINIUM FOIL ON THE HOB • Switch off the plates when cooking is complete. SURFACE.

  • Page 10: The Grill (Top Oven)

    The grill pan supplied is not designed to fit in the lower oven. If you also have an AGA DO NOT use the small roasting tin provided with the AGA in the Module. Please use utensils provided and place on the grid shelves.

  • Page 11: Simmering Oven

    Points to bear in mind when preparing food. Extra care must be taken when warming bone china - • For best results use the AGA Stainless Steel use the lowest setting. cookware.

  • Page 12: Cooking Guide

    4. Cooking Guide Cooking Hints Lower Oven (Fanned) • Both ovens must be pre-heated until the light • The lower oven has a fan, which means the air is extinguishes. circulated to create an even temperature throughout the oven. • The guidelines are for cooking after the oven(s) have reached the desired temperature.
  • Page 13 Lower Oven (Fanned) - Cooking Table Food Setting ºC Shelf Position Approximate Cooking Time Roasting Meat Beef 2 or 3 Rare 35 mins per kg plus 15 mins 2 or 3 Medium 45 mins per kg plus 20 mins 2 or 3 Well Done 55 mins per kg plus 30 mins Lamb...

  • Page 14: Cleaning & Caring For Your Cooker

    Always SWITCH OFF at mains before cleaning. Enamelled Top and Front Plate DO NOT use a steam cleaner to clean this The easiest way to clean the AGA top plate and front cooker. plate is to mop up spills as they happen. VEA approved AGA Enamel Cleaner can be purchased at www.
  • Page 15 TIP: Clean your Module regularly, Preferably every time you use it. Fan oven - back panel only IMPORTANT: AGA recommend Vitreous Enamel This special enamel has a continuous cleaning action, Association approved cleaners for cleaning the vitreous which works best if a pattern of low and high temperature enamelled surfaces of this product.

  • Page 16: Installation Introduction

    • The data plate is situated in the centre vent slot near the base of the front plate. • The appliance is supplied with and installed adjacent to the left-hand side of an AGA Total Control or Dual Control. • Installation of the Module must, therefore, be in conjunction with the build instructions of the ‘parent’...

  • Page 17: Location

    7. Location Refer to Fig. 7.1 Any adjacent walls that project above the height of the hob must be of heat resistant material. The side wall above the hob shall be greater than 60 mm from the cooker. Surfaces over the top of the cooker must not be closer than 650 mm.

  • Page 18: Specifications

    Specifications AGA TOTAL (TC3) / DUAL CONTROL (DC3) WITH TC/DC MODULE (TC3M / DC3M) 1589 1388 1145 Fig. 7.1 DESN 516275 Note: When surveying for a cooker installation the actual clearance required for the ‘body’ of the appliance should be increased overall by 10mm beyond the figures quote above.
  • Page 19 Specifications AGA TOTAL (TC5) / DUAL CONTROL (DC5) WITH TC/DC MODULE (TC5M / DC5M) 2084 1388 1145 Fig. 7.2 DESN 516857 Note: When surveying for a cooker installation the actual clearance required for the ‘body’ of the appliance should be increased overall by 10mm beyond the figures quote above.

  • Page 20: Electrical Connection

    Single Phase Connection Remember that an excess of cable length is required for The AGA Electric Module requires a 30/32 amp power the possible withdrawal of the cooker. supply fitted in conjunction with a double pole isolator with...
  • Page 21 Electrical Connection THREE PHASE CONNECTION Minimum 2.5 mm² and must comply with the latest editions of the local and national wiring regulations DESN 513371 Remove cover (4 screws) to gain access to the mains terminal DESN 513373 A Fig. 8.2...

  • Page 22: Installation Sequence & Procedure

    4.5 mm (See Fig. 9.2). PLEASE NOTE: When fitting a Module plinth to an AGA TC5 or AGA DC5 the 2 adjustment screws should be screwed in from the outside (until they are fully in). The screw heads will set a gap of 4.5 mm between plinths.
  • Page 23 DESN 517427 Fig. 9.1 4.5 mm SCREW HEAD DEPTH Fig. 9.2 DESN 516859 FOR AGA TC3/DC3 + MODULE ONLY 3/8” (11mm) height di erential Module plinth base Fig. 9.3 DESN 516276...
  • Page 24 FOR AGA TC5/DC5 + MODULE ONLY HOTCUPBOARD PLINTH BASE MODULE PLINTH BASE 4.5 mm GAP 11mm HEIGHT DIFFERENTIAL Fig. 9.4 DESN 516276 FOR AGA TC3/DC3 + MODULE ONLY DESN 516852 Fig. 9.5 FOR AGA TC5/DC5 + MODULE ONLY Fig. 9.6 DESN 516858...

  • Page 25: Installation Sequence & Procedure Continued

    Module plinth facia sits against the left hand Connect the mains wire to the terminal block at the side of the AGA Total Control or AGA Dual Control rear of the cooker (Electrical Connections). plinth facia leaving no gap between. Make sure that...
  • Page 26 DESN 516853 Fig. 10.1 DESN 516861 Fig. 10.2 DESN 516854 Fig. 10.3...
  • Page 27 DESN 516855 Fig. 10.4 DESN 516855 Fig. 10.5...

  • Page 28: Circuit Diagram

    11. Circuit Diagram                                      ...

  • Page 29: Servicing

    AGA tor an authorised distributor. • DO NOT alter or modify the cooker. Spare Parts To maintain optimum and safe performance, we recommend that only genuine AGA spare parts are used. These are available from most major spares stockists, including ourselves.
  • Page 32 For further advice or information contact your local AGA Specialist. With AGA Rangemaster’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliances described and illustrated at any time. Manufactured By...
