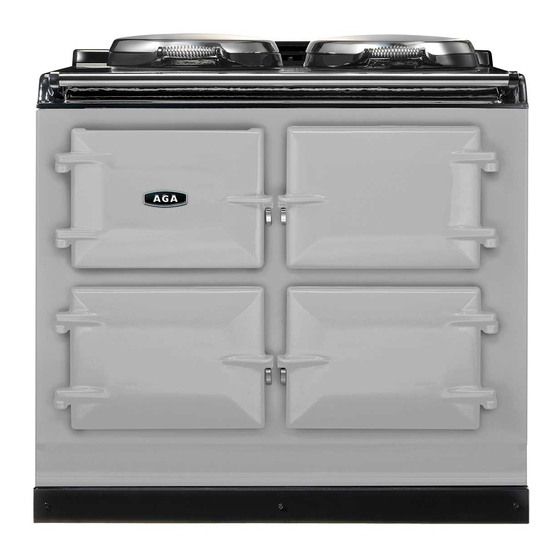

AGA TOTAL CONTROL TC3 Installation Manual
  1. Manuals
  2. Brands
  3. AGA Manuals
  4. Cookers
  5. TC3
  6. Installation manual

AGA TOTAL CONTROL TC3 Installation Manual

Hide thumbs Also See for TOTAL CONTROL TC3:

Advertisement

Quick Links

Download this manual See also: Instructions for Using, User Manual and Installation Instructions

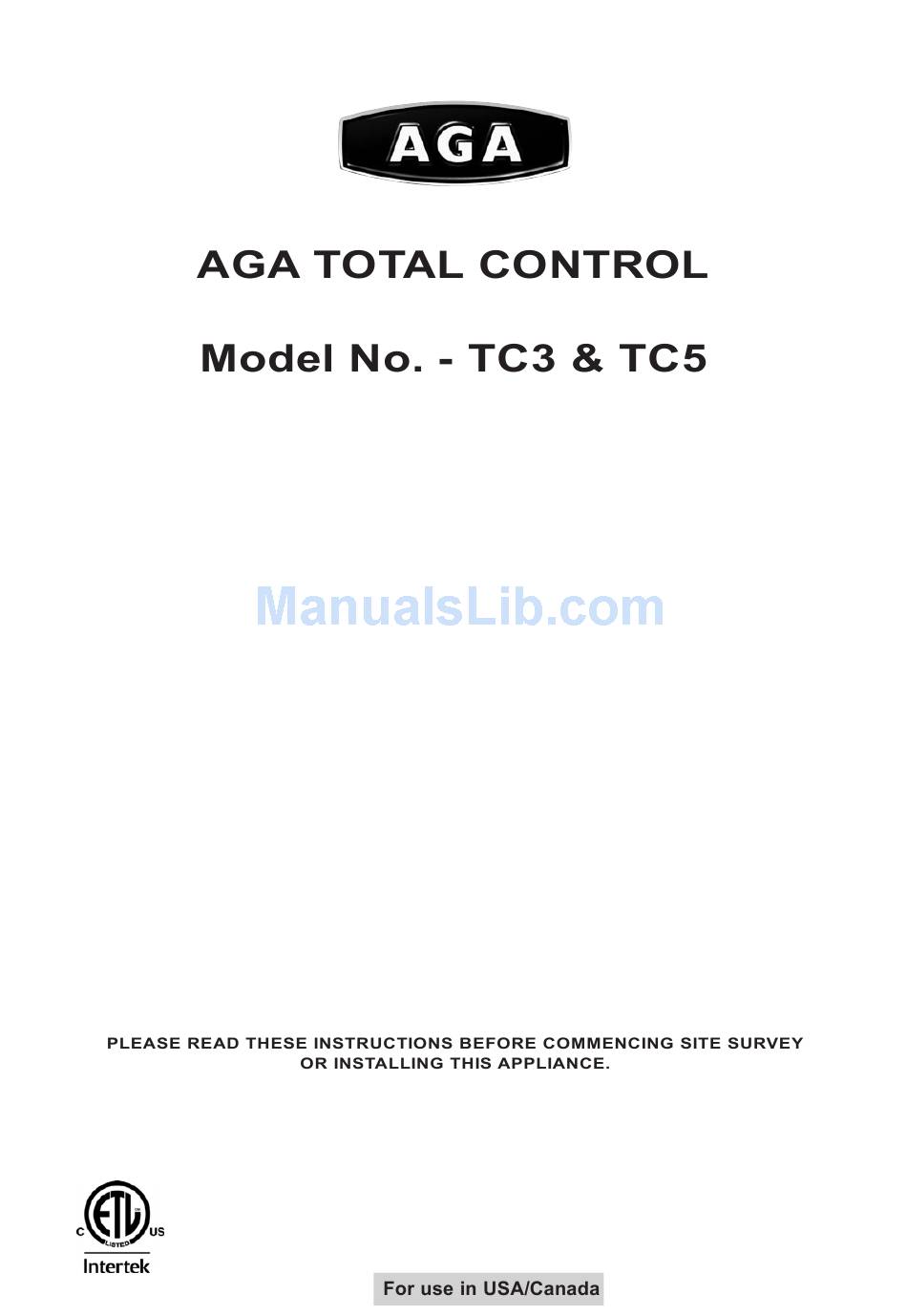

Installation
Guide
REMEMBER: when replacing a part on this appliance, use only replacement parts
that you can be assured conform to the safety and performance specification that
we require. Do not use reconditioned or copy parts that have not been clearly
authorised by AGA.
IMPORTANT :
SAVE INSTRUCTIONS FOR THE LOCAL INSPECTORS USE
CUSTOMER: KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE
3139291
11/12 EINS 516294

Advertisement

loading
Need help?

Need help?

Do you have a question about the TOTAL CONTROL TC3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AGA TOTAL CONTROL TC3

Summary of Contents for AGA TOTAL CONTROL TC3

  • Page 1 REMEMBER: when replacing a part on this appliance, use only replacement parts that you can be assured conform to the safety and performance specification that we require. Do not use reconditioned or copy parts that have not been clearly authorised by AGA. IMPORTANT : SAVE INSTRUCTIONS FOR THE LOCAL INSPECTORS USE...

  • Page 2: General Installation Requirements

    GENERAL INSTALLATION REQUIREMENTS APPLIANCE DIMENSIONS - AGA TC3 APPLIANCE DIMENSIONS - AGA TC5 INSTALLATION CONNECTING TO THE POWER SUPPLY - AGA TC3 POWER SUPPLY - HOTCUPBOARD (AGA TC5) MAINS SUPPLY LOCATION - AGA TC3 MAINS SUPPLY LOCATION - AGA TC5...
  • Page 3 (740mm). A wooden template (skate with castor wheels) of dimensions 39 ” (1005mm) x ” 740mm could be used to check if the AGA Total Control fully built appliance is able to fit through the property grounds and doors into its installation position in the kitchen. It must also be considered that the height of the appliance is 37 ”...
  • Page 4 3/8” (10mm) beyond the figures quoted above. This allows safe margin to take into account the natural dimensional variations found in major castings. In particular the width across the appliance recess could be critical. Model: AGA Total Control (TC3) - 816 lbs (370 Kg) 1135 lbs (515 Kg)
  • Page 5 10mm beyond the figures quote above. This allows safe margin to take into account the natural dimensional variations found in major castings. In particular the width across the appliance recess could be critical. Model: AGA Total Control (TC3) - 816 lbs (370 Kg) Hotcupboard - 110kg...
  • Page 6 It is essential that the base or hearth on which the range stands should be level and be capable of supporting the total weight of the range. The base of the built-in AGA plinth must be level and sit above finished floor height for service access.
  • Page 7 Fig. 3 DESN 516589...
  • Page 8 This range must be supplied with a 240V, 60Hz power supply and connected to an individual, properly grounded branch circuit protected by a circuit breaker or time delay fuse. At 240V, it has a maximum load of 36 amps. Electric hook-up must be done by a licensed electrician. This unit must be installed according to local code, or in the absence of local codes, the National Electrical Code for the country of installation.
  • Page 9 110/120V 60 Hz FLEXIBLE CORD AND PLUG PARALLEL TYPE. The appliance when installed, must be electrically grounded in accordance with local or regional codes. An electrical socket must be provided within 5 feet of the LH side of the appliance and easily accessible to the user to disconnect.
  • Page 10 RATING LABEL LOCATED BEHIND PLINTH, PULL TO REMOVE THE MAINS SUPPLY CONNECTION AND ISOLATION POINT MUST BE WITHIN THE ZONE SHOWN Fig. 4 DESN 516295...
  • Page 11 HOTCUPBOARD POWER SUPPLY MAINS CABLE FED FROM CONTROL TRAY LEFT OR RIGHT EXIT THROUGH DUCTING DEPENDENT UPON POSITION OF SUPPLY Fig. 5 DESN 516562 SOCKET RATING LABEL LOCATED BEHIND PLINTH, PULL TO REMOVE, THE MAINS SUPPLY CONNECT POINT MUST BE WITHIN THE ZONES SHOWN Fig.
  • Page 12 The AGA TC5 hotcupboard should arrive with the top plate in a jacked up position. This is to allow the complete appliance to be slid onto its plinth when alongside the AGA TC3 without the top plate clashing. The hotcupboard top plate should then be wound down to its correct height once the appliance is in its final position.
  • Page 13 2. Position the plinth alongside the AGA Total Control leaving no gap between the two plinths (See Fig. 8). Check with a spirit level that the plinth level is correct, and also check height differential between the hotcupboard plinth and Total Control plinth is correct ”...
  • Page 14 4. Run a straight edge along the front of the AGA Total Control plinth, to ensure the front face of both plinths sit squarely against the straight edge. (See Fig. 10) When satisfied both plinths sit squarely, jacking screws can be tightened until they just make contact with the AGA Total Control plinth and locking screws can now be tightened.
  • Page 15 DESN 516552 7. The hotcupboard top plate is set (5mm) higher than the AGA Total Control top plate. This is to prevent damage to the enamel during installation. Lower the top plate using the adjusters (See Figs. 13 and 14).
  • Page 16 9. Slide the complete handrail over the left hand, right hand and centre fixing studs. Once the assembly has been fitted to the AGA appliance, fit the handrail endcaps (ensuring the handrail is evenly spaced at each end). The endcaps should be carefully pushed into place until they sit flush with the outside face of each bracket.
  • Page 17 Fig. 16 DESN 516560 Handrail brackets. endcaps and handrails require assembly. Locate endcaps onto handrail, place brackets over endcaps and then slide complete assembly onto locating studs. Once assembly is correctly located, lock into position with grub screws (located on underside of handrail).
  • Page 18 Fig. 17...
  • Page 19 LABEL ALL WIRES PRIOR TO DISCONNECTION, WHEN SERVICING CONTROLS WIRING ERRORS CAN CAUSE IMPROPER AND DANGEROUS OPERATION. VERIFY PROPER OPERATION AFTER SERVICING ETIQUETEZ TOUS LES CABLES AVANT DE LES DEBRANCHER LORS DE LES BRANCHER LORS DE L’ENTRETIEN DES COMMANDES. DES ERREURS DE CABLAGE PEUVENT ENTRAINER UN FONCTIONNEMENT INCORRECT ET DANGEREUX.
  • Page 20 Hand this Installation Guide to the user for retention and instruct in the safe operation of the appliance. Also advise the user that, for continued efficient and safe operation of the appliance, servicing is carried out at intervals recommended by the AGA distributor.
  • Page 24 With AGA’s policy of continuous product improvement, the Company reserves the right to change specifications and make modifications to the appliance described and illustrated at any time US Office: AGA MARVEL 1260 E Van Deinse St. Greenville, MI 48838 www.agamarvel.com...

This manual is also suitable for:

Total control tc5
