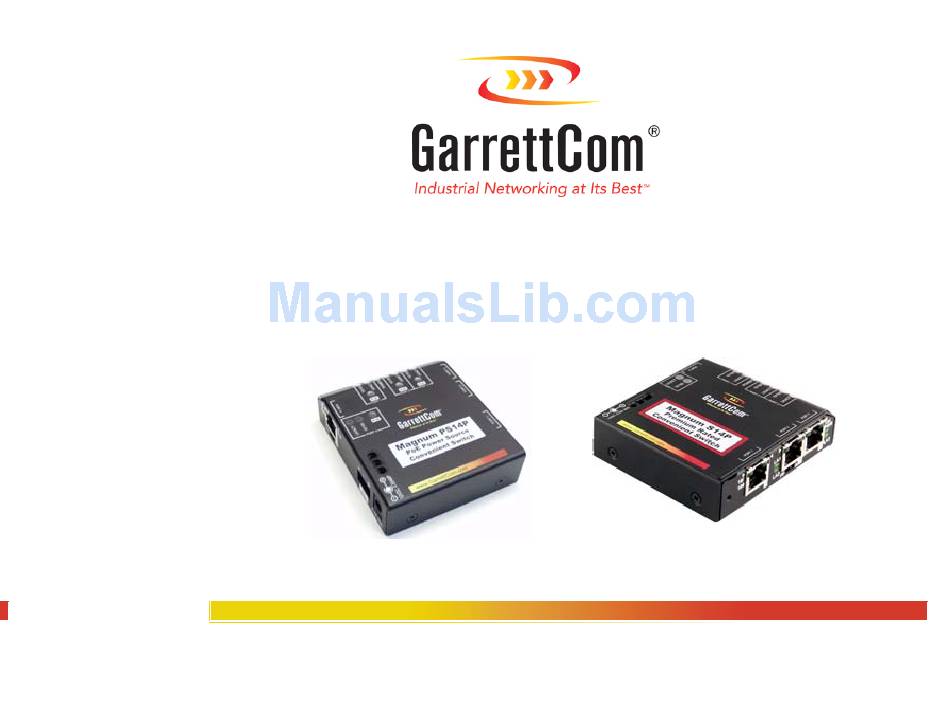

Magnum S14 Convenient Switch
&
PS14P Power Source Switch (PoE)
(Members of the Converter Switches family)

User Guide

Installation and

www GarrettCom com
.
.
$5.00 USD

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Magnum PS14P and is the answer not in the manual?

Questions and answers

Related Manuals for GarrettCom Magnum PS14P

Summary of Contents for GarrettCom Magnum PS14P

  • Page 1: Installation And

    Magnum S14 Convenient Switch & PS14P Power Source Switch (PoE) (Members of the Converter Switches family) User Guide Installation and www GarrettCom com $5.00 USD...
  • Page 2 Magnum S14 & PS14P 10/100 Mb/s Convenient Switches, consult Section 5, Troubleshooting, of this User Guide. Copyright © 2005 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc.
  • Page 3 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) Federal Communications Commission Radio Frequency Interference Statement This equipment generates, uses and can radiate frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio communication.
  • Page 4 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed below: GarrettCom, Inc. 47823 Westinghouse Dr. Fremont, CA 94539 Phone (510) 438-9071 Fax (510) 438-9072 Website: http://www.GarrettCom.com...

  • Page 5: Table Of Contents

    INTRODUCTION ... 11 Inspecting the Package and the Product... 12 Product Description ... 13 Magnum PS14P & S14-Series, with four (RJ-45) Copper ports ... 24 Frame Buffering and Latency ... 25 Features and Benefits... 28 Applications (S14 Series and PS14P(POE) Switches) INSTALLATION...
  • Page 6 S14 & PS14P (PoE) Convenient Switches S14H & S14P, DC-powered, Installation ... 52 3.7.1 Power Requirement for PS14P(PoE) Power Source Switch... 54 Connecting Twisted Pair (RJ-45 ports)... 55 3.8.1 Connecting Twisted Pair ( Unshielded or Shielded)... 56 3.8.2 Connections to NICs which support Auto-Neg RJ-45 ports... 57 OPERATION ...
  • Page 7 09/04: Small edit and updates on UL. 06/04: Small revision of the Agency Approvals Rev A 03/04: Initial release of this user manual for the S14 Converter Switch GarrettCom, Inc. reserves the right to change specifications, performance characteristics and/or model offerings without notice. www GarrettCom com...

  • Page 8: Specifications

    Network Standards 100Mb: Ethernet IEEE 802.3u, 100BASE-TX, IEEE 802.1p 10 Mb: Ethernet IEEE 802.3, 10BASE-T Power Over Ethernet: IEEE 802.3af (PS14P model only) Auto-sensing for speed: IEEE 802.3u Data packets that have the 4-bytes tagged VLAN field (802.1q) inserted in them are received and transmitted unchanged.
  • Page 9 S14 & PS14P (PoE) Convenient Switches Packet-Processing Between Domains Filter / Forwarding Rate from 100Mbps ports: 148,800 pps max Filtering and Forwarding Rate from 10 Mbps ports: 14,880 pps max. Processing type: Store and Forward, non-blocking Auto-learning: 2K address table Address buffer age-out time: 300 sec.
  • Page 10 32ºF to 104ºF (0ºC to 40ºC) (S14H): -13ºF to 140ºF (-25ºC to 60ºC) -40ºF to 167ºF (-40ºC to 75ºC) (S14P & PS14P): -40ºF to 185ºF (-40ºC to 85ºC) -40ºF to 167ºF (-40ºC to 75ºC) -40ºF to 185ºF (-40ºC to 85ºC) (S14H) model to -20ºC (S14P) model to -40ºC...
  • Page 11 Enclosure: Robust sheet metal (Steel). Dimensions, Switch unit: Height x Width x Depth S14, S14H, S14P & PS14P: 3.5 in H x 3.0 in W x 1.0 in D (8.9 cm x 7.6 cm x 2.5 cm) Weight: all S14 models: 4.6 oz. (130g);...
  • Page 12 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) POWER SUPPLY (S14 Model only) These products are intended to be supplied by a Listed, Direct Plug-In power unit, marked “Class 2”, or a Listed ITE Power Supply, marked “LPS”, which has suitably rated output voltage (i.e.
  • Page 13 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) DC to unit: 12V DC, 2.5mm jack, center +ve, 6ft. cord Power Supply ( Direct DC ): built-in screw terminal block for +, -, ground. The 12V DC jack is also present.
  • Page 14 Terminal block for -48v DC input (range of 46 to 60V dc), built in for +, - , ground. The 8- 15V DC jack is also present, but it can only be used to power the PS14P unit itself, not PoE devices attached.
  • Page 15 LED Indicators (Dual- front and end, port #4 has front only) POWER: Steady ON when power applied (S14 model) ON for -48V power applied to the PS14P unit PoE, ports 1,2,3,4: ON when delivering power (PS14P) 10/100: = 100Mbps; OFF = 10 Mbps LK/ACT: Steady ON for LINK with no traffic, blinking indicates port is transmitting / receiving.
  • Page 16 S14 & PS14P (PoE) Convenient Switches Agency Approvals and Standard Compliance: UL Listed (UL 60950), cUL, CE, Emissions meet FCC Part 15, Class A. NEBS L3 and ETSI compliant H & P models: IEEE P1613 Env. Std for Electric Power Substations...

  • Page 17: Summary Of Models And Descriptions

    Installation and User Guide (01/06) 1.2 Summary of models and descriptions: S14-d,i = four 10/100 RJ-45 ports Switch, for office and wiring closet env., ext. AC Pwr Supply S14H-Hd, Hi = Hardened, four 10/100 RJ-45 ports Switch, Factory floor, Int. 8-15VDC, Ext.

  • Page 18: Introduction

    802.3ad standard. Includes integral -48V DC terminal block for power unit. NOTE: If you want a heavy-duty Industrial power supply that plugs into AC and delivers -48BDC at 50 watts to support one PS14P-48VDC Switch and up to 4 attached PoE devices, Try this URL – http://www.lanstore.com/ps.htm MC14-TRAY = 19”...

  • Page 19: Inspecting The Package And The Product

    S14 & PS14P (PoE) Convenient Switches 2.1 Inspecting the Package and the Product Examine the shipping container for obvious damage prior to installing this product; notify the carrier immediately of any damage which you believe occurred during shipment or delivery. Inspect the contents of this package for any signs of damage and ensure that the items listed below are included.

  • Page 20: Product Description

    / value unit for each user and installation. For any user who needs a small chunk of Ethernet connectivity, a 4-port “go anywhere” Magnum S14 Switch is a versatile and handy solution, and can provide it in a convenient compact package.
  • Page 21 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) PORT 3 PORT 2 PORT 1 GarrettCom PORT 4 Magnum S14 Convenient Switch Fig2.2a. Magnum S14, Front view (three RJ-45 ports on Front 15V DC – side of the unit, as shown in Fig GarrettCom S14 Fig.
  • Page 22 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) The Yellow label S14 shown above are for office and wiring closet environments and use an external AC power supply. A metal case with convection cooling is featured. Operation may be in 0°...
  • Page 23 S14 & PS14P (PoE) Convenient Switches Ambient temperature rating is up to –25°C to +60°C for any of the power input types, AC or DC. PORT 3 PORT 2 PORT 1 GarrettCom PORT 4 Fig 2.2c- Magnum S14H, Front view (three RJ-45 ports on Front side of the unit, as shown in Fig.
  • Page 24 S14 & PS14P (PoE) Convenient Switches The red-label Magnum S14P, as shown in Fig. 2.2e, is a premium rated unit suitable for temperature un-controlled outdoor applications. Specially designed with premium-grade PORT 3 PORT 2 PORT 1 extended temperature components, the S14P uses similar thermal GarrettCom techniques as the S14H hardened units for cooling.
  • Page 25 GarrettCom’s continuous efforts of designing reliable and premium-rated Industrial Ethernet products with the latest technology while being a cost effective solution has successfully yielded their first Industrial PoE switch called the Magnum PS14P Convenient Switch. Designed and developed with premium-...
  • Page 26 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) PS14P’s Ethernet ports can provide Power as well as 10/100 Mb data transmission over the inter-connecting Ethernet cables. So a single Ethernet twisted pair cable will be able to transmit voice, data and power from the attached devices.
  • Page 27 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) successfully The PS14P is a standards-compliant way to power and connect a few small Ethernet devices at the edge of a network where AC power is not cost-effective to deploy. Since PoE is...
  • Page 28 S14 & PS14P (PoE) Convenient Switches These are applications where the Magnum PS14P can be used to provide the power and data for these PoE Powered Devices, which require 12-13watts maximum. - Wireless LAN access points and WLAN Mobility system...
  • Page 29 The sleek and efficient PS14P, featured with special thermal techniques for harsh temperatures and hardened, rugged enclosures qualify easily to provide a multi-purpose choice for all PoE device applications. The PS14P is a very important convenient source to meet all PoE requirements with a multi-choice of options.
  • Page 30 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) Source Convenient Switch models come with two (2) sets of LED indicators. One set is mounted in the end adjacent to three of the RJ-4 ports for easy viewing when the unit is mounted in a rack mount tray.

  • Page 31: Magnum Ps14P & S14-Series, With Four (Rj-45) Copper Ports

    S14 & PS14P (PoE) Convenient Switches Note: The 8-15vdc option is also present, but can only be used to power the PS14P unit when no PoE devices are attached. While using a 12vdc Adaptor to power on the switch, the unit will not function as a PoE power source switch but as a non-PoE switch only.

  • Page 32: Frame Buffering And Latency

    DC input terminal block is also provided on the rear side of the unit. 2.4 Frame Buffering and Latency The Magnum S14-Series & PS14P(PoE) Switches are store-and-forward switches. Each frame (or packet) is loaded into the Switch’s memory and inspected before forwarding can occur.
  • Page 33 When the Switch detects that its free buffer queue space is low, the Switch sends industry standard (full-duplex only) PAUSE packets out to the devices sending packets to cause “flow control”.
  • Page 34 The latency (the time the frame spends in the Switch before it is sent along or forwarded to its destination) of the S14-Series & PS14P(PoE) Convenient Switches varies with the port-speed types. The length of the frame is a variable here as it is with all store- and-forward switches.

  • Page 35: Features And Benefits

    PS14P, Sleek 4-port 10/100 Power Source Switch for PoE devices The compact and robust PS14P(PoE) acts as a Power plug for all the PoE devices, e.g CCTV camera, VOIP phone, digital clock, and wireless point through its RJ-45 ports and provides a convenient cost-effective power source.
  • Page 36 Two sets of LEDs for viewing status from any angle. Each S14-Series & PS14P Convenient Switch is equipped with two sets (front and side) of LEDs to provide status information when viewed at any angle or mounting arrangement, rack-mount, DIN-Rail, or panel-mount.
  • Page 37 DC-Power input for PoE Power Source Switch(PS14P) The 802.3af PoE standard PS14P power source switch requires 1.4Amps- 48VDC to provide enough power for 13-15watts on each RJ-45 port. The Terminal block for -48V DC input is a range of 46V to 60V DC.
  • Page 38 With the three tier “YOR” hardness ratings, Yellow for “office”, Orange for “Hardened”, Red for “Premium rated (outdoor)”, the Magnum S-14 Series Convenient Switch unit fits in any environment where users need to add a few RJ-45 ports to a LAN quickly and cost effectively. The edge-of–the-network connectivity product makes challenging industrial applications easier, more economical, and more-reliable.
  • Page 39 #1 with twisted pair cabling to add 3 more ports. Example 1. S14’s-In this example, the Magnum S14 Convenient Switch is used to serve a small office in a factory with multi-servers, print server, internet access and mixed-...
  • Page 40 S14 & PS14P (PoE) Convenient Switches Magnum 6K25 W W W . G a r r e t t C o m . C o m GarrettCom Magnum 6K25 10/100/1000 Configurable Ethernet Switch PORT 3 PORT 1 PORT 2 GarrettCom...
  • Page 41 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) Mbps. High performance users need a high bandwidth up-link for access to a central LAN and central file servers. Any attached node can change speed at any time without affecting network operation or impacting other users.
  • Page 42 S14 & PS14P (PoE) Convenient Switches Magnum 6K25 PORT 3 PORT 1 PORT 2 W W W . G a r r e t t C o m . C o m GarrettCom GarrettCom Magnum 6K25 10/100/1000 PORT 4 Configurable Ethernet Switch...
  • Page 43 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) Built with high-grade components, efficient thermal techniques of cooling, and equipped with a wide variety of options of AC and DC power supplies, the cost-effective Magnum S14Hs Convenient Switches easily qualify to be used in highly controllable industrial applications.
  • Page 44 S14 & PS14P (PoE) Convenient Switches IBM Compatible 100Mb Servers 100Mb Servers and Workstations and Workstations S14P Convenient Switches provided a secure dependable, In this reliable solution for un-controlled temp. environment extended S14Ps take care of the LAN connectivity requirement in a harsh temperature environment...
  • Page 45 CCTV cameras which monitor the day-to day manufacturing process. The blue tooth wireless was also implemented to eliminate the cable wiring between the PS14P (PoE) switches. The un-controlled temperature and the electric wiring were the big challenges to meet at this requirement.
  • Page 46 IBM Compatible Video Example 4b. Magnum PS14P (Power Source Switch) for PoE device only In another application for the Industrial floor, the requirement is to provide the complete floor with wireless to avoid more cabling mess and connect all the status delivery joints with VOIP phones.
  • Page 47 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) The PS14P(PoE) is being recommended to fulfill this requirement to make the upgrade more cost-effective and avoid another un-necessary electrical cable expansions. The sleek industrial proof Magnum PS14P(PoE) with its power Source Switch capability, easily meets the demand to provide power through its RJ-45 cable, and allows for a very neat Network setup.
  • Page 48 -48vdc power Wireless points Workstatio PS14P Power Source Switches used as a reliable cost-effective solution for providing Data, Power and Voice over RJ-45 Ports for Industrial application Data to PoE devices, e.g PoE Clock, VOIP phone and wireless access point...

  • Page 49: Applications (S14 Series And Ps14P(Poe) Switches)

    Metal mounting clips and screws are included for a rugged and secure mounting in any orientation. An option DIN-Rail bracket is available. Installation of the Magnum S14-Series & PS14P(PoE) Switches is a simple procedure. The installation location is dependent upon the physical layout of the Ethernet network and...

  • Page 50: Mc14-Tray For Rack Mounting Of S14-Series & Ps14P(Poe)

    24V or –48V DC or external AC through 9V DC jack. 3.2 MC14-TRAY for Rack Mounting of S14-Series & PS14P(POE) Switches For 19” rack-mounting of Magnum S14-Series & PS14P(PoE) Convenient Switches, a rack-mount tray is available, the part number is MC14-TRAY.

  • Page 51: Mc14-Tr+Ps9 & Mc14-Tr+Ps9X2 For Rack Media Converters

    Mounting the mix-match of 10Mbps and 100Mbps Media Converters and the S14-Series & PS14P(POE) Switches together in a 19” rack-mount tray. These models comes with built-in common universal AC power supplies rated at 55 watts at 50°C ambient, 12VDC output,...
  • Page 52 S14 & PS14P (PoE) Convenient Switches and supporting up to 10 Switches for MC14-TR+PS9 and 16 units S14-Series for MC14- TR+PS9X2. The MC14-TR+PS9X2 Model has two groups of eight units per power supply. These models are equipped with auto-ranging AC input to the power supplies for...
  • Page 53 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) installation of the model MC14-TR+PS9, 19” rack-mount tray, holding a few S14-Series , 10Mbps FT14’s and 100Mb 14E Media Converters, each with their power input plugged into the built-in common AC power supply in the rear area of the tray. (PS units that come with the MC’s are not used).

  • Page 54: Din-Rail Mounting Option

    S14 & PS14P (PoE) Convenient Switches 3.4 DIN-Rail mounting option The Magnum PS14P, S14HR & S14PR Convenient Switches, designed for use in “Factory Floor” Industrial Ethernet environments, are also available for DIN-Rail mounting in an enclosure having DIN Rails. The metal DIN-Rail mounting hardware is optional and needs to be ordered as a...

  • Page 55: Power Requirements, Power Supply Types For S14-Series Switches

    S14 & PS14P (PoE) Convenient Switches bracket The Magnum S14 Models with “HR” have 24VDC power, and have the DIN- Rail-MC2 bracket included and assembled with the MC unit at the factory. 3.5 Power Requirements, Power Supply Types for S14-Series Switches Magnum S14-Series Switches are power-efficient and can work with an external AC power supply.
  • Page 56 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) The S14-Series are designed to provide reliable operation, withstand higher temperature environments, and provide the Direct DC power choices to the user to deploy in uncontrolled temperature environments. 12VDC...
  • Page 57 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) 3.6 Powering the S14H & S14P (DC internal) with 12V, 24V or –48VDC power input Each Magnum S14H/S14P is reliably equipped with a Direct DC power supply, and have built-in screw terminals for secure attachment of the power leads.
  • Page 58 S14 & PS14P (PoE) Convenient Switches present and optionally can be used with an external P-rated AC power supply to provide “dual source” power input. DC Power Terminals: “+”, “-”, floating GND: Terminal for “earth” or ground wire connection to the S14H chassis...

  • Page 59: S14H & S14P, Dc-Powered, Installation

    S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) 3.7 S14H & S14P, DC-powered, -48VDC, 24VDC and 9VDC Installation This section describes the proper connection of the -48VDC leads (or 24VDC, 12VDC leads) to the Direct DC power terminal block on the Magnum S14H hardened media converter (as shown in Figure above).
  • Page 60 S14 & PS14P (PoE) Convenient Switches Installation and User Guide (01/06) The connection procedure is straightforward. Simply insert the DC leads to the S14H’s power terminals, positive (+) and negative (-) screws. The use of Ground (GND) is optional; it connects to the S14H chassis. Ensure that each lead is securely tightened from the top, as shown here.

  • Page 61: Power Output

    Note: The 8-15V DC option is also present, but can only be used to power the PS14P(POE) unit when no PoE devices are attached. The device will not function as PoE Switch while powered up via 12VDC power, but as a normal non-PoE Switch.

  • Page 62: Connecting Twisted Pair (Rj-45 Ports)

    S14 & PS14P (PoE) Convenient Switches 3.8 Connecting Twisted Pair (RJ-45 ports) The Magnum S14-Series & PS14P(POE) Convenient Switches can be connected to only one media type with two different speed i.e. 100BASE-TX and 10BASE-T. CAT 5 cables should be used when making 100BASE-TX connections. When the ports are used as 10BASE-T ports, CAT 3 may be used.

  • Page 63: Connecting Twisted Pair ( Unshielded Or Shielded)

    For Port # 1 or 1SW, if the LINK LED is not illuminated, move the switch which has a cross-over or up-link for linking to another hub or Switch.

  • Page 64: Connections To Nics Which Support Auto-Neg Rj-45 Ports

    S14 & PS14P (PoE) Convenient Switches 3.8.2 Connections to NICs which support Auto-Negotiation, RJ-45 ports The copper ports of Magnum S14-Series Convenient Switches will function properly with NICs (Network Interface Cards) which support Auto-Negotiation, and the Fast Link Pulse (FLP) coding for the 100BASE-TX signaling system. When connecting a...

  • Page 65: Operation

    100Mbps Ethernet, and can communicate with 10 Mb domain too. Magnum S14-Series & PS14P(PoE) units are plug-and-play devices. There is no software configuring to be done at installation or for maintenance. The internal functions of both are described below.
  • Page 66 Packets needed for maintaining the operation of the network (such as occasional multi-cast packets) are forwarded to all ports. The Magnum S14-Series & PS14P(PoE) Convenient Switches operate in the store-and-forward switching mode, which eliminates bad packets and enables peak performance.

  • Page 67: Auto-Cross (Mdix), Auto-Negotiation And Speed-Sensing

    The Magnum S14-Series & PS14P(PoE) units have address table capacity of 2K node addresses, and are suitable for use in large networks. They are self-learning, so that as nodes are added or changed, the S14-Series & PS14P(PoE) automatically keeps up with node locations.
  • Page 68 In such cases, the 10/100 speed or the F/H mode may be affected, but auto-cross in the S14 and PS14P(PoE) Switches will still work. The auto-cross function cannot be disabled.
  • Page 69 S14 & PS14P (PoE) Convenient Switches 4.3: Dual LEDs, Front-panel and side-panel (Magnum S14-Series & PS14P(PoE)) Description Illuminates GREEN to indicate power applied. LK/ ACT Steady ON for LINK w/no traffic, blinking for activity per port. LINK will turn off in the event connectivity is lost between the ends of the twisted pair segment or a loss of power occurs in the unit or remote device.

  • Page 70: Troubleshooting

    However, if you are unsure of the procedures described in this section or if the Magnum S14-Series & PS14P(PoE) 10/100 Mb/s Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact GarrettCom Customer Support.

  • Page 71: Before Calling For Assistance

    Make sure that an AC power cord is properly attached to each Magnum S14- Series & PS14P(PoE) unit. Be certain that each AC power cord is plugged into a functioning electrical outlet. Use the PWR LEDs to verify each unit is receiving power.

  • Page 72: When Calling For Assistance

    Magnum S14-Series & PS14P(PoE) Switch and its associated cables are functioning properly. If the problem continues after completing Step 4 above, contact your supplier of the Magnum S14-Series & PS14P(PoE) 10/100 Mb/s Switch unit or if unknown, contact GarrettCom, Inc by fax, phone or email (support@garrettcom.com) for assistance.

  • Page 73: Return Material Authorization (Rma) Procedure

    S14 & PS14P (PoE) Convenient Switches It is useful to include other network equipment models and related hardware, including Convenient computers, workstations, terminals and printers; plus, the various network media types being used. A record of changes that have been made to your network configuration prior to the occurrence of the problem.

  • Page 74: Shipping And Packaging Information

    Testing and repair of product that is not under warranty will result in a customer (user) charge. 5.4 Shipping and Packaging Information Should you need to ship the unit back to GarrettCom, please follow these instructions: www GarrettCom com Installation and User Guide (01/06)
  • Page 75 This material may cause electro-static shock damage to the unit. 2. Clearly mark the Return Material Authorization (RMA) number on the outside of the shipping container. 3. GarrettCom is not responsible for your return shipping charges. 4. Ship the package to: GarrettCom, Inc.

  • Page 76: Appendix A: Warranty Information

    GarrettCom, Inc. warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of shipment by GarrettCom. During this warranty period, GarrettCom will repair or, at its option, replace components in the products that prove to be defective at no charge other than shipping and handling, provided that the product is returned pre-paid to GarrettCom.
