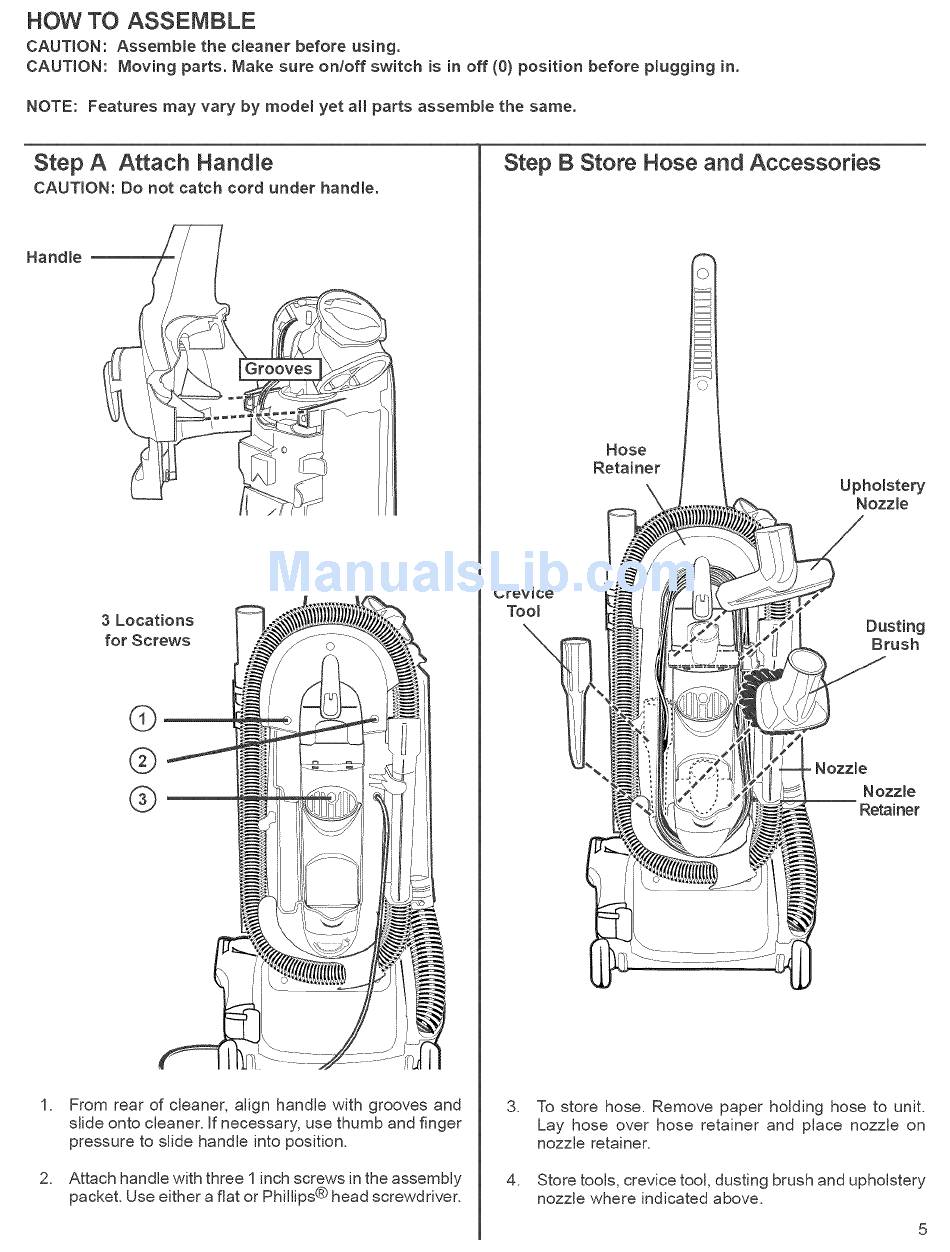

HOW TO ASSEMBLE
CAUTION: Assemble the cleanerbefore using,
CAUTION: Moving parts. Make sure onloff switch is in off (0) position before plugging in.
NOTE: Features may vary by modem yet aJt parts assemb{e the same.
Step A Attach HandJe
CAUTION: Do not catch cord under handle.
Handle
3 Locations
for Screws
q}
@
@
.
.
From rear of cJeaner, aJign handJe with grooves and
sJide onto cleaner, if necessary, use thumb and finger
pressure to slide handle into position.
Attach handle with three I inch screws in the assembly
packet. Use either a fiat or PhijJips® head screwdriver.
Step B Store Hose and Accessories
Hose
Retainer
Upholstery
NozzJe
Crevice
Tool
Dusting
Brush
Nozzle
Nozzle
Retainer
.
To store hose. Remove paper holding hose to unit.
Lay hose over hose retainer and place nozzle on
nozzle retainer.
Store tools, crevice tool, dusting brush and upholstery
nozzle where indicated above.
