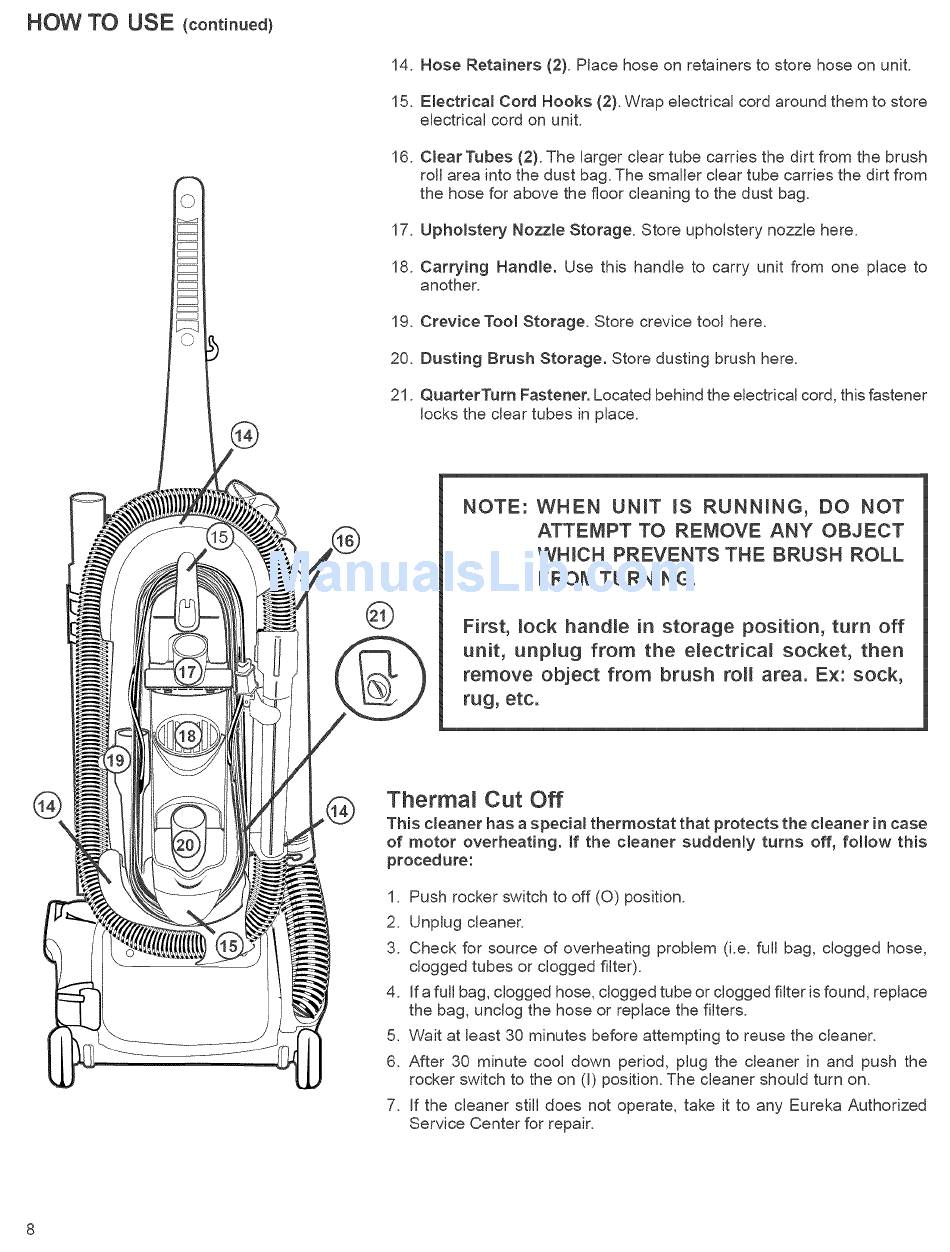

HOW TO USE (continued)
©
_Jj
EZ3
EZ_
LZ
LB
_q
\J
14. Hose Retainers (2). Place hose on retainers to store hose on unit.
15. Electrical Cord Hooks (2}. Wrap electrical cord around them to store
electrical cord on unit.
16. ClearTubes (2}. The larger clear tube carries the dirt from the brush
roll area into the dust bag. The smaller clear tube carries the dirt from
the hose for above the floor cleaning to the dust bag.
17. Upholstery Nozzle Storage. Store upholstery nozzle here.
18. Car_{ng Handle. Use this handle to carry unit from one place to
another.
19. Crevice Tool Storage. Store crevice tool here.
20. Dusting Brush Storage. Store dusting brush here.
21. QuarterTum Fastener. Located behind the electrical cord, this fastener
locks the clear tubes in place.
,@
@
NOTE: WHEN UNiT _S RUNNING, DO NOT
ATTEMPT TO REMOVE ANY OBJECT
WHICH PREVENTS THE BRUSH ROLL
FROM TURNING.
First, mock handme in storage position, turn off
unit, unplug from the e_ectrica_ socket, then
remove object from brush roll area. Ex: sock,
rug, etc.
@
Therma_ Cut Off
This cleaner has a special thermostat that protects the cleaner in case
of motor overheating. If the cleaner suddenly turns off, follow this
procedure:
1. Push rocker switch to off (O) position.
2. Unplug cleaner.
3. Check for source of overheating problem (i.e. full bag, clogged hose,
clogged tubes or clogged filter).
4. If a full bag, clogged hose, clogged tube or clogged filter is found, replace
the bag, unclog the hose or replace the filters.
5. VVait at least 30 minutes before attempting to reuse the cleaner.
6. After 30 minute cool down period, plug the cleaner in and push the
rocker switch to the on (I) position. The cleaner should turn on.
7. If the cleaner still does not operate, take it to any Eureka Authorized
Service Center for repair.
