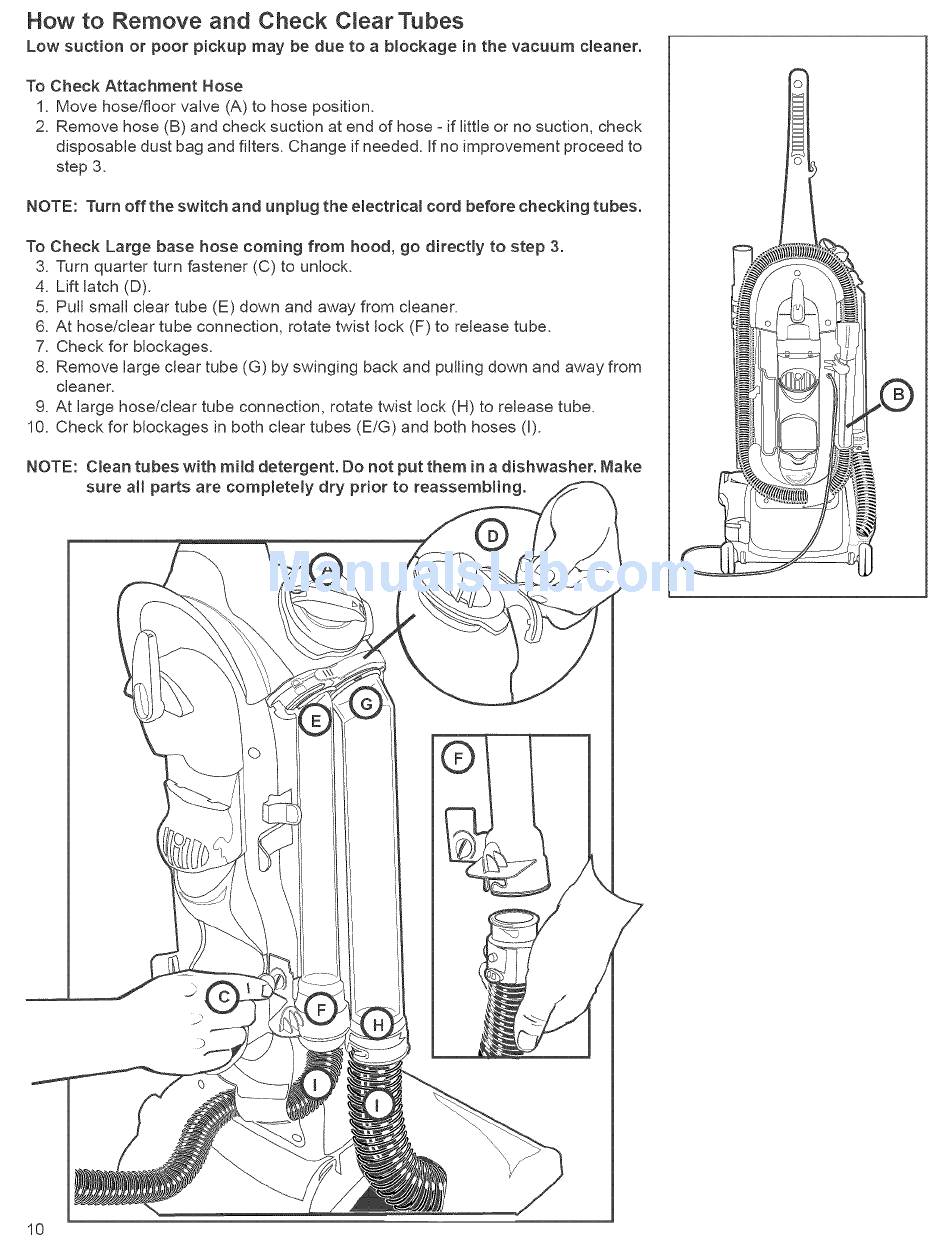

How to Remove
and Check CmearTubes
Low suction
or poor pickup may be due to a blockage
in the vacuum
cleaner.
To Check Attachment
Hose
1. Move hose/floor valve (A) to hose position.
2. Remove hose (B) and check suction at end of hose =if little or no suction, check
disposable dust bag and filters. Change if needed, if no improvement proceed to
step 3.
NOTE: Turn off the switch and unp{ug the electNca{ cord before checking
tubes.
To Check Large base hose coming
from hood, go directly
to step 3.
3. Turn quarter turn fastener (C) to unlock.
4. Lift latch (D).
5. Pull small clear tube (E) down and away from cleaner.
6. At hose/clear tube connection, rotate twist lock (F) to release tube.
7. Check for blockages.
8. Remove large clear tube (G) by swinging back and pulling down and away from
cleaner.
9. At large hose/clear tube connection, rotate twist lock (H) to release tube.
10. Check for blockages in both clear tubes (EtG) and both hoses (I).
NOTE: Clean tubes with mild detergent.
Do not put them in a dishwasher.
Make
sure atl parts are completely
dry prior to reassembling.
