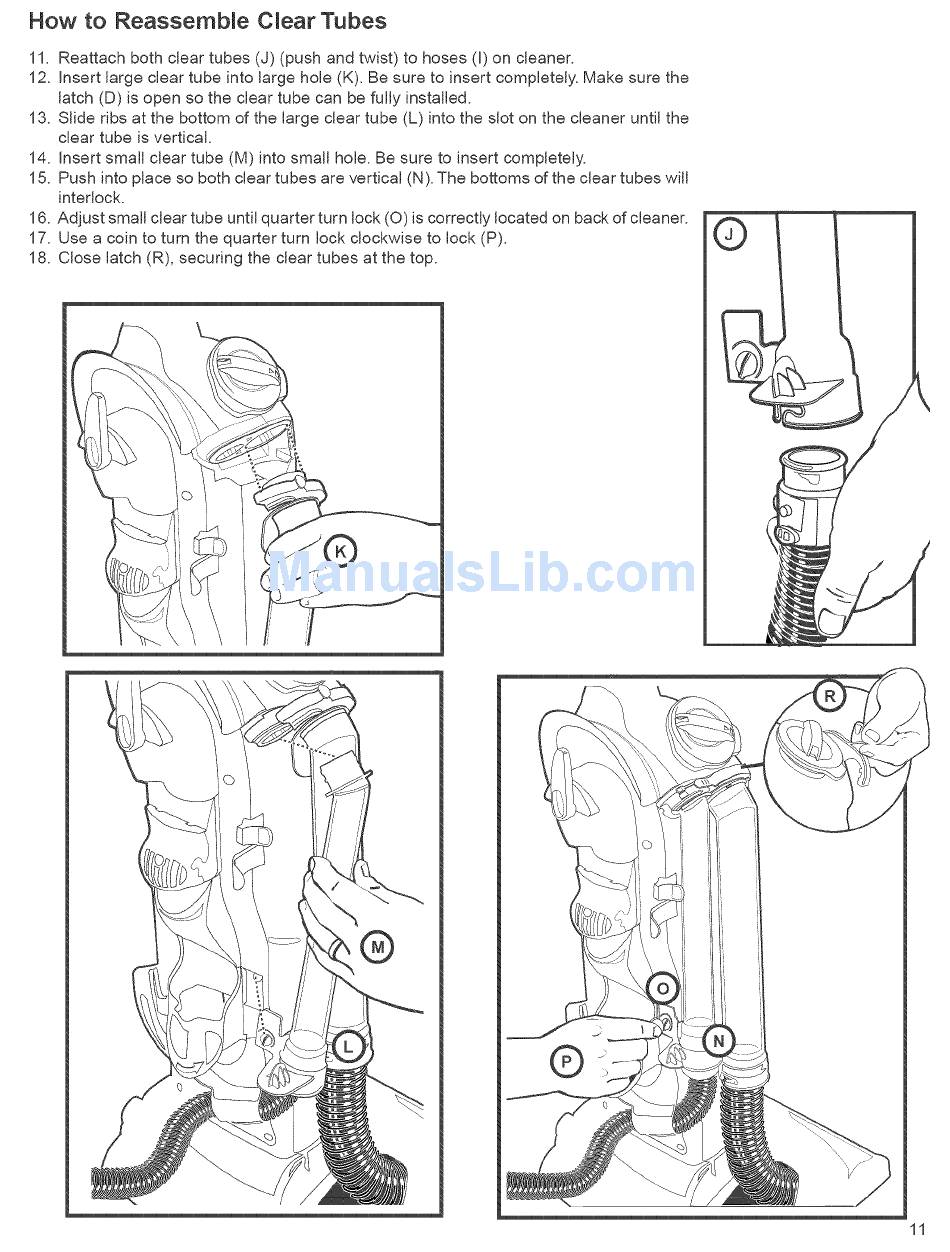

How to Reassemble Clear Tubes
11. Reattach both clear tubes (J) (push and twist) to hoses (I) on cleaner.
12. insert large clear tube into large hole (K). Be sure to insert completely. Make sure the
latch (D) is open so the clear tube can be fully installed.
13. Slide ribs at the bottom of the large clear tube (L) into the slot on the cleaner until the
clear tube is vertical.
14. insert small clear tube (M) into small hole. Be sure to insert completely.
15. Push into place so both clear tubes are vertical (N). The bottoms of the clear tubes will
interlock.
16. Adjust small clear tube until quarter turn lock (O) is correctly located on back of cleaner.
17. Use a coin to turn the quarter turn lock clockwise to lock (P).
18. Close latch (R), securing the clear tubes at the top.
©
