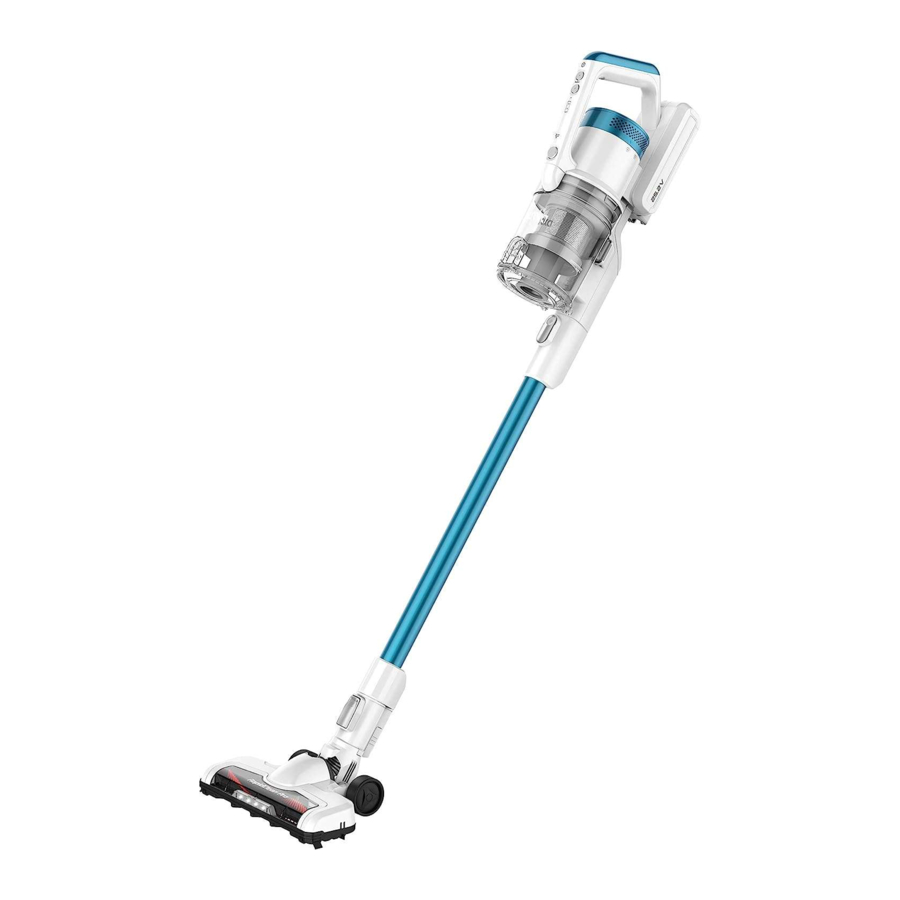

Eureka NEC180 Series, NEC186 Manual

Where to find important vacuum information

Keep this information
Write the model, type and serial number here:

Find these numbers on a label on the hand vacuum, battery, and charger. Refer to these numbers when ordering parts and accessories, or if service is needed.

This Owner's Guide provides important instructions to prolong the life of your Eureka vacuum cleaner

Registration: To register your product visit www.eureka.com and click on the 'Register Your Product' link in the top right corner.

Inspection: Carefully unpack and inspect your new Eureka vacuum cleaner for shipping damage. Each unit is tested and thoroughly inspected before shipping. For instructions regarding any shipping damage, call the Eureka Customer Service HELPLINE at 1-800-282-2886 immediately.

What comes in the carton

How to identify parts of your vacuum cleaner

* See filter maintenance instructions

Easy assembly

1. Slide wand onto hand vacuum until it clicks

   (Fig. 1).
2. Push wand into motorized floor nozzle until it clicks

   (Fig. 2).

How to install wall mount

• Choose location near power outlet. Locate point high enough on wall to allow wand and motorized floor nozzle to hang freely.
• Place mount against wall and use pencil to mark drill holes.
• Drill holes (with 1/4" bit) and insert drywall anchors. Insert screws through holes on mount and tighten until firmly attached

  (Fig. 3).

How to charge battery and store accessories

• Place assembled vacuum cleaner on wall mount.
• Plug charger into power outlet and then into charger port on handle

  (Fig. 4).
• Loop charger cord into clips on sides of wall mount.

Battery indicator lights show level of charge (Fig. 4):

1. Half charged
2. Fully charged

• Indicator lights stop blinking when fully charged.
• Charge battery fully before using for the first time. This may take up to six hours.

How to use cleaner for cleaning floors

1. Click power button once to start

   (Fig 1).

   Vacuum starts on High mode. Use Low/ High button to switch between modes.
2. Using motorized floor nozzle, glide back and forth on area to be cleaned. Avoid oversized or sharp items (such as screws) with cleaner.
3. Twist wrist to engage swivel function.
4. When done, click power button once to stop motor.

Empty dust cup after every use

1. Click the dust cup release button, located on the front of the handle just above the dust cup and pull dust cup out.

   (Fig. 2).
2. Press lever to release bottom lid of dust cup to empty debris. (Fig. 2)
3. To place the dust cup back, angle it forward so the lower hook catches in the slot and then gently push it back towards the wand until you hear click indicating it is locked in place.

   (Fig. 3)

How to use hand vacuum and accessories

Moving parts! Always turn off hand vacuum before attaching accessories.

The hand vacuum can be used with or without tools.

• To use without tools, press release button and remove wand. Collect debris directly with hand vacuum nozzle

  (Fig. 4).
• To use tools with wand, press release button to remove motorized floor nozzle. Slide tool onto end of wand until it clicks (Fig. 5).
• To use tools with hand vacuum only, press release button to remove wand. Slide tool onto hand vacuum until it clicks.

Use with or without wand.

• 2-in-1 upholstery tool: Use brush to vacuum blinds, vents or upholstered surfaces. Use felt portion to clean delicate surfaces. To switch between felt and brush portions, press thumb release and slide brush up or down.

How to use hand vacuum and motorized floor nozzle

Ideal for cleaning stairs.

• Press release button to remove wand from hand vacuum. Attach motorized floor nozzle directly to hand vacuum until it clicks.
• Click power button once to start. Vacuum starts on High mode. Use Low/High button to switch between modes depending on suction power desired.

How to maintain your vacuum cleaner

Never operate vacuum cleaner without all filters, filter screen and dust cup in proper position.

Moving parts! Recharge cleaner after each use.

Dust cup – Empty after each use

1. Click the dust cup release button, located on the front of the handle just above the dust cup and pull dust cup out.

2. Press lever to release bottom lid of dust cup to empty debris.|


Washable dust cup filter — clean monthly

1. Click the dust cup release button, located on the front of the handle just above the dust cup and pull dust cup out.
2. Lift out pre-motor filter and shake off dust frequently. Every three months
3. Reattach filter and Cyclone.
4. Click dust cup back into place on unit.

Washable post-motor filter — clean every 6 months

1. Twist filter cover and remove.
2. Lift out post-motor filter.
3. Shake to remove dust.
4. Every 6 months, replace filter or rinse and dry THOROUGHLY.
5. Reposition filter and cover and twist to 'lock.'

How to maintain brushroll

To avoid unnecessary service calls, periodically check brushroll for debris. If brushroll gets clogged it will automatically shut off. Turn vacuum off and unplug before attempting to remove clog.

Washable brushroll – clean frequently

Make sure vacuum cleaner is turned off and not plugged into a power source.

Do not attempt to remove belt. Call the Eureka Customer Service HELPLINE at 1-800-282-2886.

Step on floor nozzle to lower handle. Turn vacuum face down on floor. Use scissors to clip heavy threads or strings.

If debris cannot be removed easily, locate the brushroll release tab on the right side and open the brushroll cover. Remove the brushroll and clear any tangled hair and remaining debris.

To reassemble:

1. Align one end of brushroll with floor nozzle gear.
2. Press other end into slot.
3. Replace brushroll release tab into slot and press down to click it into place.

Problem solving

Make sure vacuum cleaner is off and charging plug is unplugged.

NOTICE : Thermal cut-off
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating.

If the vacuum suddenly shuts off, proceed as follows:

1. Check the vacuum for a possible source of overheating such as a full dust cup, blocked wand or clogged filters. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum.
2. After the 30 minute period, press the power button. If the vacuum still does not work, call the Eureka Customer Service HELPLINE at 1-800-282-2886.

Order genuine Eureka accessories and replacement parts

Visit www.eureka.com or call 1-800-282-2886

IMPORTANT SAFEGUARDS

Follow caution information wherever you see this symbol.

When using an electrical appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM CLEANER
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

• Prevent unintentional starting. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that has the switch on invites accidents.
• Do not touch nozzle when the vacuum cleaner is on. Danger.
• Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Do not use outdoors or on wet surfaces.
• Do not operate the vacuum cleaner or charger if it has been damaged in any way. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call the Eureka Customer Service HELPLINE at 1-800-282-2886.
• To avoid excessive heat and damage to the unit or battery, the vacuum cleaner will not operate while charging.
• Do not allow to be used as a toy. Close attention is necessary when used by or near children.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack."
• Do not pull or carry the charger by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run appliance over cord. Keep cord away from heated surfaces.
• This charger is not intended for use by travelers.
• Do not use extension cords or outlets with inadequate current carrying capacity for the charger.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle charger or vacuum cleaner with wet hands.
• Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• DO NOT MUTILATE OR INCINERATE BATTERIES. THEY BECOME DANGEROUS AT HIGH TEMPERATURES.
• Liquid ejected from the battery may cause irritation or burns. If the liquid gets on the skin,
  1. seek medical attention,
  2. wash quickly with soap and water, and
  3. neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• This product is functioning at temperature range within 40°F - 104°F.
• Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F may cause explosion.
• Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
• Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
• Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.
• The terminals on both the vacuum cleaner and battery should be kept free and clean of objects. Do not insert metal objects inside the terminals.
• This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.
• Do not use without filters in place.
• Use extra care when cleaning stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Store vacuum cleaner and charger indoors in a cool, dry area. To avoid electric shock and/or cleaner damage, do not expose to weather elements.
• Keep your work area well lit. Unplug electrical appliances before vacuuming them.
• Overcharging, short circuiting, reverse charging, mutilating or incinerating the cells and the batteries must be avoided.
• If a cell or a battery has leaked or vented, it should be replaced immediately using protective gloves.
• If and when necessary, these cells or batteries must be replaced with identical new ones from the same manufacturer. If a cell or a battery to be replaced is connected with other cells or batteries in series, it is recommended that the other cells or batteries be replaced with new ones at the same time.
• Reverse polarity installation of the cell or the battery in the end product must be avoided.
• Do not incinerate this appliance even if it is severely damaged. Contact local waste facility before discarding in trash.
•
  This product can expose you to chemicals including Di (2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause cancer and to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

SAVE THESE INSTRUCTIONS

If you have questions about your new vacuum, please contact our customer service HELPLINE at 1-800-282-2886.

Learn more at www.eureka.com/cleanpromise

www.eureka.com
