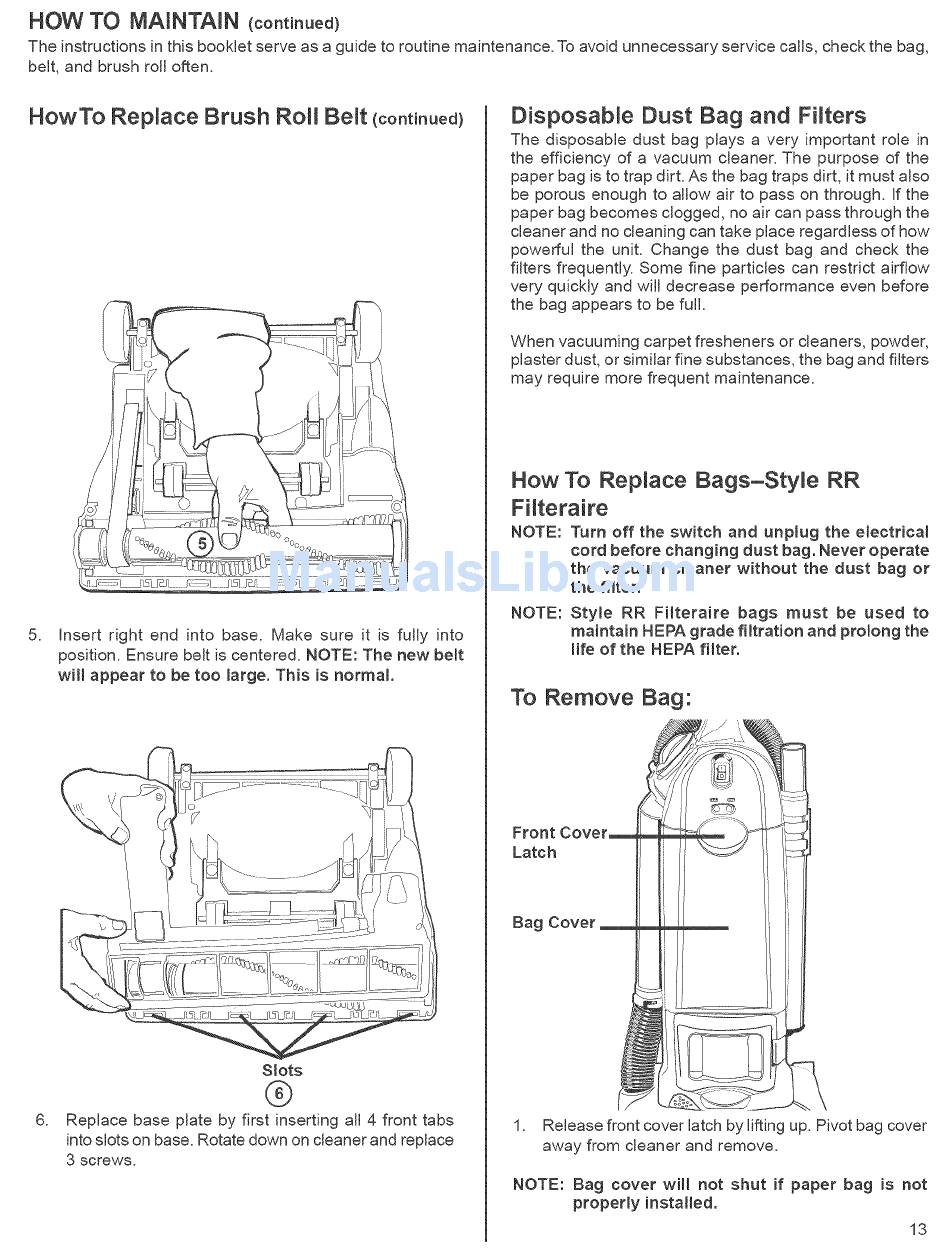

HOW TO MAINTAIN (continued)
The instructions in this booklet serve as a guide to routine maintenance. To avoid unnecessary service calls, check the bag,
belt, and brush roll often.
HowTo Replace Brush Roll Belt (continued)
5. insert right end into base. Make sure it is fully into
position. Ensure belt is centered. NOTE: The new belt
will appear to be too large. This is normal
.
Slots
®
Replace base plate by first inserting all 4 front tabs
into slots on base. Rotate down on cleaner and replace
3 screws.
Disposable Dust Bag and FHters
The disposable dust bag plays a very important role in
the efficiency of a vacuum cleaner. The purpose of the
paper bag is to trap dirt. As the bag traps dirt, it must also
be porous enough to allow air to pass on through. If the
paper bag becomes clogged, no air can pass through the
cleaner and no cleaning can take place regardless of how
powerful the unit. Change the dust bag and check the
filters frequently. Some fine particles can restrict airflow
very quickly and will decrease performance even before
the bag appears to be full.
When vacuuming carpet fresheners or cleaners, powder,
plaster dust, or similar fine substances, the bag and filters
may require more frequent maintenance.
How To RepNace Bags-Style RR
Filteraire
NOTE: Turn off the switch and unplug the electrical
cord before changing dust bag. Never operate
the vacuum cleaner without the dust bag or
the filter.
NOTE: Sty{e RR Filteraire bags must be used to
maintain HEPA grade filtration and prolong the
life of the HEPA filter.
"To Remove Bag:
Latch
Bag Cover
1. Release front cover latch by lifting up. Pivot bag cover
away from cleaner and remove.
NOTE: Bag cover will not shut if paper bag is not
properly installed.
