Magnum14E Media Converters Installation and User Guide (10/02)
The Magnum 14E units comply with the IEEE 802.3u (100BASE-TX and 100BASE-
FX) specification for 100 Mb/sec traffic via shielded (STP) or unshielded twisted pair (UTP)
segments.
Twisted Pair
(100BASE-TX)
The Link Pass-Through feature is especially
FIBER
TWISTED PAIR
desirable for use in managed networks, and is
Magnum 14E
Media Converter
UP LINK
standard in all 14E's. Magnum 14E-ST models
are equipped with one multi-mode fiber-ST and
Fiber Multi-mode
one RJ-45 connector for connection into
(100BASE-FX)
100BASE-FX segments. (ST-type)

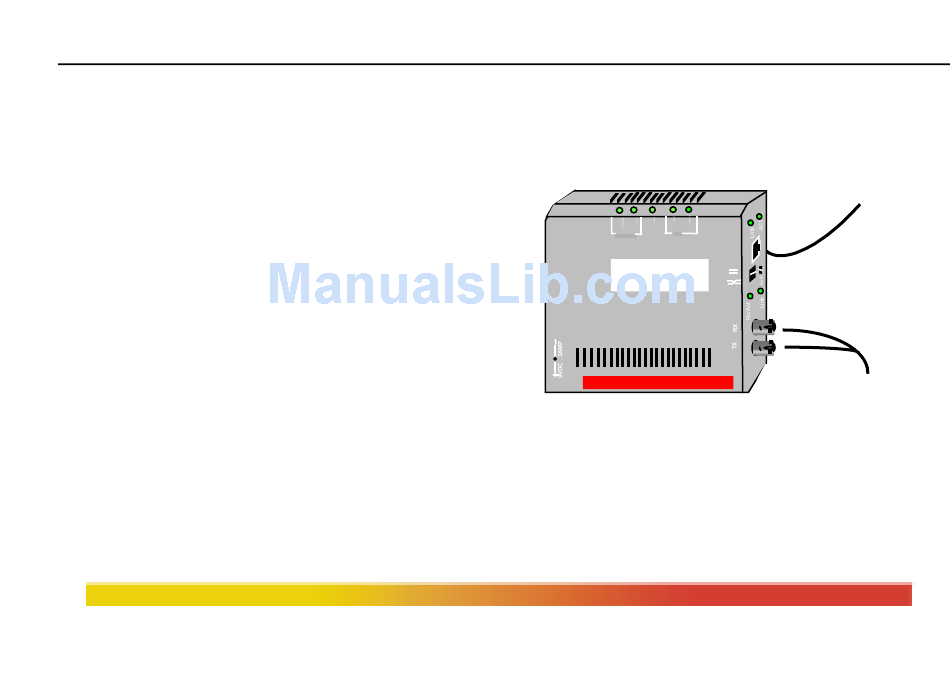

14Es with ST integrates 100BASE-TX and FX networks, with fiber ST connector
. .
