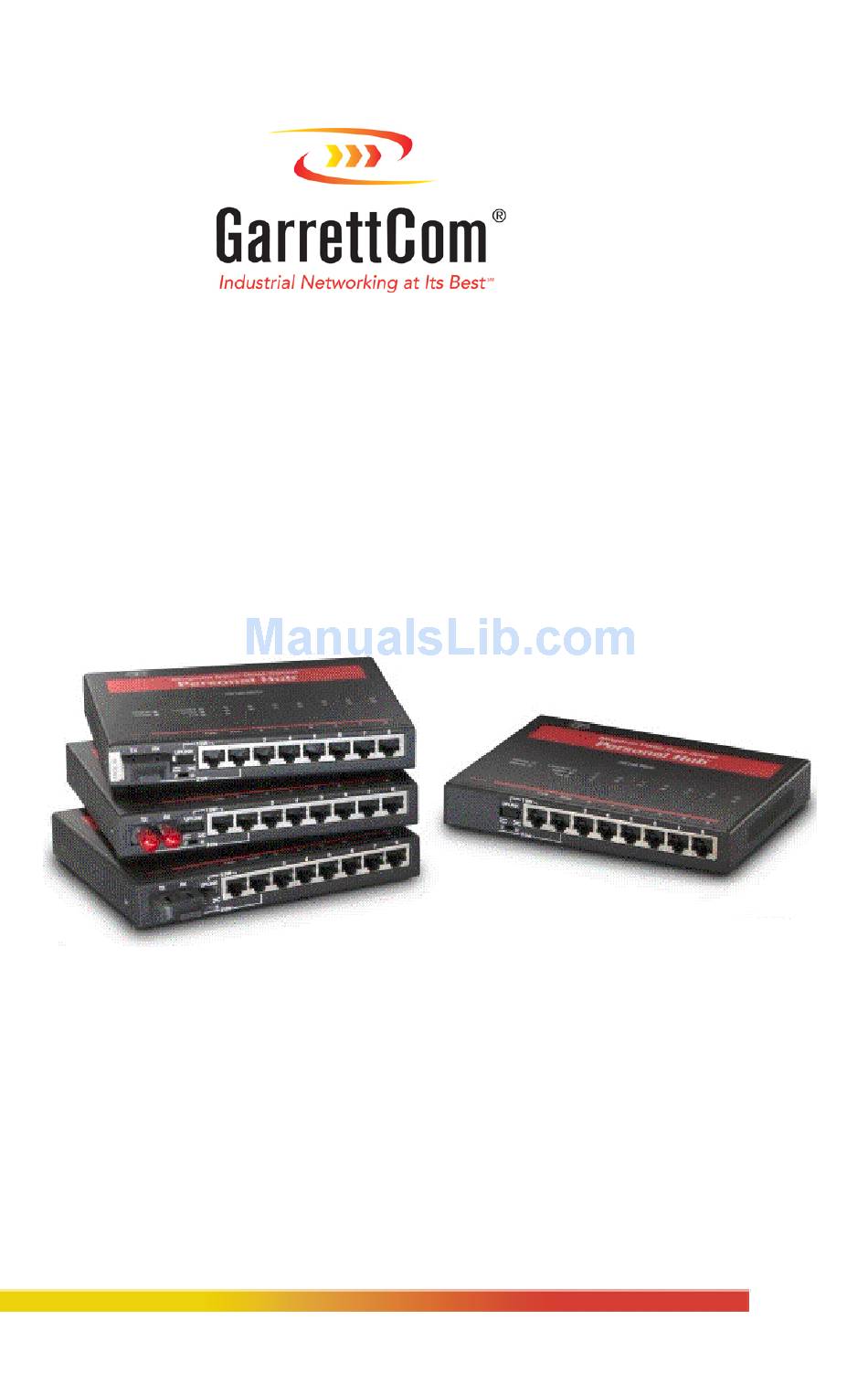

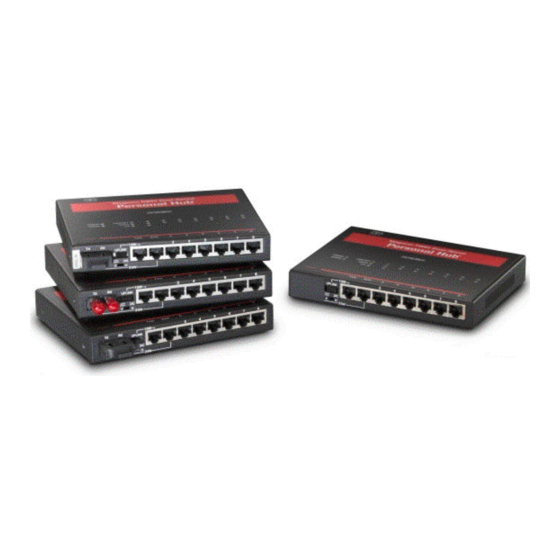

- Page 1 Magnum DS80F & DS80C Personal Hubs Installation and User Guide www GarrettCom com...
- Page 2 If problems are experienced with a Magnum DS80F or DS80C, consult Section 5, Troubleshooting, of this User Guide. Copyright 2001 GarrettCom, Inc. All rights reserved. No part of this publication may be reproduced without prior written permission from GarrettCom, Inc.
- Page 3 Magnum DS80F & DS80C Dual-speed Stackable Hubs Contacting GarrettCom, Inc. Please use the following mailing address, phone and fax numbers or Internet address. Radio Frequency Interference Statement This equipment generates, uses and can radiate frequency energy and if not installed and used properly, that is in strict accordance with the manufacturer's instructions, may cause interference to radio communication.
- Page 4 Magnum DS80F & DS80C Dual-speed Stackable Hubs ETHERNET CONNECTIVITY PRODUCTS "DESIGNED AND MANUFACTURED IN THE USA" GarrettCom, Inc.offers the premium-quality Magnum products with industry-standard functionality and built-in fiber configurability. Magnum products are designed for use in demanding Carrier Class, Industrial Grade and OEM applications where reliability is a primary consideration.
-
Page 5: Table Of Contents
4.1 Dual-Speed Functionality ...17 4.2 Auto-negotiation and speed-sensing ...18 4.3 Full or Half duplex, manual selection for DS80F Models ...18 4.4 Full or Half duplex, manual selection for DS80C ...18 4.5 LEDs ...19 4.6 Up-link Port, 1SW...19 4.7 Use with media converters...20 5.0 TROUBLESHOOTING... -
Page 6: Specifications
Magnum DS80F & DS80C Dual-speed Stackable Hubs SPECIFICATIONS Technical Specifications Performance of Dual-Speed Ports When a port is operating at 100Mbps: Data Rate: 100Mbps When a port is operating at 10Mbps: Data Rate: 10Mbps Partitioning: Enforced after 63 consecutive collisions... - Page 7 Maximum Load per port: 60 mA Up-Link, Port # 1 SW Port 1SW (switched RJ-45) has a manual crossover (MDIX up-link) switch for connection to a central switch or to another DS80F, DS80C (or equal) unit. Manual Switch DS80C: “FF” or “A” switch Port 2SW (a switched port) has a “FF-A”...
-
Page 8: Ordering Information
External power supply. Use “-d” suffix for external power supply at 115vac 60Hz; use “-i” suffix for external at 230vac 50Hz. GarrettCom, Inc. reserves the right to change specifications, performance characteristics and / or model offerings without notice. www GarrettCom com... -
Page 9: Introduction
This package should contain: Magnum DS80F Dual-Speed Hub with a Fiber Port or DS80C with all copper ports. External Power Supply, 5VDC from either 115v 60Hz or 230v 50Hz... -
Page 10: Product Description
10Mbps traffic. DS80F & DS80C ports #3 to 8 can connect into either the 100 or the 10Mbps traffic domain, and can also change from one traffic domain to the other at any time without affecting the speed of other ports. -
Page 11: Magnum Ds80F Chassis
The external power supply is 5VDC at either 95 - 125vac at 60 Hz for “-d” models or 120- 250vac at 50Hz for “-i” models that have IEC power cable connector in the external power supply housing. 2.2.2 Magnum DS80C chassis with all RJ-45 Copper ports 5VDC, 2Amps Magnum DS80 Dual Speed Personal Hub... -
Page 12: 10 / 100 Speed Auto-Sensing
100Mbps. If the connected device does not positively indicate that it is capable of 100Mbps speed, then the operation on that DS80F and DS80C port will be at 10Mbps. Of course, the auto-negotiation technique, on ports #3 to 8, is only for 10/100 speed, and does not provide for any full-duplex operation. - Page 13 Ports 1SW and 2SW (the switched ports) have a common “F - H” user-selectable manual switch. When set in the “F” position, it causes full-duplex mode to be advertised for the standard 802.3u auto-negotiation session on RJ-45 ports, and for the fiber port, it forces full- duplex mode at 100Mb.
-
Page 14: Features And Benefits
Small enclosure enables use in offices, labs and classrooms The compact packaging of Magnum DS80F & DS80C’s allows them to be installed in offices and labs, or virtually any workspace location within reach of a standard AC wall outlet. - Page 15 Magnum DS80F & DS80C Dual-speed Stackable Hubs Applications The DS80F & DS80C are designed to bring future-proof fiber connectivity and highly used copper connectivity to small user groups in offices, classrooms and labs. Example 1. Magnum DS80F In this example, a Magnum DS80F Personal Hub serves a small office with multi-server and mixed-speed requirements.
- Page 16 Figure 2.6.1: Two DS80C connects together to provide 10Mbps and100Mbps network with In this example, two of the Magnum DS80C Personal Hub cascaded together to serve a small office with multi-server, print server, internet access and mixed-speed requirements. The users operate at 100Mb as well as at 10Mb and utility devices (such as print servers) run at 10Mbps.
-
Page 17: Table-Top Or Shelf Mounting
Locate an AC receptacle that is within six feet (2 meters) of the intended Magnum DS80F & DS80C site. The rugged metal case of the Magnum DS80F & DS80C will normally protect it from accidental damage in a lab or workplace setting. Maintain an open view of the top surface to visually monitor the status LEDs. -
Page 18: Connecting Ethernet Media
Connecting Ethernet Media The Magnum DS80C Dual-Speed Personal Hub can be connected to two media types i.e. 100BASE-TX and 10BASE-T, however, DS80F can be connected to the following three media types: 100BASE-TX, 10BASE-T and 100BASE-FX. CAT 5 cables should be used when making 100BASE-TX connections. -
Page 19: Connecting Fiber Optic Sc-Type, "Twist-Lock
Magnum DS80F & DS80C Dual-speed Stackable Hubs 3.2.2 Connecting Fiber Optic ST-type, “twist-lock” The following procedure applies to installations using ST-type fiber connectors. This procedure applies to ports using a multi-mode ST fiber connectors. Before connecting the fiber optic cable, remove the protective dust caps from the tips of the fiber connectors. -
Page 20: Connecting To Nics Which Support Auto-Negotiation
Link Pulse (FLP) coding for the 100BASE-TX signaling system. When connecting a NIC to the DS80F or DS80C, it may be necessary to reload the NIC drivers on the user device if the NIC has been communicating with a protocol other than 100BASE-TX (such as 10BASE-T). When 100Mb operation is agreed and in use, the SPEED LED is illuminated steady ON. - Page 21 5V, 2.0 amps is supplied with each unit. The small DC power cord from the power supply plugs into the matching rear power jack of the DS80F and DS80C Personal Hubs. When the power is applied, the green PWR LED will illuminate.
-
Page 22: Operation
Magnum DS80F & DS80C Dual-speed Stackable Hubs OPERATION - the function and operation of the Magnum DS80F and DS80C hubs. Dual-speed functionality, and switching The Magnum DS80F and DS80C Personal Hubs provides two N-way switched ports (one of which may be 100Mb fiber) and six dual-speed half-duplex ports. The architecture supports a few users at 10/100Mbps, and a high speed up-link and/or server port typically at 100Mbps full-duplex. -
Page 23: Auto-Negotiation And Speed-Sensing
When a RJ-45 cable connection is made, and each time when a LINK is enabled, auto- negotiation takes place. The DS80F or DS80C advertises it capability for 10 or 100 Mbps speed, and the device at the other end of the cable should similarly advertise / respond and both sides will agree to the speed being used. -
Page 24: Leds
100Mb half-duplex) usable in either HDX or FDX mode as set by the user. Whereas for DS80C the switched port 2SW at “FF” position supports 100Mbps Full duplex fixed only which is useful for the fast ethernet media converter (e.g. Magnum 15E). -
Page 25: Use With Media Converters
However, if you are unsure of any procedure described in this section, or if the Magnum DS80F or DS80C hub is not operating as expected, do not attempt to repair or alter the unit. Contact your supplier or if unknown, contact GarrettCom Customer Support. -
Page 26: When Calling For Assistance
Return Material Authorization (RMA) Procedure All returns for repair must be accompanied by a Return Material Authorization (RMA) number. To obtain an RMA number, call GarrettCom Customer Service at (510) 438- 9071 during business hours in California or email to support@garrettcom.com). When calling, please have the following information readily available: Name and phone number of your contact person. -
Page 27: Shipping And Packaging Information
GarrettCom, Inc. warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of shipment by GarrettCom. During this warranty period, GarrettCom will repair or, at its option, replace components in the products that prove to be defective at no charge other than shipping and handling, provided that the product is returned pre-paid to GarrettCom.
