Magnum P62-Series Hardened Switches
3.4

Cable Strain Relief Feature on all P62-Series models

The Magnum P62-Series Hardened Switches are designed to use in extended
temperature environments, which qualifying them to be used in roadside traffic data collection
and control stations, above-the-ceiling locations in commercial buildings, etc. They are usually
mounted vertically so that the cables hang out the bottom. There is a cable strain relief feature
provided as part of the package design
The Magnum P62-Series Hardened Switches have a tie wrap holder as part of the base
plate of the unit for cable strain relief. The strain-relief feature is applicable to power cables as
well as to Ethernet cables, both twisted-pair copper and fiber. Cable tie-wraps can secure the
cables and can be attached to the base plate HOOK provided at the bottom-front of the unit. In the
event that the attached cable is pulled, the tie-wrap cable strain relief feature protects the cable
connection from coming loose. This feature provides a more reliable and robust installation and
operation.

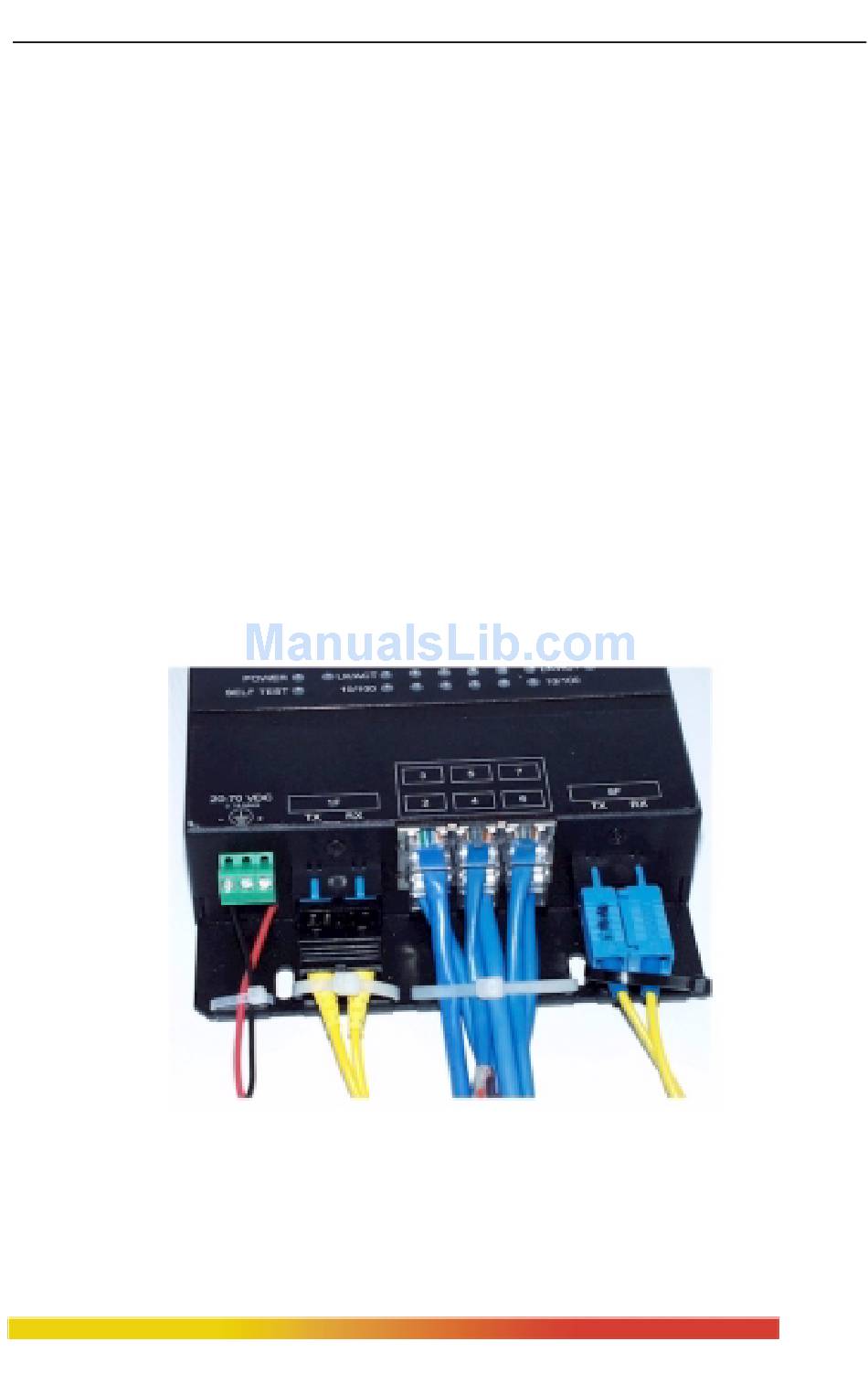

The figure below of a P62F model illustrates the strain-relief feature, using tie-wraps.
