Summary of Contents for GarrettCom P62

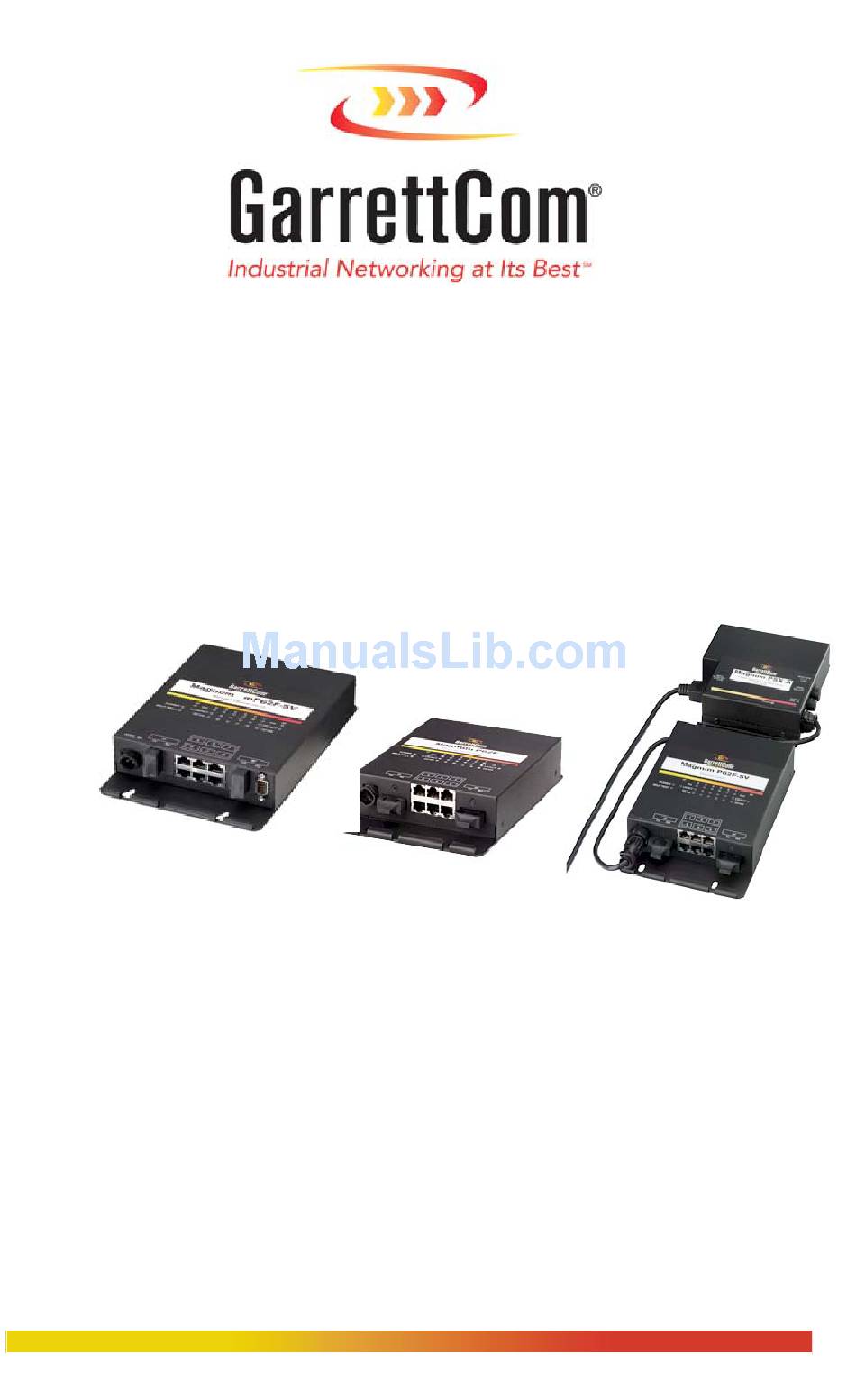

- Page 1 Magnum P62-Series (P62F and managed mP62 models) Hardened Ethernet Switches Installation and User Guide www GarrettCom com $5.00 USD...
- Page 2 Important: The Magnum P62-Series Hardened Ethernet Switches contain no user serviceable parts. Attempted service by unauthorized personnel shall render all warranties null and void. If problems are experienced with a Magnum P62-Series Hardened Switch product, consult Section 5, Troubleshooting, of this User Guide.
- Page 3 Magnum P62-Series Hardened Switches Installation and User Guide (05/05) Contacting GarrettCom, Inc Please use the mailing address, phone and fax numbers and email address listed below: GarrettCom, Inc. 47823 Westinghouse Dr. Fremont, CA 94539-7437 Phone (510) 438-9071 Fax (510) 438-9072 Website: http://www.GarrettCom.com...
- Page 4 "DESIGNED AND MANUFACTURED IN THE USA" Overview GarrettCom, Inc. offers the Magnum line of Ethernet LAN connectivity products with industry-standard functionality. Magnum products are heavy duty, feature fiber-built-in ports, and have AC and DC power options to make them suitable for a variety of Industrial and Carrier Class applications.
-
Page 5: Table Of Contents
3.3.2 Power the P62-5V models w/Ext AC Power Supply (PSX-A)... 27 3.3.3 Power the P62-5V w/DC Pwr Supply (PSX-T) at 125/250 VDC ... 28 Cable Strain Relief Feature on all P62-Series models ... 29 OPERATION ... 31 Dual-Speed Functionality, and Switching ... 31 Auto-negotiation and Speed-sensing ... - Page 6 Magnum P62-Series Hardened Switches REVISIONS Rev J 05/07: Minor updates to power substation notes and logo change Rev J 05/05: minor updates, Auto-cross(MDIX) on RJ-45 ports, DIN-Rail mounting wording Console port pin assignments added I 11/03 The DC Power input range is corrected, from 20-70VDC to 20-60VDC H 08/03 Rev G 03/03 : This revision adds the DIN-RAIL mounting options &...
-
Page 7: Specifications
Magnum P62-Series Hardened Switches SPECIFICATIONS Technical Specifications Ports Performance Fiber, and when an auto-negotiating port is operating at 100Mbps: Data Rate: 100Mbps When an RJ-45 auto-negotiating port is operating at 10 Mbps: Data Rate: 10 Mbps For mP62 models, RJ-45 ports are S/W controlled for speed and F/H duplex, crossover (MDI –... - Page 8 F/H (RJ-45 ports only): ON = full-duplex, OFF = half-duplex www GarrettCom com 24VDC and -48VDC Power Supply 125VDC & 250VDC, (PSX-T) for P62-Series -5V only AC Power Supply (PSX-A) for P62F-5V and mP62-5V 85 to 264 VAC (auto-ranging) (4.3 cm x 14.6 cm x 22.4 cm) is transmitting / receiving.
- Page 9 Magnum P62-Series Hardened Switches MTBF (Bellcore method) Over 10 years MTBF. Email Agency Approvals UL Listed (UL 60950), cUL, CB, CE Low Volt. Dir. & Electro-Magnetic Comp. IEEE P1613 Class 2 Environmental Standard for Electric Power Subs. See also Note for Power Substations in Section 2.2.5 and 3.2.1...
-
Page 10: Ordering Information
(multi-mode SC-type connector), and six half- or full-duplex switched RJ-45 10/100 auto-negotiating ports. Includes store-and-forward switching that filters and forwards data moving between the ports. The internal switch has 16K nodes address table and 1MB packet buffers. DC power input,20-60VDC auto- ranging. - Page 11 Magnum PSX-5V-CBL (spare): 2ft. power cord with military –type screw-lock connector, spare for PSX to mP62-5V power cord. MST Conversion: Special Item, convert one standard P62-2MSC w/two MSC fiber ports to two MST fiber ports. *PSX unit or equal required to supply 5VDC input. For more information, see the PSX datasheet.
-
Page 12: Introduction
(Optional, PSX-T, 125 or 250VDC) PSX-T Power Source Extended Temp. unit Remove the Magnum P62-Series Hardened Switch from the shipping container. Be sure to keep the shipping container should you need to ship the unit at a later date. To validate the product warranty, please complete and return the enclosed Product Registration Card to GarrettCom, Inc. -
Page 13: Product Description
Designed specifically to operate in uncontrolled temperature applications, the hardened Magnum P62’s high strength steel case functions as a heat sink to draw away the heat from the internal electronics and dissipate it. The efficient design of P62-Series high strength steel cases can easily handle the extreme heat of 75°C (170°F) mP62 or 70°C (160°F) P62F and extreme... -
Page 14: Magnum P62-Series Chassis W/Fiber Sc (M.m. Or S.m) Connectors
For DC-powered models, the DC power plug connector or “jack” is in the left front of the chassis. The DC Magnum P62-Series Model is typically used for power input of 24VDC or –48VDC only. The DC input power supports a wide range, from 20-60 VDC auto-ranging. -
Page 15: Managed Mp62 Chassis With Fiber Sc (M.m. Or Single-Mode) Ports
Magnum P62-Series Hardened Switches The Magnum P62-5V models are available with an External Power Source (Optional) for power input of universal AC power using the Magnum PSX-A unit. The 125/250 VDC model (PSX-T) input power supports a range of 100-275VDC and comes with input safety shield, fuses, and is diode-protected against accidental reverse polarity connection. -
Page 16: Managed Network Software ( Mns-Mp ) For Magnum Mp62
Magnum P62-Series Hardened Switches The serial (Console) port is provided on the right front of the Managed mP62 Switch to use the Console Management Interface(CMI) to manage all functions of the switch. In addition, the Link-Loss-Learn operating recovery from a link loss. The Link-Loss-Learn feature of the Magnum mP62 Ethernet Switch addresses issues that can occur when mP62’s are used in redundant network... -
Page 17: Connecting The Console Terminal To Magnum Mp62 (Management)
: mpuser password : mpuser All the MNS-mP Software related information and NEW releases related to MNS-mP Software and Hardware for mP62’s can be accessed and download from Garrettcom’s FTP site. www.GarrettCom.com/techsupport/index.htm#software Or please visit and look for Magnum mP62’s MNS-mP software support information. -
Page 18: Fiber Port, Sc Connectors
The Fast Ethernet fiber switched ports on the Magnum P62-Series operate at fixed 100Mb speed and full-duplex mode for the best performance. The P62’s fiber ports are factory-built as either a multi-mode or single-mode SC connector. A yellow label on the fiber port... -
Page 19: Frame Buffering And Latency
A fiber port of a P62F is shown here, P62-Series unit via a cable. A proper link (LK light) must be made between both devices at each end of the cable in order for each LINK LED to provide a valid indication of operating conditions. - Page 20 This dynamic buffer allocation provides the capability for the maximum resources of the Magnum P62-Series unit to be applied to all traffic loads, even when the traffic activity is unbalanced across the ports. Since the traffic on an operating network is constantly varying in packet density per port and in aggregate density, the Magnum P62-Series Hardened Switches are constantly adapting internally to provide maximum network performance with the least dropped packets.
-
Page 21: Features And Benefits
No Media Converters needed. All RJ-45 ports are auto-negotiating, support 10/100 full / half duplex The auto-negotiating RJ-45 ports on P62-Series, with 10 or 100Mb speed and full / half-duplex mode selected by Ethernet standard IEEE 802.3u... -
Page 22: Applications
Some local users (using RJ-45 ports) may operate at 100Mbps, and some users and utility devices may run at 10 Mbps. A Magnum P62-Series Hardened Switch serves this requirement economically and efficiently. The six full- and half-duplex switched ports make the required setup simple for collection of traffic data. - Page 23 Magnum P62-Series Hardened Switches Example 2. The Magnum P62F fits very well in high temperature locations (control rooms) experiencing a need to scale its LAN quickly and cost effectively. With its half / full duplex switching capability, the P62F provides a very economical high bandwidth solution at each copper-cable user-access point.
- Page 24 The managed mp62 Hardened Switch is specially designed to operate in uncontrollable temperature applications and its wide variety of AC/DC options also qualify this hardened Switch to deploy in harsh applications.
-
Page 25: Installation
Magnum P62s support DC power input for high reliability and AC power for convenience in out-of-the way locations. Locate the P62-Series unit near any AC power (or any 20-60VDC three-wire (+, GND, -) power source for DC models) that is within the range of the unit. - Page 26 The PSX Power Source mounting is similar. The mechanical drawings in Figures 1 & 2 below provide the mounting holes measurement information for the PSX unit (mounted on top, if present) and for the Magnum P62-Series unit. Fig. 1...
-
Page 27: Connecting Ethernet Media, And Special Strain-Relief Feature
Connecting Ethernet Media, and Special Strain-relief feature Note – see also “Cable Strain Relief Feature, Section 3.4. The Magnum P62-Series Ethernet Switches (P62F model illustrated here) can be cabling can be used, whereas for single-mode, 9/125 microns cabling should be used. Fiber cabling supports much longer cable distances and higher bandwidth than copper wiring. -
Page 28: Connecting Fiber Optic Sc-Type, "Snap-In
RJ-45 ports are intended for connectivity to other communication equipment such as routers or telecommunication multiplexers installed in close proximity (i.e., less than 2 meters or 6.5ft) to the (m)P62(F). It is not recommended to use these ports in substation applications to interface to field devices across distances which could produce kigh (greater than 2500V ) levels of ground potential rise (GPR) during line-to-ground fault conditions. -
Page 29: Connecting Single-Mode Fiber Optic
Follow the steps listed in Section 3.2.2 above. 3.2.5 Power Budget Calculations for P62-Series Fiber Media Receiver Sensitivity and Transmitter Power are the parameters necessary to compute the power budget. To calculate the power budget of different fiber media installations using... -
Page 30: Connections To Nics Which Support Auto-Negotiation, Rj-45 Ports
Magnum P62 Switch (as shown in Figure above) The DC terminal block on the Magnum P62-Series Hardened Switch is located on the left front of the unit and is equipped with three (3) screw-down lead posts. The power terminals are identified as positive (+) and negative (-), and they are floating inside the unit so that either may be grounded by the user if desired. -
Page 31: Power The P62-5V Models W/Ext Ac Power Supply (Psx-A)
3.3.2 Power the P62-5V models w/Ext AC Power Supply (PSX-A) The rugged Magnum P62-5V Hardened Switch, mainly used in “outdoor” Ethernet applications at extended temperatures, also supports universal AC power input from 85-275 vac 50-60Hz through a separate Power Source unit, the PSX-A. The wide range of AC power input qualifies this product for use worldwide, in almost any temperature environment. -
Page 32: Power The P62-5V W/Dc Pwr Supply (Psx-T) At 125/250 Vdc
3.3.3 Power the P62-5V w/DC Pwr Supply (PSX-T) at 125/250 VDC The rugged Magnum P62-5V Hardened Switch also supports 125V/250 VDC power through a separate Power Source unit, the PSX-T. The wide range of AC power input qualifies this product for use worldwide, in almost any temperature environment. The 125/250 VDC power source (PSX-T) provides a rugged power supply enclosed in a metal case that also acts as a heat sink, enabling extended temperatures to be accommodated. -
Page 33: Cable Strain Relief Feature On All P62-Series Models
Cable Strain Relief Feature on all P62-Series models The Magnum P62-Series Hardened Switches are designed to use in extended temperature environments, which qualifying them to be used in roadside traffic data collection and control stations, above-the-ceiling locations in commercial buildings, etc. They are usually mounted vertically so that the cables hang out the bottom. - Page 34 / low temperatures. In order to mount the P62-Series on a flat panel or wall, see Section 3.1.2 above. In order to mount the P62-Series on a DIN-RAIL track, order the optional bracket Model # DIN-RAIL-P62 and use the DIN-Rail mounting bracket procedure as illustrated in the picture below.
-
Page 35: Operation
100Mbps Ethernet, and can communicate with 10Mb domain too. All Magnum P62 units are plug-and-play devices. There is no software configuration to be done at installation or for maintenance. The Half / full duplex mode for the RJ-45 switched RJ- 45 ports is user dependent and changes (by auto-negotiation) to full or half duplex as the unit attached with these ports. -
Page 36: Auto-Negotiation And Speed-Sensing
The Magnum P62-Series units have an address table capacity of 4K node addresses, and are suitable for use in large networks. They are self-learning, so that as nodes are added or removed or moved from one segment to another, the P62-Series automatically keeps up with node locations. -
Page 37: Led's For P62-Series Hardened Switch
In such cases, the 10/100 speed or the F/H mode may be affected, but auto-cross in themp62 Switches will still work. -
Page 38: Troubleshooting
However, if you are unsure of the procedures described in this section or if the Magnum P62-Series Hardened Switch is not performing as expected, do not attempt to repair the unit; instead contact your supplier for assistance or contact GarrettCom Customer Support. -
Page 39: When Calling For Assistance
The components involved in the problem; d. Any particular application that, when used, appears to create the problem; An accurate list of GarrettCom product model(s)involved, with serial number(s). Include the date(s) that you purchased the products from your supplier. -
Page 40: Shipping And Packaging Information
GarrettCom, Inc. warrants its products to be free from defects in materials and workmanship for a period of three (3) years from the date of shipment by GarrettCom. During this warranty period, GarrettCom will repair or, at its option, replace components in the products that prove to be defective at no charge other than shipping and handling, provided that the product is returned pre-paid to GarrettCom.
