Magnum P62-Series Hardened Switches
20.1cm) center-to-center. Four user-supplied screws, ¼" max diameter, attach the P62'S base
plate to the vertical mounting surface. The PSX Power Source mounting is similar. The
mechanical drawings in Figures 1 & 2 below provide the mounting holes measurement
information for the PSX unit (mounted on top, if present) and for the Magnum P62-Series unit.

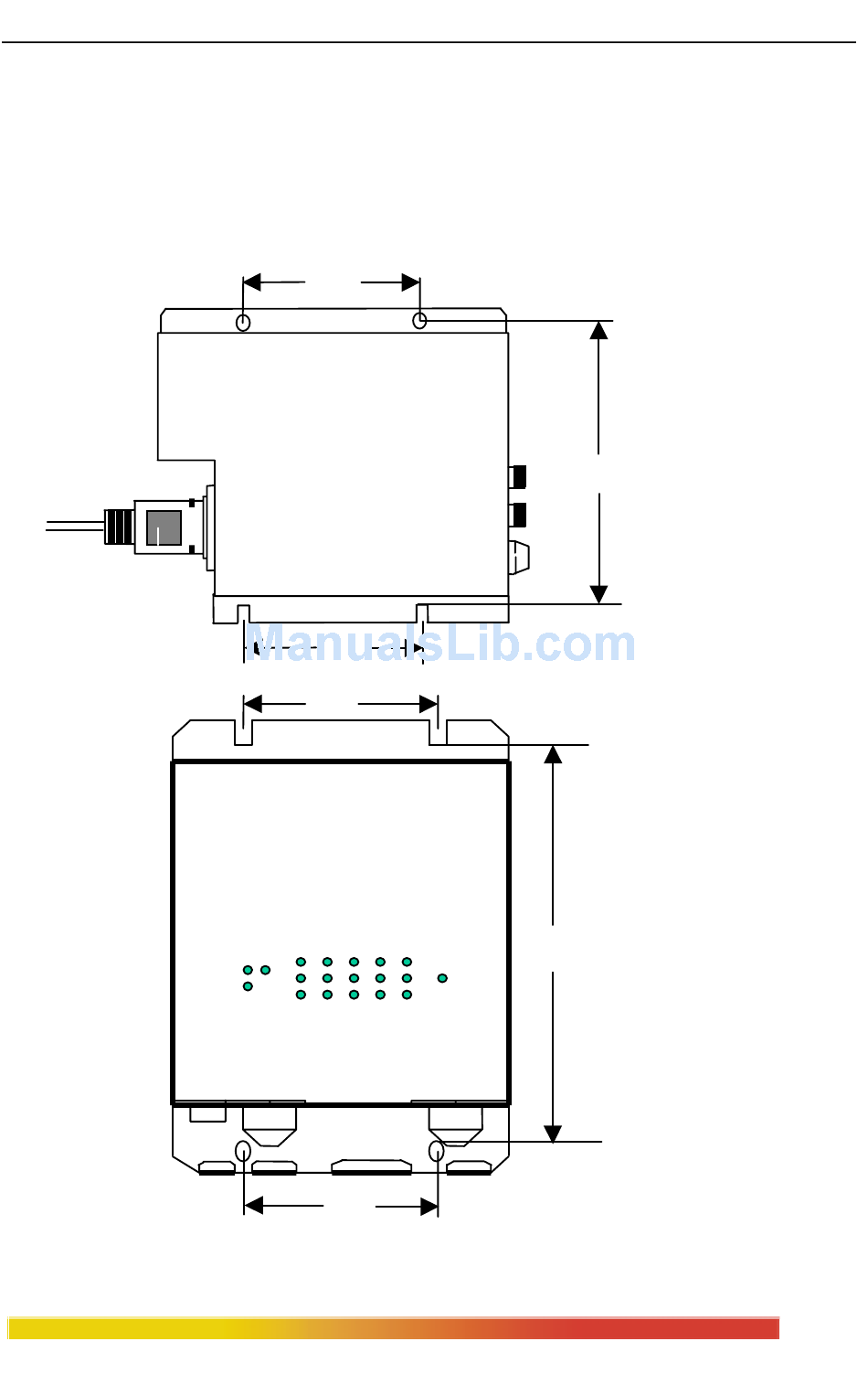

Fig 1.
Mounting Hole Dimensions, inches & (cm)
www GarrettCom com .
3.35" (8.5)
3.35" (8.5)
3. 35" (8.5)
3. 35" (8.5)
.
Installation and User Guide (12/02)
6.13" (15.68)
7. 92" (20.1)
20
Fig. 2
