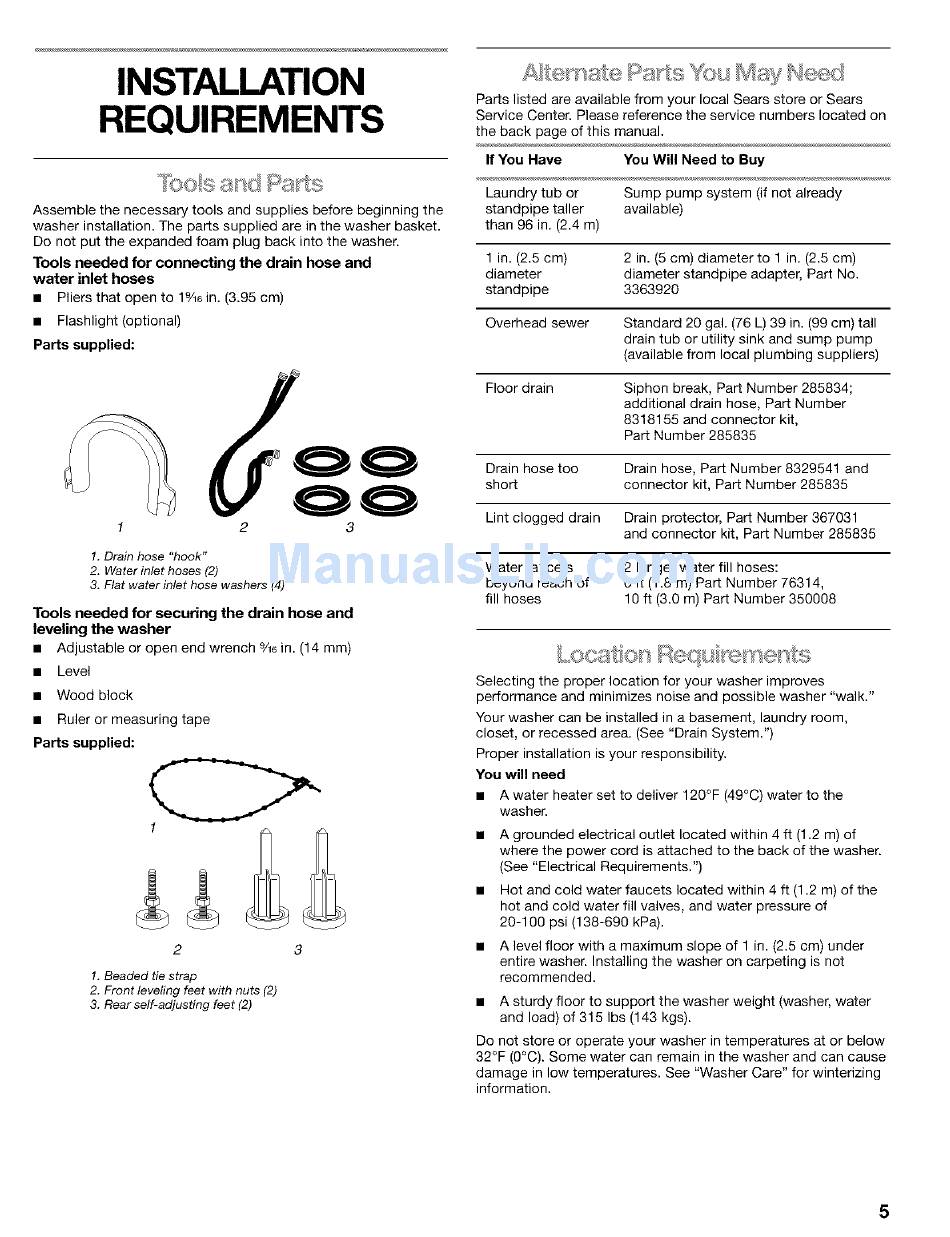

INSTALLATION
REQUIREMENTS
Assemble the necessary tools and supplies before beginning the
washer installation. The parts supplied are in the washer basket.
Do not put the expanded foam plug back into the washer.
Tools needed for connecting the drain hose and
water inlet hoses
• Pliers that open to 19/16 in. (3.96 cm)
• Flashlight (optional)
Parts supplied:
2
3
1. Drain hose "hook"
2. Water inlet hoses (2)
3. Flat water inlet hose washers (4)
Tools needed for securing the drain hose and
leveling the washer
• Adjustable or open end wrench %8 in. (14 ram)
• Level
• Wood block
• Ruler or measuring tape
Parts supplied:
1
2 3
1. Beaded tie strap
2. Front leveling feet with nuts (2)
3. Rear self-adjusting feet (2)
Parts listed are available from your local Sears store or Sears
Service Center. Please reference the service numbers located on
the back page of this manual.
If You Have You Will Need to Buy
Laundry tub or Sump pump system (if not already
standpipe taller available)
than 96 in. (2.4 m)
1 in. (2.5 cm) 2 in. (5 cm) diameter to 1 in. (2.6 cm)
diameter diameter standpipe adapter, Part No.
standpipe 3363920
Overhead sewer Standard 20 gal. (76 L) 39 in. (99 cm) tall
drain tub or utility sink and sump pump
(available from local plumbing suppliers)
Floor drain Siphon break, Part Number 285834;
additional drain hose, Part Number
8318155 and connector kit,
Part Number 285835
Drain hose too Drain hose, Part Number 8329541 and
short connector kit, Part Number 285835
Lint clogged drain Drain protector, Part Number 367031
and connector kit, Part Number 285835
Water faucets 2 longer water fill hoses:
beyond reach of 6 ft (1.8 m) Part Number 76314,
fill hoses 10 ft (3.0 m) Part Number 350008
,,,eta 0
equ
e }l:s
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer "walk."
Your washer can be installed in a basement, laundry room,
closet, or recessed area. (See "Drain System.")
Proper installation is your responsibility.
You will need
• A water heater set to deliver 120°F (49°C) water to the
washer.
A grounded electrical outlet located within 4 ft (1.2 m) of
where the power cord is attached to the back of the washer.
(See "Electrical Requirements.")
Hot and cold water faucets located within 4 ft (1.2 m) of the
hot and cold water fill valves, and water pressure of
20-100 psi (138-690 kPa).
A level floor with a maximum slope of 1 in. (2.5 cm) under
entire washer. Installing the washer on carpeting is not
recommended.
• A sturdy floor to support the washer weight (washer, water
and load) of 315 Ibs (143 kgs).
Do not store or operate your washer in temperatures at or below
32°F (0°C). Some water can remain in the washer and can cause
damage in low temperatures. See "Washer Care" for winterizing
information.
5
