Connect The Inlet Hoses - Kenmore Two-speed automatic washers Owner's Manual & Installation Instructions

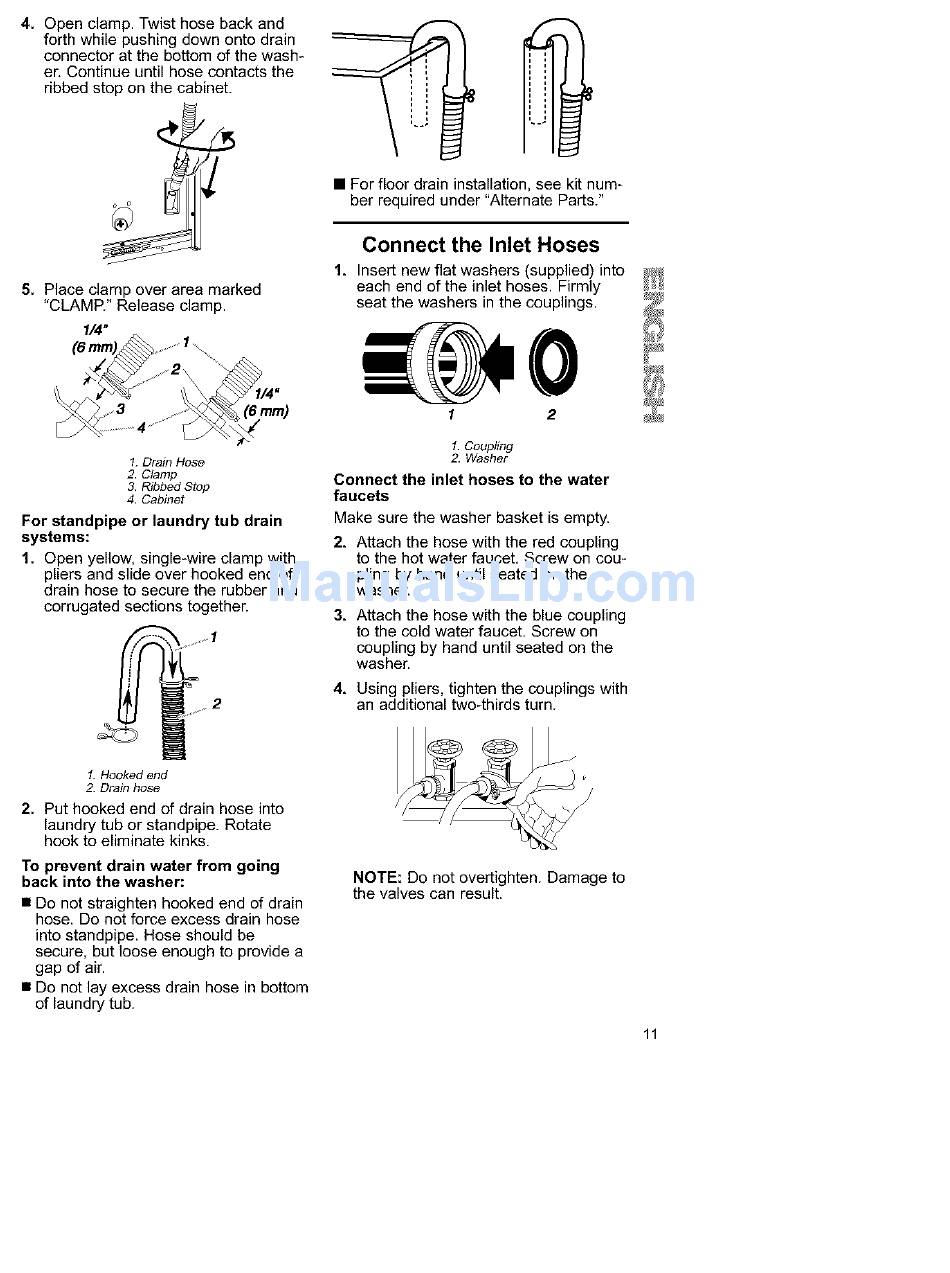

4. Open clamp. Twist hose back and
forth while pushing down onto drain
connector at the bottom of the wash-
er, Continue until hose contacts the
ribbed stop on the cabinet.
Y
5. Place clamp over area marked
"CLAMR" Release clamp.
1/4"
1. Drain Hose
2. Clamp
3. Ribbed Stop
4. Cabinet
For standpipe or laundry tub drain
systems:
1. Open yellow, single-wire clamp with
pliers and slide over hooked end of
drain hose to secure the rubber and
corrugated sections together.
• For floor drain installation, see kit num-
ber required under "Alternate Parts."
1,
Connect the Inlet Hoses
Insert new flat washers (supplied) into
each end of the inlet hoses. Firmly _
seat the washers in the couplings.
1 2
1. Coupling
2. Washer
Connect the inlet hoses to the water
faucets
Make sure the washer basket is empty.
2, Attach the hose with the red coupling
to the hot water faucet, Screw on cou-
pling by hand until seated on the
washer.
3, Attach the hose with the blue coupling
to the cold water faucet, Screw on
coupling by hand until seated on the
washer.
4, Using pliers, tighten the couplings with
an additional two4hirds turn.
1. Hooked end
2. Drain hose
2. Put hooked end of drain hose into
laundry tub or standpipe. Rotate
hook to eliminate kinks.
To prevent drain water from going
back into the washer:
• Do not straighten hooked end of drain
hose. Do not force excess drain hose
into standpipe. Hose should be
secure, but loose enough to provide a
gap of air.
• Do not lay excess drain hose in bottom
of laundry tub.
NOTE: Do not overtighten. Damage to
the valves can result.
