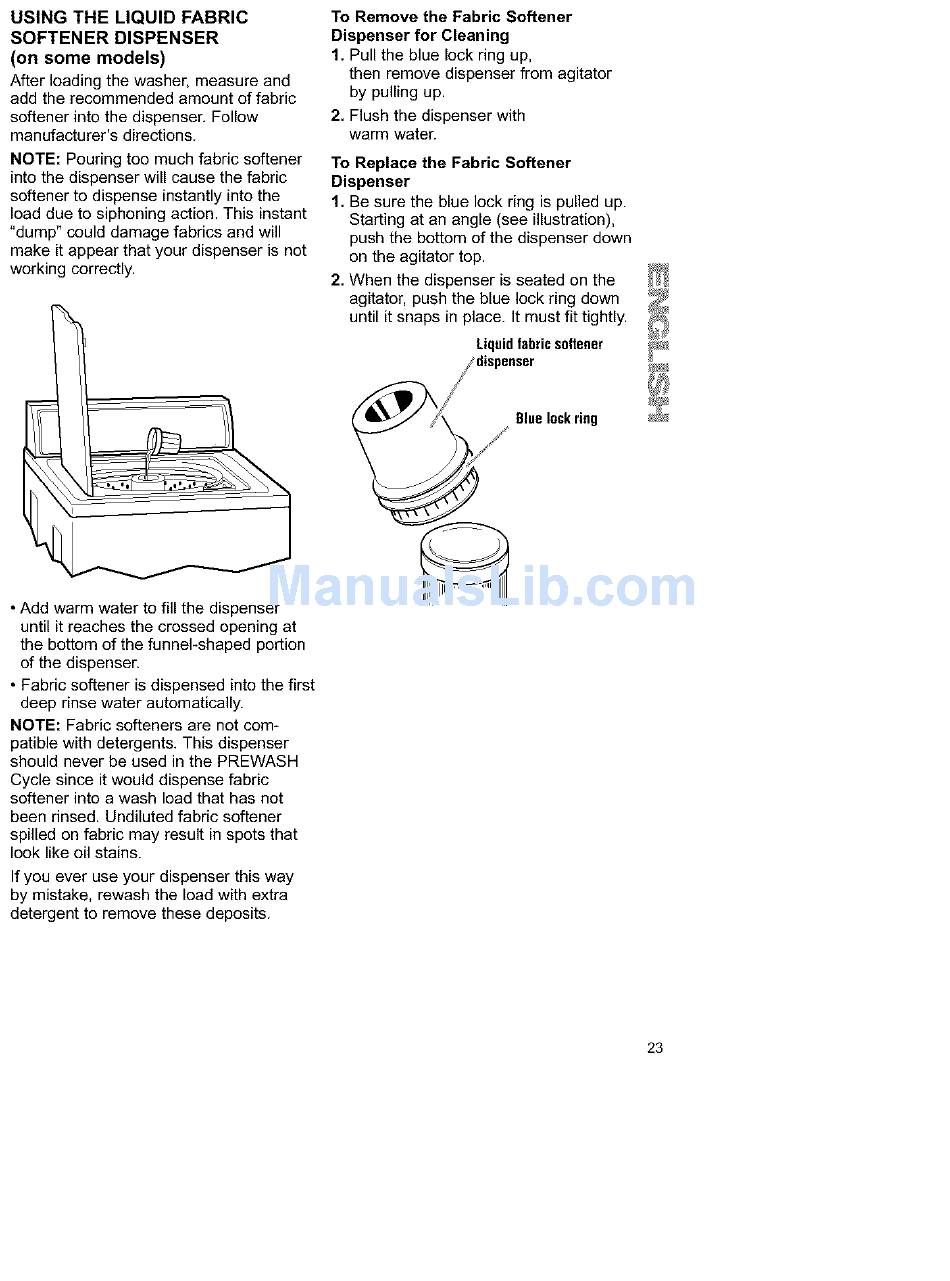

Kenmore Two-speed automatic washers Owner's Manual & Installation Instructions page 23

USING THE LIQUID FABRIC
SOFTENER DISPENSER
(on some models)
After loading the washer, measure and
add the recommended amount of fabric
softener into the dispenser, Follow
manufacturer's directions.
NOTE: Pouring too much fabric softener
into the dispenser will cause the fabric
softener to dispense instantly into the
load due to siphoning action. This instant
"dump" could damage fabrics and will
make it appear that your dispenser is not
working correctly.
To Remove the Fabric Softener
Dispenser for Cleaning
1. Pull the blue lock ring up,
then remove dispenser from agitator
by pulling up.
2. Flush the dispenser with
warm water.
To Replace the Fabric Softener
Dispenser
1. Be sure the blue lock ring is pulled up.
Starting at an angle (see illustration),
push the bottom of the dispenser down
on the agitator top.
2. When the dispenser is seated on the
agitator, push the blue lock ring down
until it snaps in place. It must fit tightly.
Liquid fabricsoftener
/dispenser
J
\ Bluelockring
• Add warm water to fill the dispenser
until it reaches the crossed opening at
the bottom of the funnel-shaped portion
of the dispenser.
• Fabric softener is dispensed into the first
deep rinse water automatically.
NOTE: Fabric softeners are not com-
patible with detergents. This dispenser
should never be used in the PREWASH
Cycle since it would dispense fabric
softener into a wash load that has not
been rinsed, Undiluted fabric softener
spilled on fabric may result in spots that
look like oil stains.
If you ever use your dispenser this way
by mistake, rewash the load with extra
detergent to remove these deposits.
23
