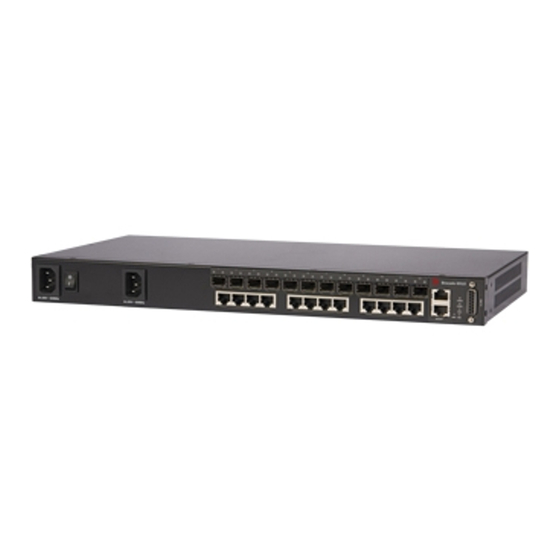

Ethernet access switch
Hide thumbs Also See for 6910:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
53-1002582-01
®
9 May 2012
Brocade 6910
Ethernet Access Switch
MIB Reference
Supporting R2.1.0.x

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 6910 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brocade Communications Systems 6910

Summary of Contents for Brocade Communications Systems 6910

  • Page 1 53-1002582-01 ® 9 May 2012 Brocade 6910 Ethernet Access Switch MIB Reference Supporting R2.1.0.x...
  • Page 2 Export of technical data contained in this document may require an export license from the United States government. The authors and Brocade Communications Systems, Inc. shall have no liability or responsibility to any person or entity with respect to any loss, cost, liability, or damages arising from the information contained in this book or the computer programs that accompany it.
  • Page 3 Brocade 6910 Ethernet Access Switch 53-1002347-02 Added documentation fixes for November 2011 MIB Reference Brocade 6910 Ethernet Access Switch Software Release 2.0.2.9 Brocade 6910 Ethernet Access Switch 53-1002347-01 New document September 2011 MIB Reference Brocade 6910 Ethernet Access Switch MIB Reference 53-1002582-01...
  • Page 4 Brocade 6910 Ethernet Access Switch MIB Reference 53-1002582-01...

  • Page 5: Table Of Contents

    Supported Standard MIBs Supported on Brocade 6910 switches ......5 RFC compliance - management ......5 IEEE standards .
  • Page 6 TACACS server table ........35 Brocade 6910 Ethernet Access Switch MIB Reference...
  • Page 7 Traps and Objects to Enable Traps Objects for Brocade 6910 switch traps ..... . . 57 Trap information........57 Trap receiver table .
  • Page 8 RMON event traps ........62 MIB Variable Index viii Brocade 6910 Ethernet Access Switch MIB Reference 53-1002582-01...

  • Page 9: About This Document

    Document feedback ..........xi Supported hardware and software This guide describes the Brocade 6910 Ethernet Access Switch 2.1.0.x release. The following hardware platforms are supported by the release of this guide: •...

  • Page 10: Document Conventions

    ATTENTION An Attention statement indicates potential damage to hardware or data. Related publications The following Brocade Communications Systems, Inc. documents supplement the information in this guide and can be located at http://www.brocade.com/ethernetproducts. • Brocade 6910 Ethernet Access Switch Installation Guide •...

  • Page 11: Getting Technical Help

    Forward your feedback to: documentation@brocade.com Provide the title and version number of the document and as much detail as possible about your comment, including the topic heading and page number and your suggestions for improvement. Brocade 6910 Ethernet Access Switch MIB Reference 53-1002582-01...
