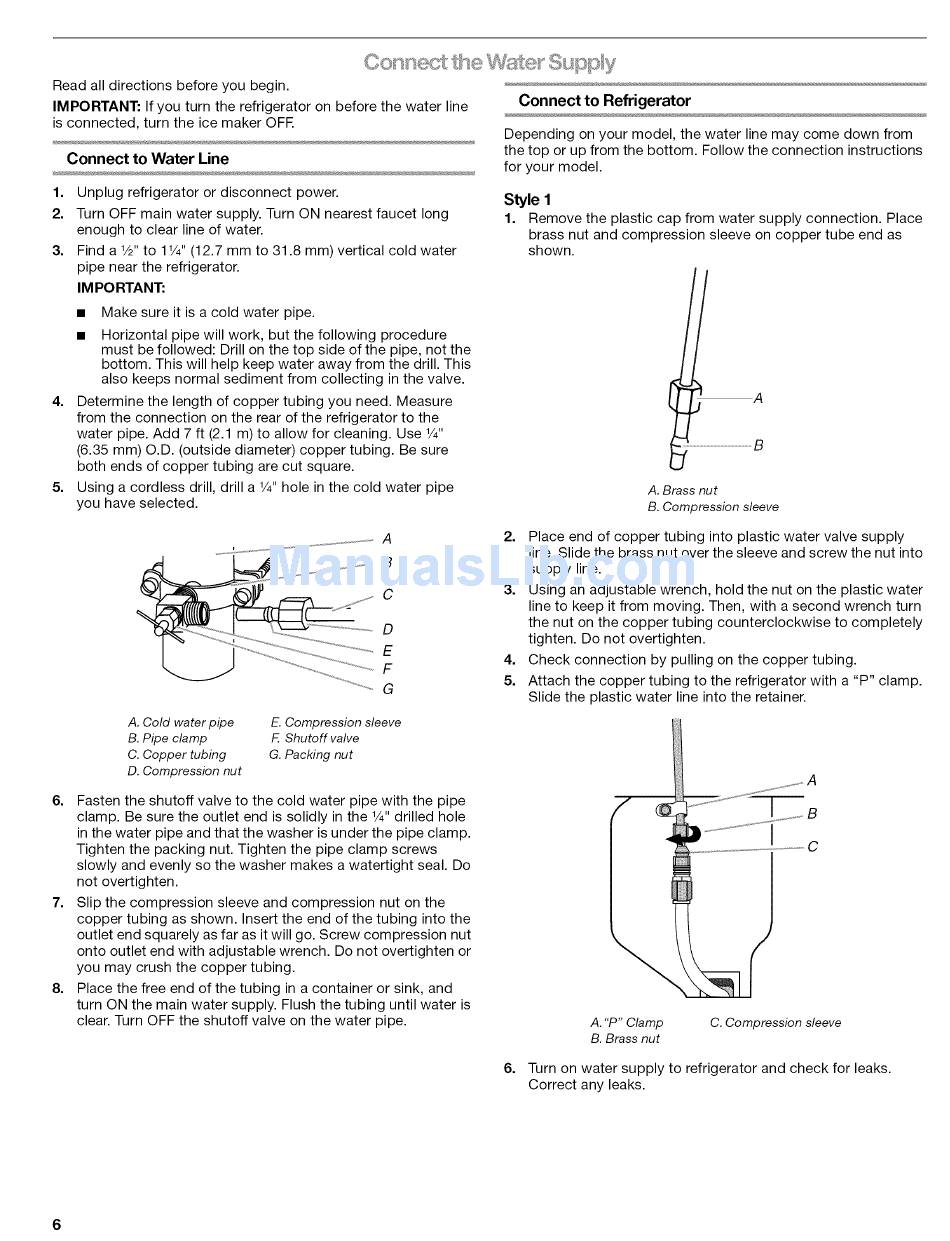

Connect The Water Supply - Kenmore Bootom-Mount Refrigerator Use & Care Manual

Read all directions before you begin.
IMPORTANT: If you turn the refrigerator on before the water line
is connected, turn the ice maker OFE
Connect to Water Line
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn ON nearest faucet long
enough to clear line of water.
3. Find a 1/2"to lY4" (12.7 mm to 31.8 mm) vertical cold water
pipe near the refrigerator.
IM PO RTANT:
Connect to Refrigerator
Depending on your model, the water line may come down from
the top or up from the bottom. Follow the connection instructions
for your model.
Style 1
1. Remove the plastic cap from water supply connection. Place
brass nut and compression sleeve on copper tube end as
shown.
4=
5.
• Make sure it is a cold water pipe.
• Horizontal pipe will work, but the following procedure
must be followed: Drill on the top side of the pipe, not the
bottom. This will help keep water away from the drill. This
also keeps normal sediment from collecting in the valve.
Determine the length of copper tubing you need. Measure
from the connection on the rear of the refrigerator to the
water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use 1/4"
(6.35 mm) O.D. (outside diameter) copper tubing. Be sure
both ends of copper tubing are cut square.
Using a cordless drill, drill a 1/4"hole in the cold water pipe
you have selected.
B
A. Brass nut
B. Compression sleeve
C
D
E
F
G
A. Cold waterpipe
B. Pipe clamp
C. Copper tubing
D. Compression nut
E. Compression sleeve
F. Shutoff valve
G. Packing nut
2. Place end of copper tubing into plastic water valve supply
line. Slide the brass nut over the sleeve and screw the nut into
supply line.
3. Using an adjustable wrench, hold the nut on the plastic water
line to keep it from moving. Then, with a second wrench turn
the nut on the copper tubing counterclockwise to completely
tighten. Do not overtighten.
4. Check connection by pulling on the copper tubing.
5. Attach the copper tubing to the refrigerator with a "P" clamp.
Slide the plastic water line into the retainer.
6. Fasten the shutoff valve to the cold water pipe with the pipe
clamp. Be sure the outlet end is solidly in the 1/4"drilled hole
in the water pipe and that the washer is under the pipe clamp.
Tighten the packing nut. Tighten the pipe clamp screws
slowly and evenly so the washer makes a watertight seal. Do
not overtighten.
7. Slip the compression sleeve and compression nut on the
copper tubing as shown. Insert the end of the tubing into the
outlet end squarely as far as it will go. Screw compression nut
onto outlet end with adjustable wrench. Do not overtighten or
you may crush the copper tubing.
8. Place the free end of the tubing in a container or sink, and
turn ON the main water supply. Flush the tubing until water is
clear. Turn OFF the shutoff valve on the water pipe.
/
\
A. "P" Clamp
B. Brass nut
C. Compression sleeve
6. Turn on water supply to refrigerator and check for leaks.
Correct any leaks.
6
