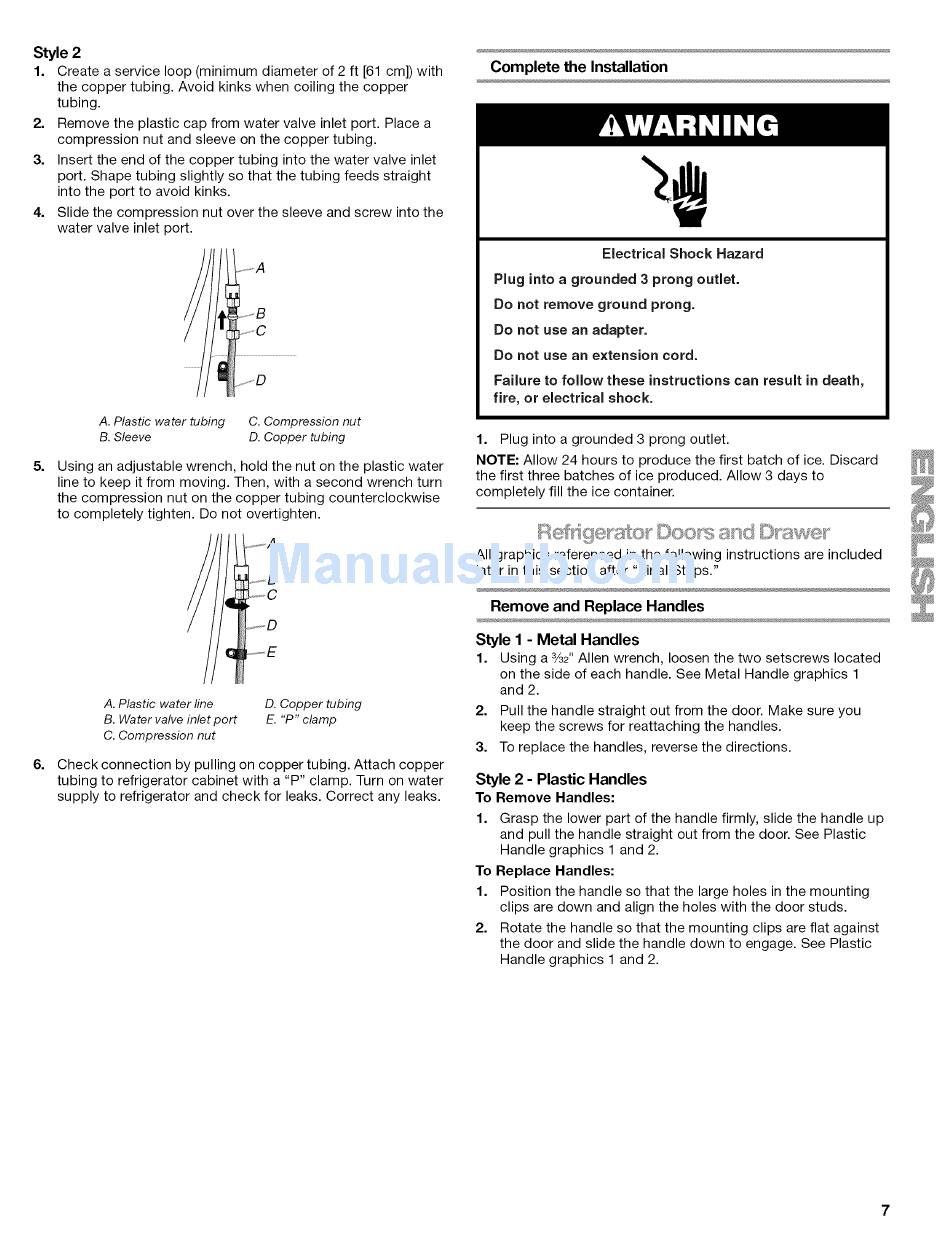

Style 2
1. Create a service loop (minimum diameter of 2 ft [61 cm]) with
the copper tubing. Avoid kinks when coiling the copper
tubing.
2. Remove the plastic cap from water valve inlet port. Place a
compression nut and sleeve on the copper tubing.
3. Insert the end of the copper tubing into the water valve inlet
port. Shape tubing slightly so that the tubing feeds straight
into the port to avoid kinks.
4. Slide the compression nut over the sleeve and screw into the
water valve inlet port.
5.
A. Plastic water tubing
B. Sleeve
C. Compression nut
D. Copper tubing
Using an adjustable wrench, hold the nut on the plastic water
line to keep it from moving. Then, with a second wrench turn
the compression nut on the copper tubing counterclockwise
to completely tighten. Do not overtighten.
6.
A. Plastic water line
B. Water valve inlet port
C. Compression nut
D. Copper tubing
E. "P" clamp
Check connection by pulling on copper tubing. Attach copper
tubing to refrigerator cabinet with a "P" clamp. Turn on water
supply to refrigerator and check for leaks. Correct any leaks.
Complete the Installation
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
1. Plug into a grounded 3 prong outlet.
NOTE: Allow 24 hours to produce the first batch of ice. Discard
the first three batches of ice produced. Allow 3 days to
completely fill the ice container.
All graphics referenced in the following instructions are included
later in this section after "Final Steps."
Remove and Replace Handles
Style 1 - Metal Handles
1. Using a 3/32" A llen wrench, loosen the two setscrews located
on the side of each handle. See Metal Handle graphics 1
and 2.
2. Pull the handle straight out from the door. Make sure you
keep the screws for reattaching the handles.
3. To replace the handles, reverse the directions.
Style 2 - Plastic Handles
To Remove Handles:
1. Grasp the lower part of the handle firmly, slide the handle up
and pull the handle straight out from the door. See Plastic
Handle graphics 1 and 2.
To Replace Handles:
1. Position the handle so that the large holes in the mounting
clips are down and align the holes with the door studs.
2. Rotate the handle so that the mounting clips are flat against
the door and slide the handle down to engage. See Plastic
Handle graphics 1 and 2.
7
