Qbb Center Bar Color Code (Cabinet Rear) - Compaq AlphaServer GS80 User Manual

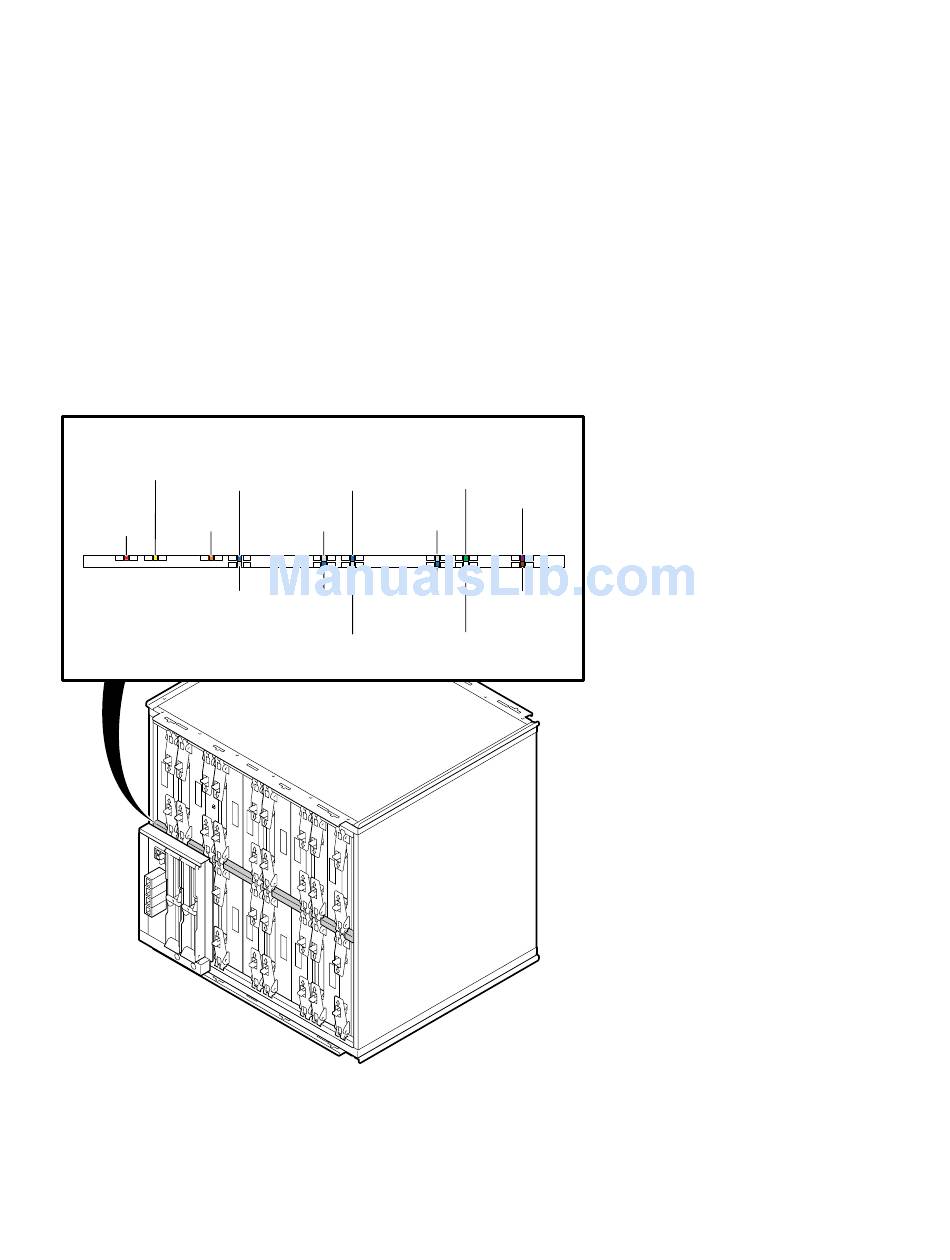

Figure 3–8 QBB Center Bar Color Code (Cabinet Rear)
Main
Power
CPU 0
(Yellow)
(Blue)
Auxiliary
PSM
Power
(Orange)
(Red)
Memory 0
(Gray)
Clock
Splitter
CPU 2
(Green)
(Blue)
Memory 1 Memory 2
(Gray) (Gray)
CPU 1 CPU 3
(Blue) (Blue)
Memory 3 Directory
(Gray) (White)
GS160/320 System Configuration Rules
Global
Port 1
Global
Port 0
PK2229
3-13
