5.2

Rack Power System

Figure 5–2 shows a two-drawer rack power system: two AC input boxes
and two H7504 power subracks at the bottom of the cabinet.
subrack holds three power supplies. The system drawer power cables
connect to the power subrack.

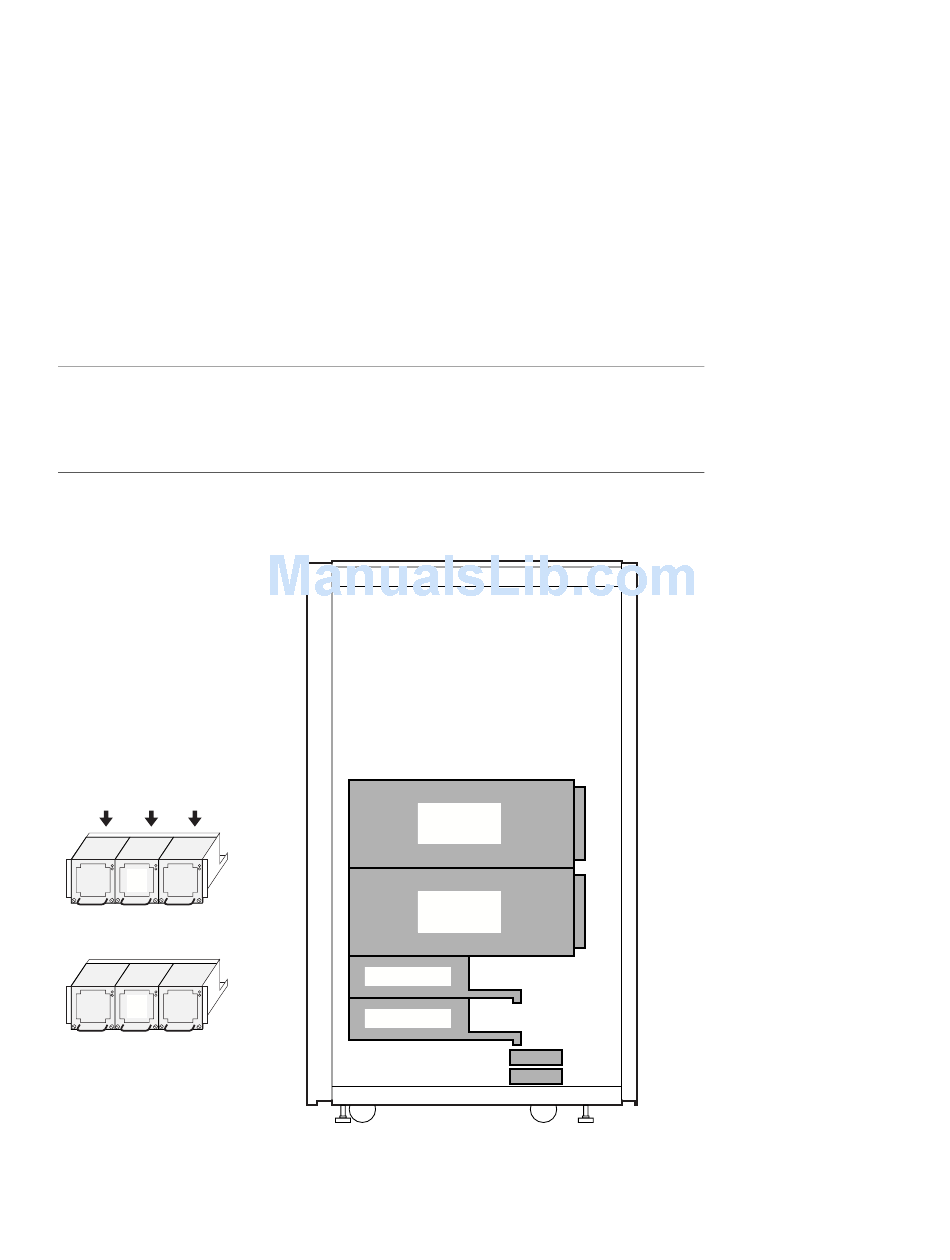

Figure 5–2 Two-Drawer Rack Power System
Power Supply Positions
1 2 3
R
Power Subrack 2
R
Power Subrack 1
R
Redundant Power
Supply Location
5-4 AlphaServer GS80/160/320 User's Guide
Drawer 2
Drawer 1
H7504 (2)
H7504 (1)
AC Input Box 2
AC Input Box 1
Each
PK-0638-99
