Magellan MobileMapper - GPS Software User Manual page 18

Satellite Signal
Strength Chart:
Clear bars indicate that
the unit is starting to
get information from
satellites. Solid bars
indicate that the satel-
lites are being used to
compute your position.
Satellite Position Graph:
The 2 circles indicate
satellite elevation as
seen from your current
position. The outer cir-
cle represents the hori-
zon and the inner circle
represents 45° from
the horizon. The cen-
ter of the circle is 90°
from the horizon, or
directly overhead.
10
6. To complete the initialization process, press
ENTER again. The Satellite Status screen is dis-
played and MobileMapper Pro begins acquiring
the data from satellites.
Watching the bars appear and turn solid on the screen,
you can progressively see the unit lock onto satellites.
Satellite Positions
in the Sky & Numbers
(W for WAAS
or EGNOS)
Once the first position fix has been computed, the Map
screen is automatically displayed. This screen shows a
map of the area where you are located. Your current posi-
tion is represented by a triangle located at the center of
the screen (see also page 36).
Initialization is now complete and you can proceed to your
job.

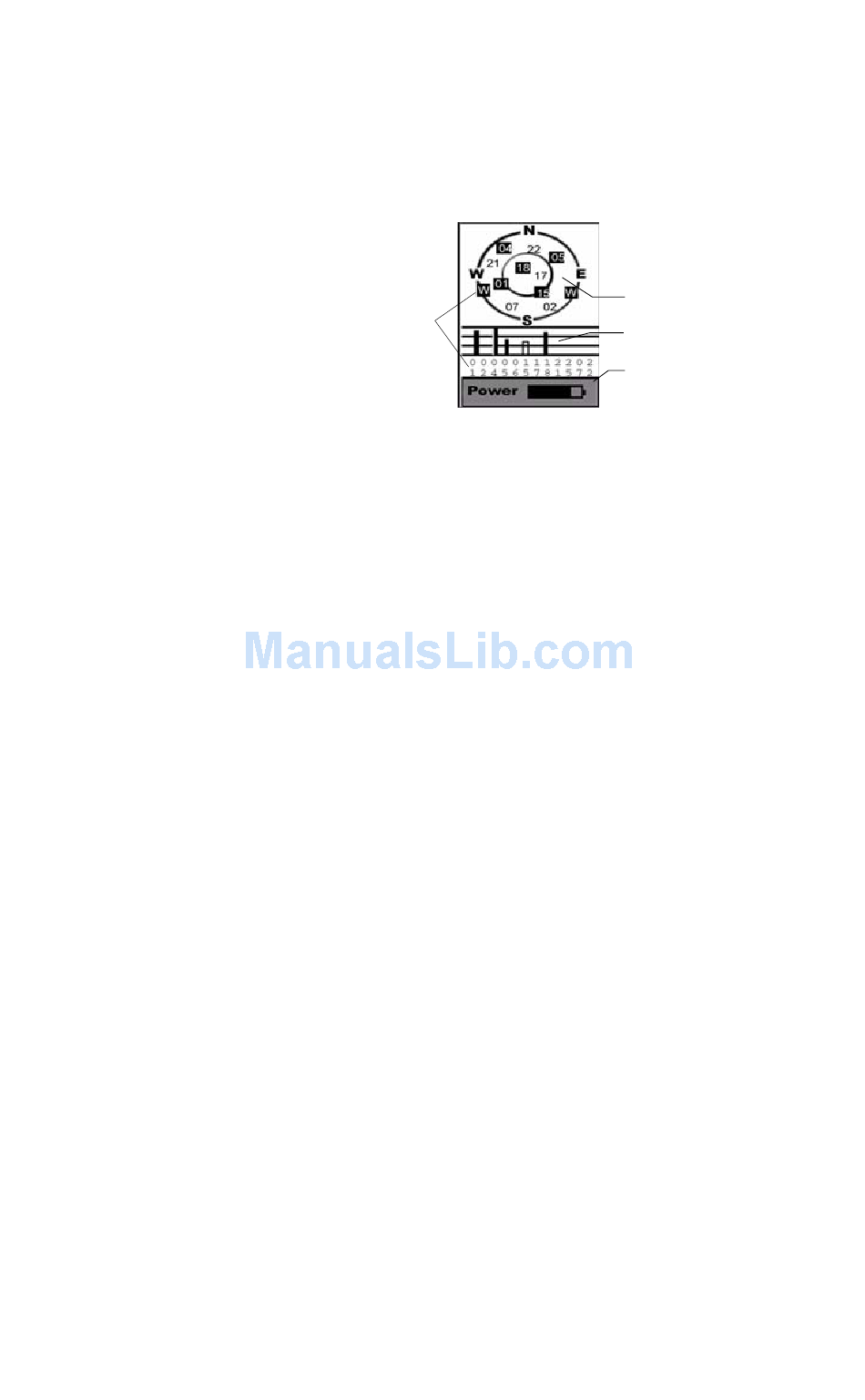

Satellite Position Graph
Satellite Signal Strength Chart
Battery Life Indicator
