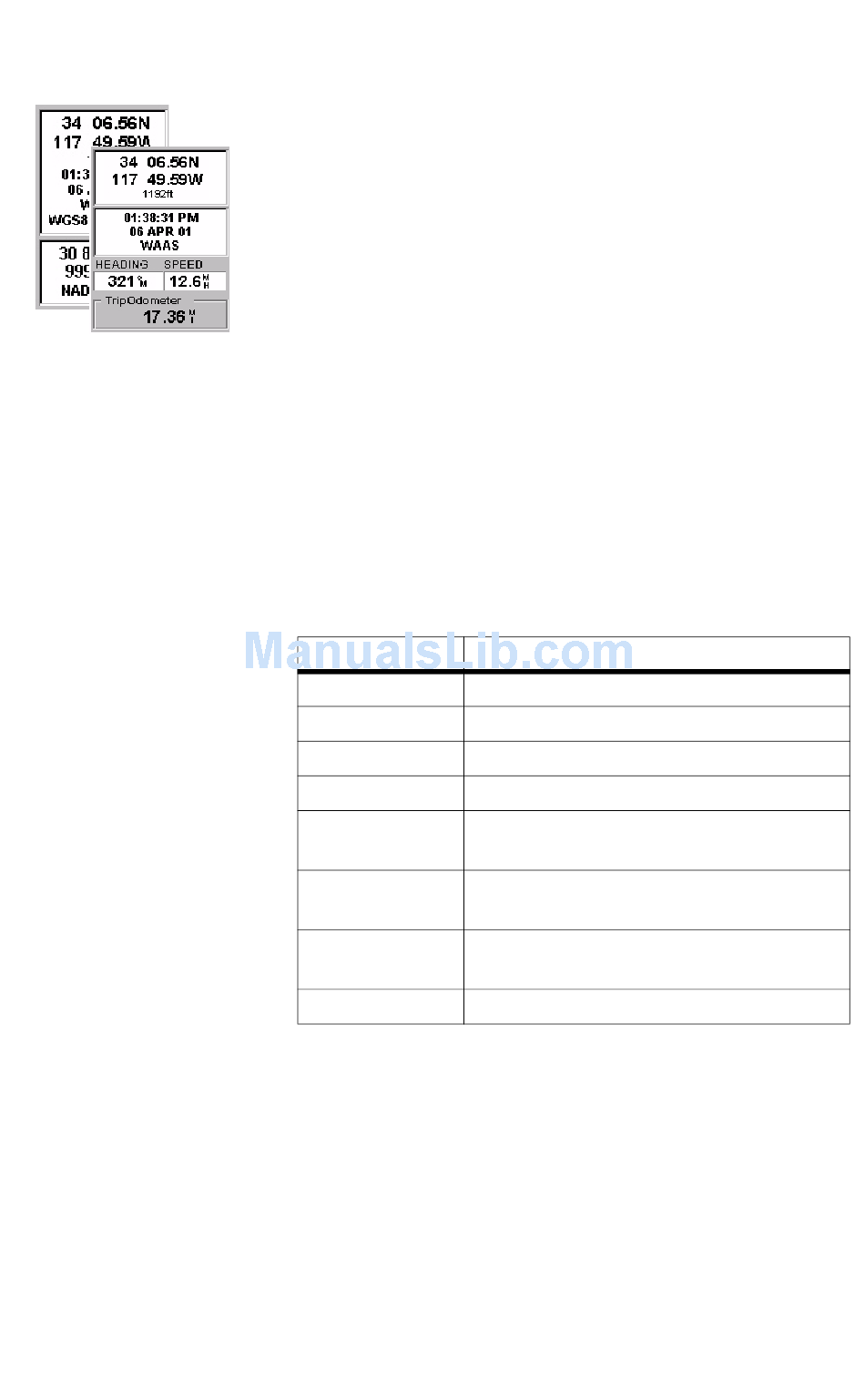

Position Screens 1 & 2
To switch from a screen
to the other, just press
the Left or Right arrow
The same data as on
Position screen 1 is
displayed on Position
screen 2 except that
the lower part of the
screen, containing the
two data fields and the
trip odometer field, is
replaced with the cur-
rent position's coordi-
nates expressed in the
chosen secondary coor-
dinate system and map
datum.
42

Position Screens

Position screens #1 and #2 display your present position us-
ing the coordinate systems that you have selected. This screen
shows all of the basic position, time and satellite information.
Additionally, on Position screen #1, current navigation infor-
mation is shown in the bottom half of the screen.
For the sake of comparison, Position screen #2 provides the
coordinates of your present position both in the selected pri-
mary coordinate system and map datum, and in the selected
secondary coordinate system and map datum.
Position screen #1 contains the following information, from
top to bottom:
- Coordinates and elevation of your current position: Dis-
plays your current position in the chosen coordinate sys-
tem. Also displays the elevation of the current position. If
key.
MobileMapper Pro is not computing position fixes, the last
computed position is displayed.
- GPS Satellite Status: Provides information on the current
status of the GPS receiver portion of the MobileMapper
Pro (see table below).
Message
Searching - 1st sat
Searching - 2nd sat
Searching - 3rd sat
Searching - 4th sat
Collecting Data
Averaging
EPE xxx.
DGPS
Description
Searching for 1st satellite
1st satellite found; searching for 2nd satellite
2 satellites are being tracked; searching for a 3rd
3 satellites are being tracked; searching for a 4th
All satellites needed for position fix are being
tracked and position is being computed
MobileMapper Pro is computing fixes; speed is
near 0.0 and so position is being averaged
Estimated Position Error. MobileMapper Pro is
computing fixes while moving
Computed fixes are being differentially corrected
