Assign The 4300T's Alg To Your Priority Vlan; Configure The Wan Interface - Polycom V2IU 4300T User Manual

Configure the WAN Interface

Assign the 4300T's ALG to your Priority VLAN

Once you have completed your VLAN configuration you must assign the
4300T ALG to the VLAN containing your VoIP phones.

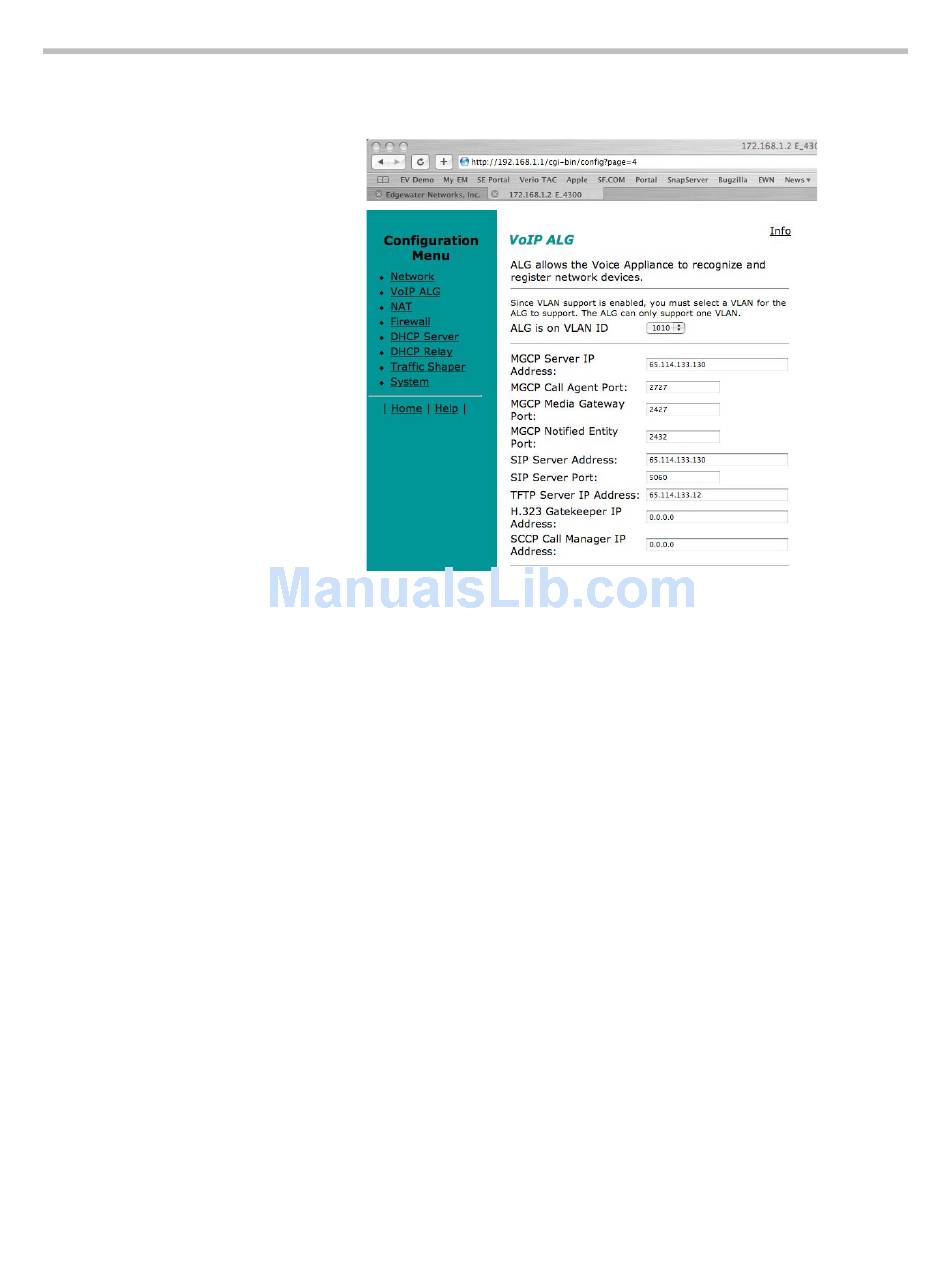

1. Select the VoIP ALG from the main configuration menu.
2. Use the drop down menu to assign the ALG to the VLAN ID containing
your VoIP phones.
3. Press Submit.
The 10/100 Ethernet WAN port is configured as follows:
1. Select ADSL-PPPoE if you want to connect to Internet using ADSL and
your ISP has given PPPoE username and password. Press Submit. You
will be prompted to enter username and password, enter these and press
Submit again.
2. Select DHCP if you want to get WAN side IP address using DHCP server
available in WAN side of the network. Press Submit.
3. Select Static IP address if you want to manually assign the IP address
configuration to the ethernet WAN interface.
4. Enter the IP Address.
5. Enter the Subnet Mask (e.g. 255.255.255.0).
Configuring the 4300T
3 - 17
