Simrad AP50 Instruction Manual page 115

Note !
20221032B
CI300X COMPASS INTERFACE
TB5
ALARM
OUTPUT
(Normally open)
TB4
ENAB
NON FOLLOW UP
PORT
STEERING
STBD
LEVER
COM
TB3
S3
S2
S1
R2
R1
TB2
GND
COS
SIN
TB1
4
COS
5
SIN
3
Vref
1
LO
2
HI

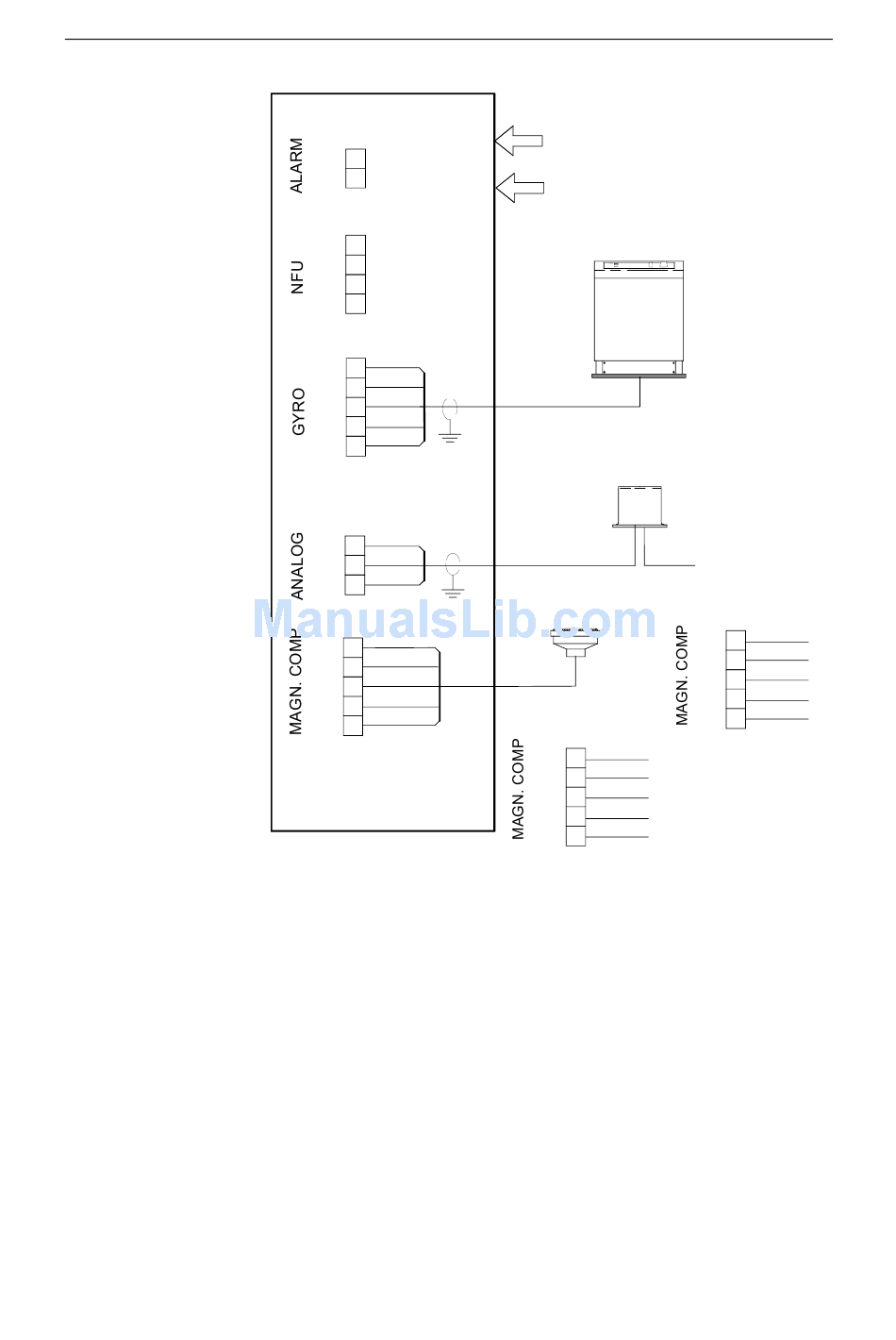

Figure 4-42 CI300X Compass Interface Unit Connections
The CD100 is a previous model and its cable has a connector
that must be cut off for connection in the AP50 system (e.g. to
the CI300X or the CDI35).
ROBNET
CONNECTIONS
RGC10/RGC50
GYRO COMPASS
FLUXGATE COMPASS
WITH SINE/COSINE
OUTPUT
MAGNETIC COMPASS
CD100 CONNECTIONS:
WITH CD100A COURSE
DETECTOR
ALT. 2
BLUE
COS
To identify the black wires,
BLACK**
measure 8-12 ohm between
SIN
GREEN
orange and black* and 6-10
Vref
ohm between green and
ORANGE
LO
black**.
BLACK*
HI
Third black wire not in use.
Installation
DC SUPPLY
ALT. 1
GREY
COS
YELLOW
SIN
GREEN
Vref
WHITE
LO
BROWN
HI
113
