ASSEMBLY INSTRUCTIONS (cont'd)

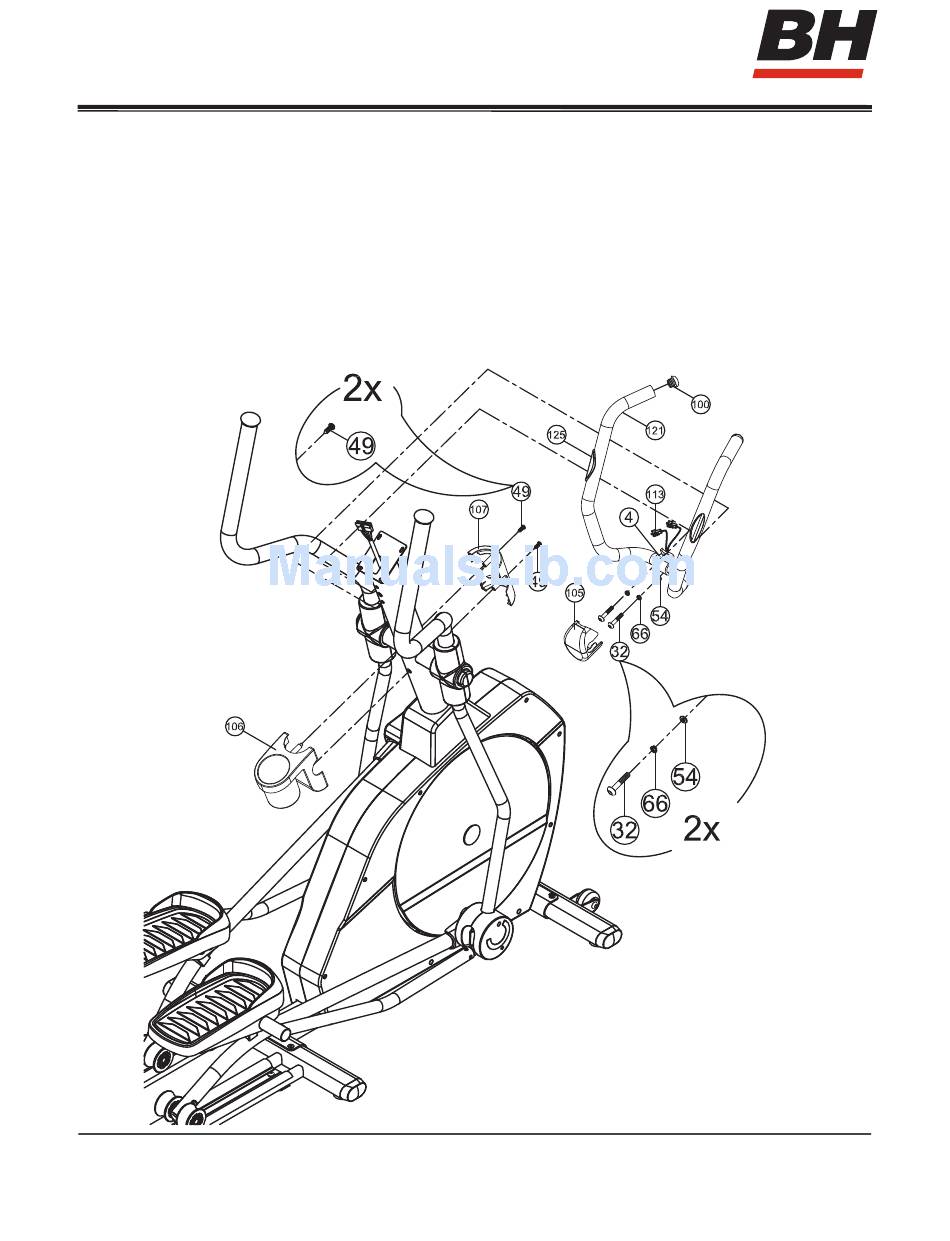

FIXED HANDLEBAR ASSEMBLY
Feed the Hand Pulse cables (113) from the Fixed Handlebar through the center hole of the three on
the Upright tube. Place the handlebar (4) on the Upright tube matching the hole pattern. Tighten
with Flat washers (54), Lock washers (66) and bolts (32). Snap the plastic cover (105) over the
joint from the front side.
Snap the Accessory Tray Front and Back (106 & 107) pieces together near the swivel point and
tighten with Screws (49)
