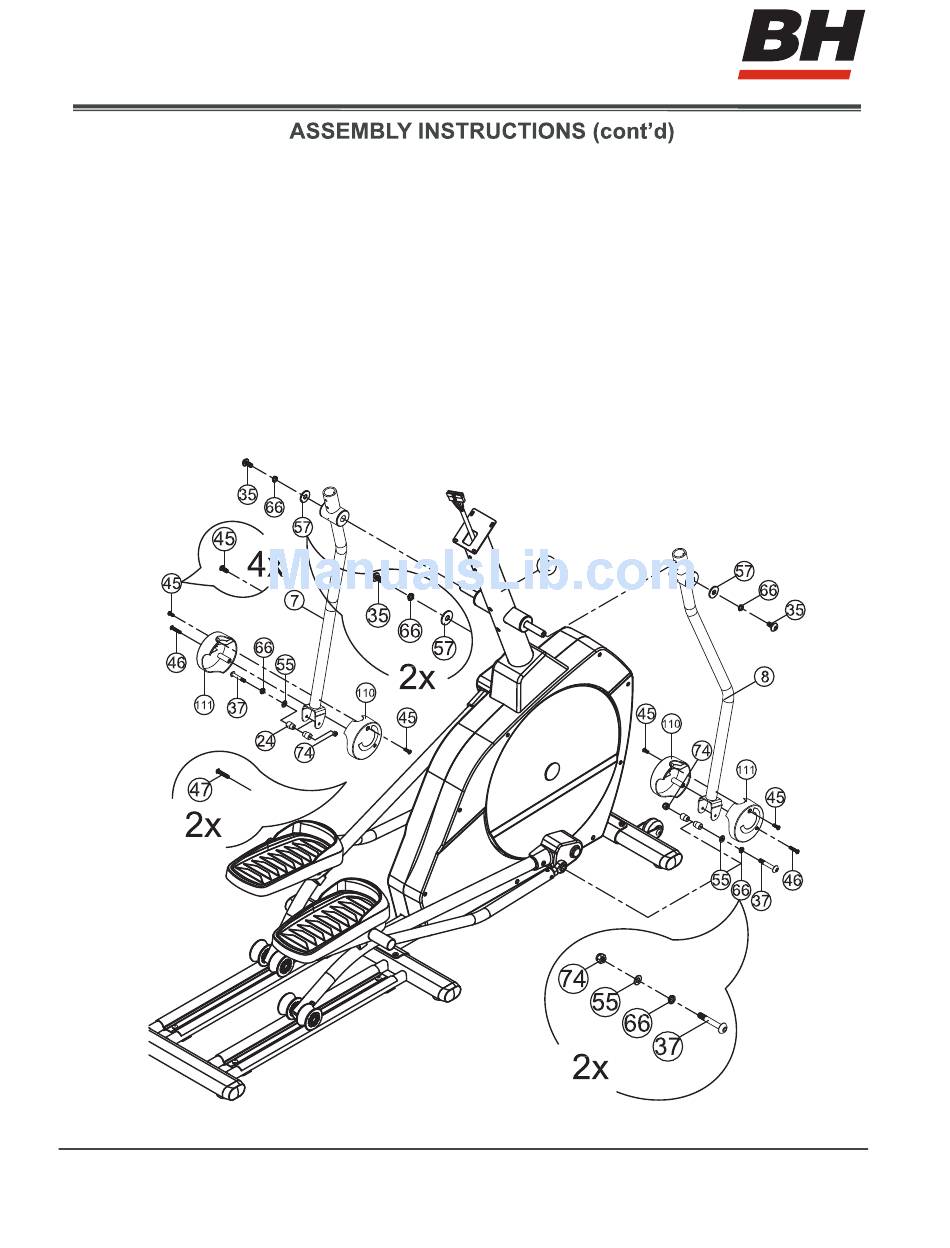

LOWER SWIVEL HANDLEBAR ASSEMBLY
Attach the Left Lower Swivel handlebar (7) to the axle of the upright tube. Secure with Flat
Washer M8 (57), Lock Washer M8 (66) and Bolt M8*20 (35).
Then, insert the metal spacers (24) to the ball joint of the Outer Pedal tube and slide the joint in
between the bracket of the Left Lower Swivel handlebar (7). Secure the assembly in place with
Flat washer (55), Lock washer (66), Bolt (37) and nut (74).
Snap the Swivel Pedal Pivot Covers (110 & 111) together and tighten with screws (45) on both
sides and screw (46) on the outside
Repeat the same steps above for the right Lower Swivel handlebar (8).
