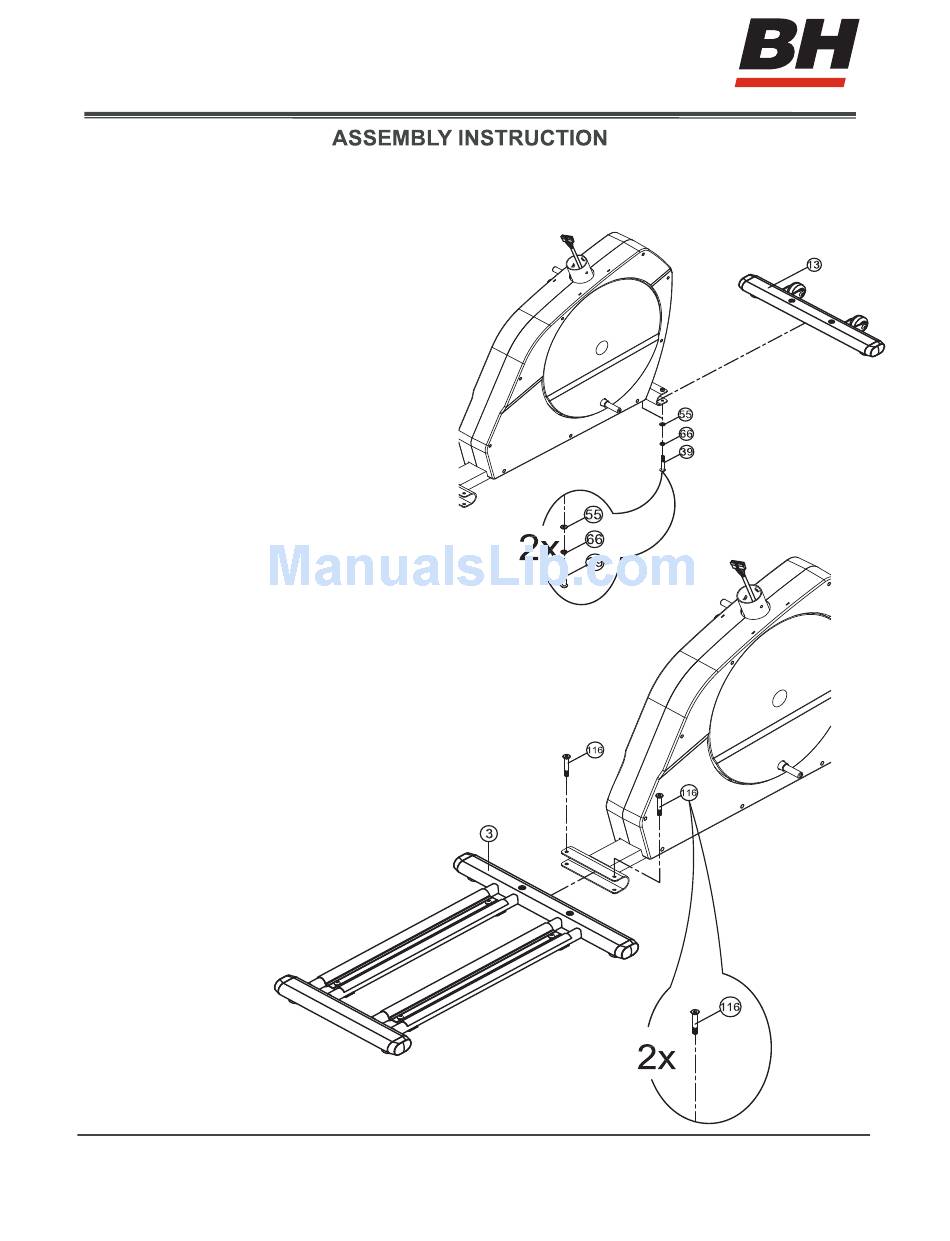

FRONT STABILIZER ASSEMBLY
Secure the front stabilizer (13) to the main frame
using (2) M8*58 bolts(39), (2) M8 lock
washers (66) & (2) M8 Flat Washers (55)
GLIDING TRACK ASSEMBLY
Attach the Gliding track (3) to the main frame
using 2- M8*58 bolts (116).
BH Fitness • 20155 Ellipse • Foothill Ranch • CA • 92610
www.BHFitnessUSA.com • Phone 949-206-0330 • Fax 949-206-0013
7
XS1
