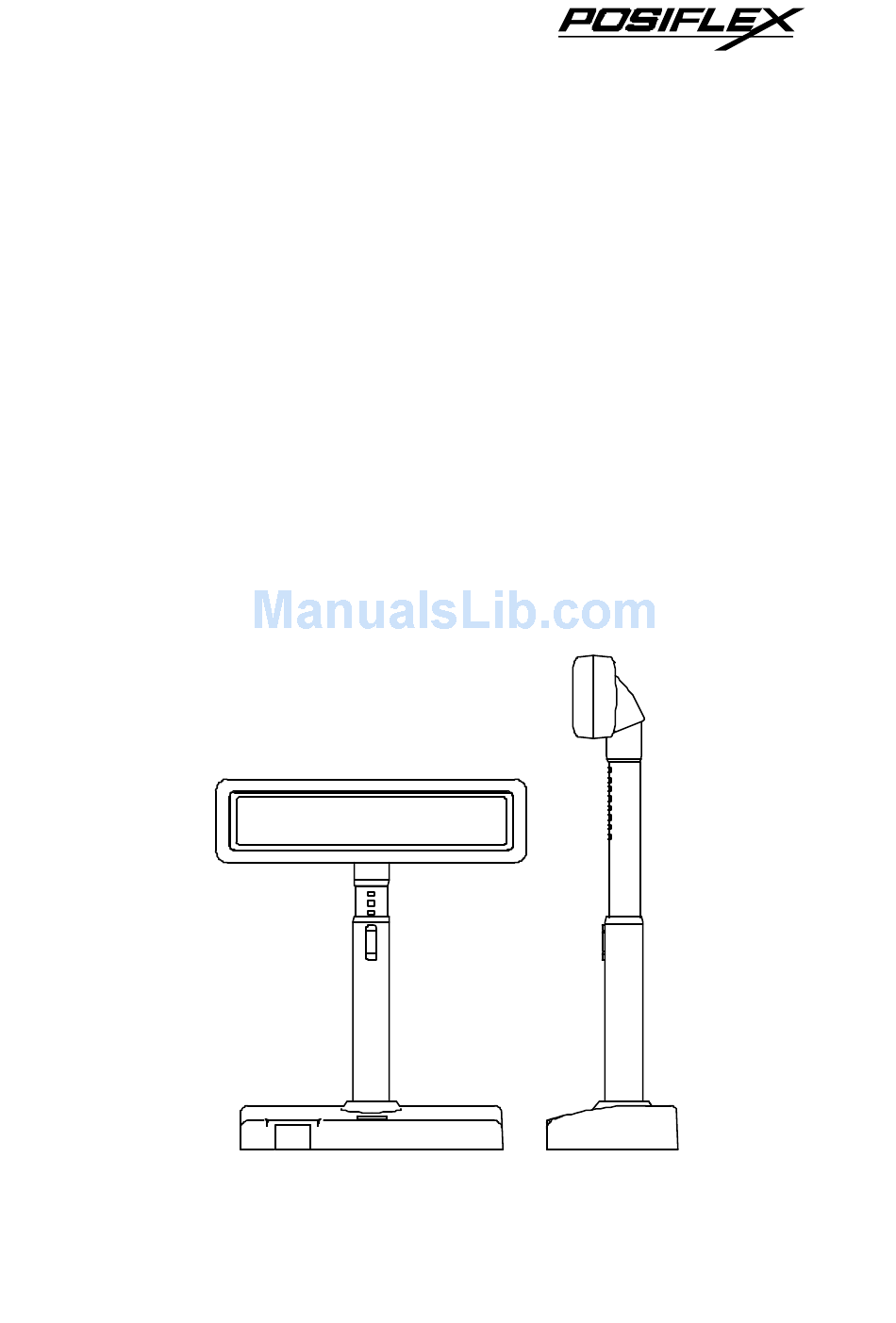

- Page 1 2100 PD-2300 Series 2200 USER’S MANUAL VFD CUSTOMER DISPLAY for ALPHANUMERICAL DISPLAY in 2 x 20 format Rev. : Original...
-
Page 2: Fcc Notice
ABOUT THIS MANUAL This manual assists the user to utilize the VFD customer display PD-2300 series. This series provides versatile fonts and support various instruction sets. This series of products receive instructions in serial communication protocols and is capable of entering pass through mode so that all instructions received pass on to next connected serial device if properly configured. -
Page 3: Table Of Contents
TABLE OF CONTENTS FEATURES · · · · · · · · · · · · · · · · · · · · · · · · 1 Brief · · · · · · · · · · · · · · · · · · · · · · · · · · · · · 1 Detail ·... -
Page 5: Brief

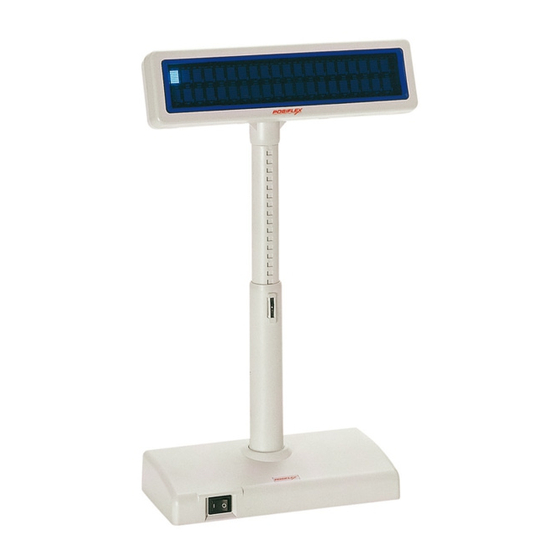

FEATURES A. Brief PD-2300 series is a product series of customer display utilizing VFD (vacuum fluorescent display) technology with adequately large character size. This series presents not only exactly same mechanical styling and all functional capabilities as its predecessor PD-2200 series but also additional advanced arrangement for power connection and interface selection of USB. -
Page 7: Model Numbers
MODEL NUMBERS PD2300SUS-B Example: -B: Beige case, green display Product type for VFD -C: Charcoal case, blue display customer display of 9 mm letter height 00: No adaptor , no power cable AU: Australia 12 V AC adaptor Reserved digit CN: China 12 V AC adaptor EU: Europe 12 V AC adaptor 0: stand alone model... -
Page 9: Carton Contents
III. CARTON CONTENTS 1. Pole display, pre-assembled. 2. User’s Manual. 3. Interface cable (RS232 or USB per order) 4. 12 V AC power adaptor or power cable for printer power or neither per order 3 - 1... -
Page 11: Installation
IV. INSTALLATION A. Connector area In base of stand alone models, looking from rear side of the bottom, the connector area will look like below: For serial (RS232) interface models: RS232 Out RS232 In +24 V DC In +24 V DC Out 12 V AC In For USB interface models: B. -
Page 12: For Usb Interface Models
2. Connect the pass through RS232 device to the “RS232 Out” if exists. 3. Proceed connection to power adaptor of either 12 V AC or +24 V DC. 2. For USB interface models PD2300 HOST 1. Connect the “B” type connector of the interface cable to “ USB” in connector area and the “A”... -
Page 13: Using Printer Power Adaptor
Always check the specification of the power adaptor against the power socket before making any connection. Always keep the insertion of the power adaptor into the power socket as the very last step of the whole installation procedure. Connect the 2.5 /5.5 DC plug of the 12 V AC adapter to the 2.5 /5.5 “12 V AC In”... -
Page 14: After Powering Up
D. After powering up A firmware version and emulation mode as power on sign will appear for a while. Then a blinking block-shaped cursor will appear at the left-most digit of the top row for Noritake or Futaba emulation mode and no cursor will appear for other emulation modes. -
Page 15: Mechanical Features
V. MECHANICAL FEATURES A. Dimension drawing 70.0 260.0 60.3 157.1 36.8 70.0 70.0 22.970.0 135.0 315.0 180.0 (Max. height) 135.0 180.0 Stroke (Lowest height) 41.0 41.0 41.0 220.0 110.0 PD2300 Series B. Display frame features In addition to the above drawings given, the PD2300 series is delicately designed to have the following user-friendly mechanical features for most up-to- date store management systems. - Page 16 The display frame can be slid left-and-right-wise for a total sliding distance of 100mm. It can also be rotated horizontally for almost 360 degree, however, the rotation is limited to within 360 degree to avoid the internal cable to be broken. It can further be tilted to offer 2 different viewing angles ---14.5 , 30 from the vertical position.
-
Page 17: Command Emulation
VI. COMMAND EMULATION This VFD customer display provides several software programming emulation modes for display control. The emulation mode is defined by adjusting Push up to the DIP SW on the back as in the following table. switch on Switching these DIP switches may require some proper tool or special effort. -
Page 19: Specifications
VII. SPECIFICATIONS A. Optical Number of digits 20 digits/row, 2 rows Dot matrix 5 X 7 dots Digit height 9.03 mm Digit width 5.25 mm Display color Blue or Green B. Mechanical Weight 0.7 kg (1.5 lbs) Height 291 ~ 426 mm Width 260 mm Depth...
