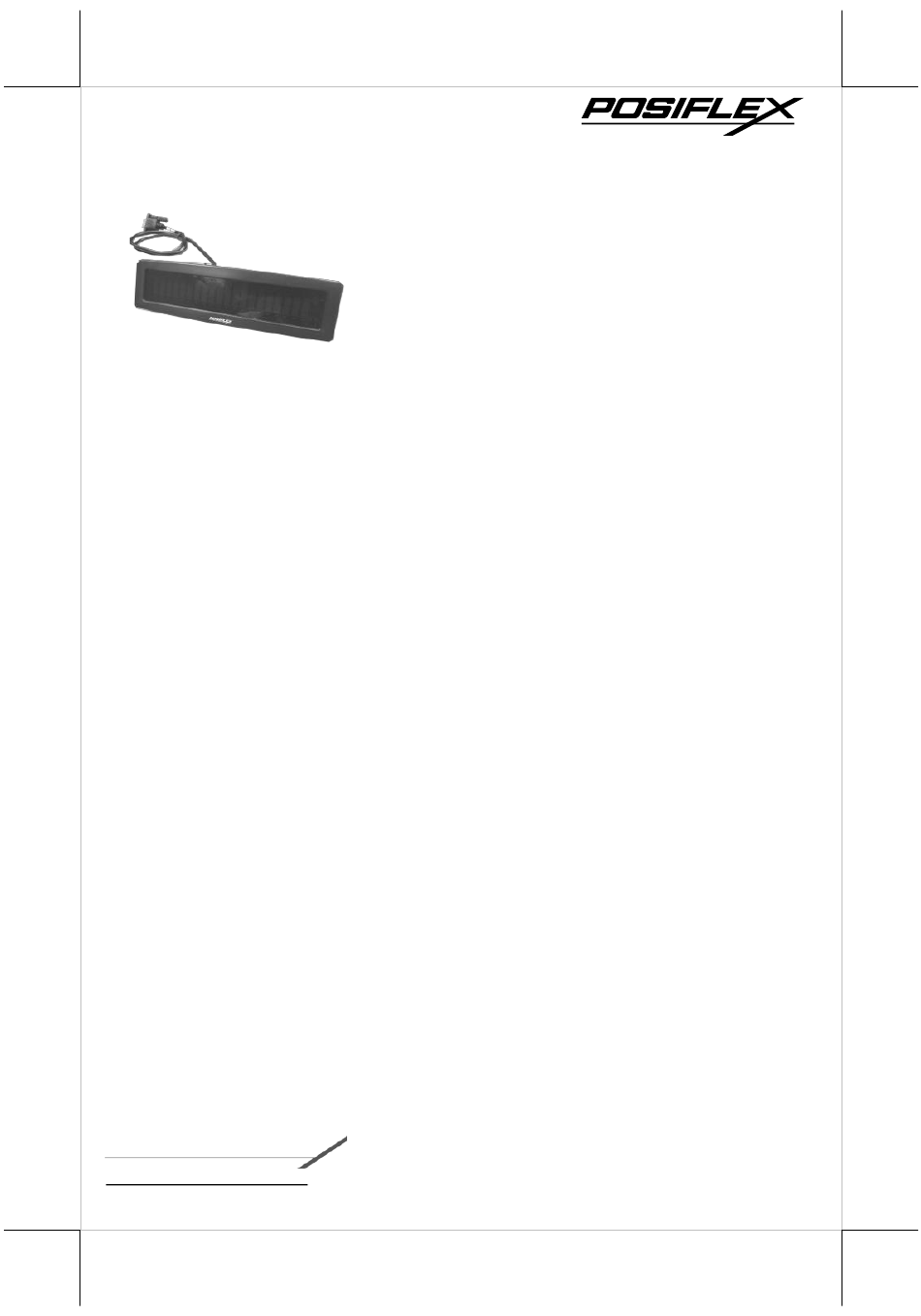

PD-2608R
Rear-Mount Customer Display
User Manual
Product Features
Rear-mount VFD customer display for XT series POS terminal
Green or blue screen filter
Two-line display with 20 characters per line
Large character size for easy viewing: 9.03 mm x 5.25 mm
15°, 30° and 45° tilt angle adjustment
Various command emulation selectable by DIP switch: ADM, Aedex,
ESC/POS, Futaba, Noritake, UTC
12 international character sets support
19460906010 Ver. Original
http://www.posiflex.com
Package Contents
PD-2608R customer display (x 1)
Fixing screws (x 2)
User manual (x 1)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the PD-2608R and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for POSIFLEX PD-2608R

Summary of Contents for POSIFLEX PD-2608R

  • Page 1 PD-2608R Rear-Mount Customer Display User Manual Package Contents  PD-2608R customer display (x 1)  Fixing screws (x 2)  User manual (x 1) Product Features  Rear-mount VFD customer display for XT series POS terminal  Green or blue screen filter ...
  • Page 2 SOME IMPORTANT NOTES FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications.
  • Page 3 SAFETY INSTRUCTIONS This equipment is not suitable for use in locations where children are likely to be present. CONSIGNES DE SÉ CURITÉ Cet équipement ne convient pas à une utilisation dans des lieux pouvant accueillir des enfants. WARNING Power cord shall be connected to a socket-outlet with earthing connection. ATTENTION Le cordon d'alimentation doit être connecté...
  • Page 4 Views of the PD-2608R Front View RS-232 Cable Rear View RS-232 Cable Heat Dissipation Holes Heat Dissipation Holes DIP Switch Cover Bracket with two Fixing Screw Holes...
  • Page 5 POS terminal with Gen 7E/8E foldable bases. XT-5415 with Gen 7E base will be used in the following demonstration. As a reminder, do NOT power ON the terminal during the installation of PD-2608R. Lay your terminal on a flat surface with the screen facing down.
  • Page 6 Take the customer display out of the PD-2608R package box. Hold the display with the screen facing towards you. Tuck the extra cable into cable passage from the top cable exit. Please also reserve the enough cable for mounting the customer display.
  • Page 7 Slide it into position along the rail as the below figures show. Tighten the screws by keeping turning them clockwise. Insert the RS-232 cable to DB9 COM port at the bottom I/O plate of your KS series terminal. Make sure that PD-2608R is well mounted onto the POS terminal.
  • Page 8 Setting up the Baud Rate for PD-2608R To specify the certain baud rate in your POS terminal, it is required to configure the DIP switch settings. Please follow the below instructions to complete the configuration of DIP switch. Slide the cover of the DIP switch on the rear of PD-2608R.
  • Page 9 DIP Switch of PD-2608R, which is comprised of six electrical switches located at the rear of the customer display, allows you to save your preferences for baud rate and emulation commands. The below two figures will give you an idea how you could configure PD-2608R using DIP switch. RS-232 Format DIP switch #1 and #2 are mainly responsible for determining the bard rate at which data is transmitted via RS-232 protocol.
  • Page 10 Applicable Command Code ADM Emulation Mode Command Syntax: Control code [+ Data / Line #] [+ Carriage return] Control Code Function Description Function Area <0C>h Clear Display Line 1 + Line 2 <0D>h Carriage Return End of Command <0E>h Write Line 1 Line 1 <0F>h Write Line 2...
  • Page 11 Name Hex Code Function Description Move cursor left Move cursor right Move cursor down Move cursor to home position Clear display Move cursor to leftmost position Clear cursor line US MD1 1F 01 Specify overwrite mode US MD2 1F 02 Specify vertical scroll mode US MD3 1F 03...
  • Page 12 FUTABA Emulation Mode Command Syntax: Hexadecimal Code Hex Code Function Description Hex Code Function Description Reset Cursor on 04 bb Brightness control Cursor off 1E 0p Change font page Back space 1C 0i International character set 11 09 Horizontal tab 05 0D Moving sign 12 09...
  • Page 13 UTC Emulation Mode Command Syntax: Hexadecimal Code Mode Name Hex Code Function Description UTC PASS <ESC>uA$<CR> 1B 75 41 $ 0D Top Line message THRU <ESC>uA<CR><ESC> 1B 75 41 0D Clear Display MODE uB<CR> 1B 75 42 0D <ESC>uB$<C 1B 75 42 Bottom line message <ESC>uD$<...

  • Page 14: International Character Sets

    International Character Sets Hex code Country Hex Code Country Italy France Spain Germany Japan United Kingdom Norway Denmark I Denmark II Sweden Ex-Jugoslavia...

  • Page 15: Specifications

    Operating humidity: 20% to 85%, non-condensing Storage temperature: -10ºC ~ +60ºC Storage humidity: 5% to 90%, non-condensing Manufacturer: Posiflex Technology Inc. 4F-8F, No. 23, Datong St., Tucheng Dist., New Taipei City 236044, Taiwan Tel : +886 2 2268 5577 製造商資訊...
