PD-6907U

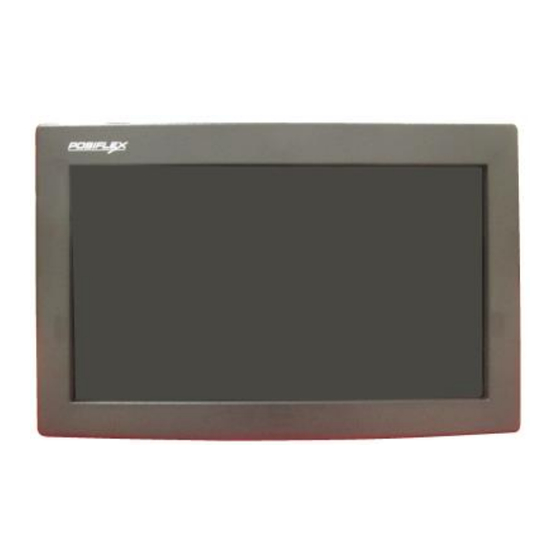

Rear-Mount Customer Display
User Manual
FCC NOTES
This system meets industry & government requirements and applicable standards. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions manual, may cause interference to radio communications. It has been tested
and found to comply with limits for a Class A digital device pursuant to subpart B of Part 15 of
FCC Rules, which are designed to provide reasonable protection against interference when
operated in a commercial environment. Operation of this equipment in a residential area is likely
to cause interference in which case the user at his own expense will be required to take whatever
measures to correct the interference.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CE CLASS A WARNING
This equipment is compliant with Class A of CISPR 32. In a residential environment this
equipment may cause radio interference.
AVERTISSEMENT CE CLASSE A
Cet équipement est conforme à la classe A de CISPR 32. Dans un environnement résidentiel, cet
équipement peut provoquer des interférences radio.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the
authorized technicians. The user should consult his/her dealer for the problem happening.
Warranty voids if the user does not follow the instructions in application of this merchandise. The
manufacturer is by no means responsible for any damage or hazard caused by improper application.
LIMITES DE GARANTIE
La garantie prend fin automatiquement lorsque la machine est ouverte par une personne autre que
les techniciens autorisés. L'utilisateur doit consulter son revendeur pour le problème qui se produit.
La garantie s'annule si l'utilisateur ne suit pas les instructions d'application de cette marchandise.
Le fabricant n'est en aucun cas responsable de tout dommage ou danger causé par une mauvaise
application.
Package Contents
7" Rear-Mount Customer Display
with Bracket (x 1)
Thumbscrew (x 2)
USB Cable for PD-6907U (x 1)
1
PD-6907U Ver. A0
Advertisement
Table of Contents
Related Manuals for POSIFLEX PD-6907U
Summary of Contents for POSIFLEX PD-6907U
- Page 1 Thumbscrew (x 2) USB Cable for PD-6907U (x 1) FCC NOTES This system meets industry & government requirements and applicable standards. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications.
-
Page 2: Rear View
警告 為避免電磁干擾，本產品不應安裝或使用於住宅環境。 Views of the PD-6907U Front View TFT LCD Panel Rear View USB cable Screw hole Screw hole I/O View USB type-B port... - Page 3 Mounting the Rear-Mount Display onto ZT Series POS Terminal The following instructions are provided to help you mount your PD monitor to Posiflex ZT series POS terminals. During installation, please ensure the terminal is properly turned off and disconnected from the power sources to avoid potential hazards.
- Page 4 Rotate the screen to the upright position like below pictures. There is a latch inside cable exit on the rear side of the POS terminal. Push the latch with the thumb of the left hand, and then the touch monitor will release automatically.
- Page 5 Open the touch monitor with two hands, and then you can do the maintenance work. Remove the attachment cover on the top side by pressing the inner hook on both sides. Press. Fix the PD line display with two thumbscrews, and then connect the USB cable to the ZT series main board.
- Page 6 NOT to press on the LCD panel. Installing the Virtual COM Driver for PD-6907U Refer to the following steps for the driver installation. Connect the USB cable of PD-6907U to your POS terminal. Locate the “SA_PD_LM” folder from the “Drivers” folder in the Local Disk (C:) of your POS terminal You will find the “USB_VCOM”...
-
Page 7: Driver Download
Driver Download After installing the side attachment, you have to download the relevant driver first. Please download the relevant driver that you need from the Posiflex website (https://download.posiflex.com/en- global/Download/index/driver/Line-Display/PD-6907U) . Specifications... -
Page 8: Outline Dimension
Outline Dimension ※ The product information and specifications are subject to change without prior notice.
