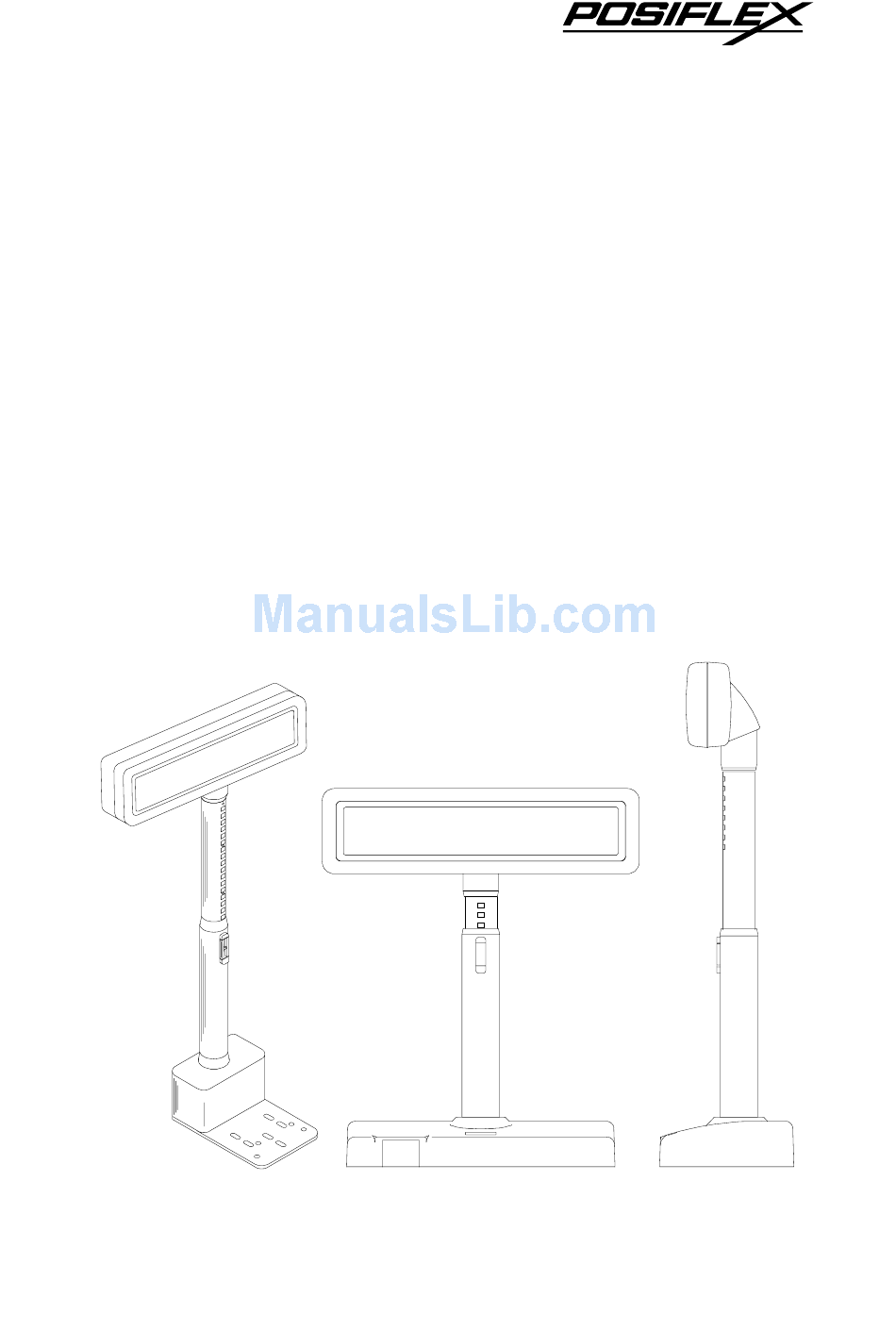

- Page 1 2100 Series 2200 USER’S MANUAL VFD CUSTOMER DISPLAY for ALPHANUMERICAL DISPLAY in 2 x 20 format Rev. : B4...
-
Page 2: Fcc Notice
SOME IMPORTANT NOTES FCC NOTICE This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against interference when operated in a commercial environment. -
Page 3: Table Of Contents
TABLE OF CONTENTS FEATURES · · · · · · · · · · · · · · · · · · · · · · · · 1 MODEL NUMBERS · · · · · · · · · · · · · · · · · · 2 CARTON CONTENTS ·... -
Page 4: Features

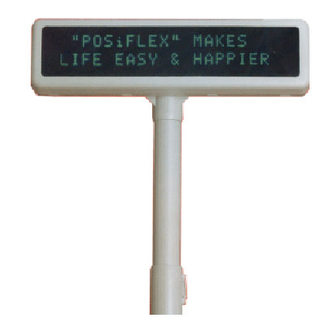

FEATURES • Bright vacuum fluorescent display • Two-line display with 20 characters per line • Large characters for easy viewing (11.25mm by 7.2mm) • Long life and trouble free operation • Secure construction with bumper best for screw on operation in PD2100 series. -
Page 5: Model Numbers
MODEL NUMBERS Case Display Power Pass Model Base Connector Color Color Source Through PD2100S Ivory Green PD2100S/C Charcoal PD2100S/D Ivory Blue PD2100S/F Charcoal Small DIN 5 pin N. A. PD2100S/XX Ivory Green PD2100S/XX/C Charcoal Adaptor (+12V AC) PD2100S/XX/D Ivory Blue PD2100S/XX/F Charcoal PD2200B Ivory... -
Page 6: Carton Contents
III. CARTON CONTENTS 1. Pole display, pre-assembled 2. User’s Manual 3. Metal stand plate with mounting screws (for PD2100S series only). 4. One interface cable 20863012510 (CCBLA - 125A) for PD2100S series or 20863137210 (CCBLA-372) for PD2200B series 5. Power source (one of the four below): Power supply: AC power adaptor specified per country type Power kit incl. -
Page 7: Installation
IV. INSTALLATION A. Signal connection 1. For PD2100S Series 1. Take off the metal plate on the Pole display base cabinet by loosening the screws. 2. Connect the DIN 5 pin plug of the cable CCBLA - 125A to the female To COM port DIN jack DIN 5 pin jack inside the base... -
Page 8: Using Power From Pc
as the very last step of the whole installation procedure. Connect the 2.5φ/5.5φ DC plug of the AC adapter to the 2.5φ/5.5φ DC jack inside or at bottom of the base cabinet. The above drawing shows the example in PD2100 series. For PD2200 series, you may now place the base on a horizontal surface and prepare to power on. -
Page 9: Using Power From Pos System
connector of CCBLA-141 to the I/O device of PC such as a HDD if necessary. 5. Assemble the case of PC back. Then referring to drawing below to complete the basic power and signal cabling. Note the PC should remain OFF during the connection. 9 pin D connector COM port (9 pin serial port) of CCBLA-372... -
Page 10: Using Printer Power Adaptor
4. Using printer power adaptor for PD2200B series Posiflex POS printer PD2200B Posiflex POS Printer Power +24 V DC Out +24 V DC In +24 V DC Adaptor (24 V DC) Power Cable The PD2200B series can also be powered by the power adaptor supporting a Posiflex POS printer by using a separately purchased specific power cable (P/N: 20863250900). -
Page 11: Mechanical Features
V. MECHANICAL FEATURES A. Dimension Drawings 70.0 260.0 60.3 36.8 219.0 70.0 34.0 70.0 70.0 135.0 315.0 180.0 (Max. height) 180.0 135.0 Stroke (Lowest height) 51.0 51.0 76.0 60.0 114.0 80.0 PD2100 Series 70.0 260.0 60.3 219.0 36.8 70.0 70.0 70.0 34.0 135.0... -
Page 12: Display Frame Common Features
B. Display Frame Common Features In addition to the above drawings given, both the PD2100/PD2200 series are delicately designed to have in common the following user-friendly mechanical features for most up-to-date store management systems. Button switch The display panel of PD2100/PD2200 series can be moved or rotated/tilted both vertically and horizontally The overall pole height can be adjusted freely by pulling the button switch and match it to one of the concave cavities on inner pole at a proper... -
Page 13: Command Emulation
VI. COMMAND EMULATION This VFD customer display provides several software programming emulation modes for display control. The emulation mode is defined by adjusting Push up to the DIP SW on the back as in the following table. switch on Switching these DIP switches may require some proper tool or special effort. -
Page 14: Specifications
VII. SPECIFICATIONS A. Optical Number of digits 20 digits/row, 2 rows Dot matrix 5 X 7 dots Digit height 11.25 mm Digit width 7.2 mm Display color Blue or Green B. Mechanical Weight 0.7 kg (1.5 lbs) Height 309 ~ 444 mm (For PD2100 series) 291 ~ 426 mm (For PD2200 series) Width 260 mm...
