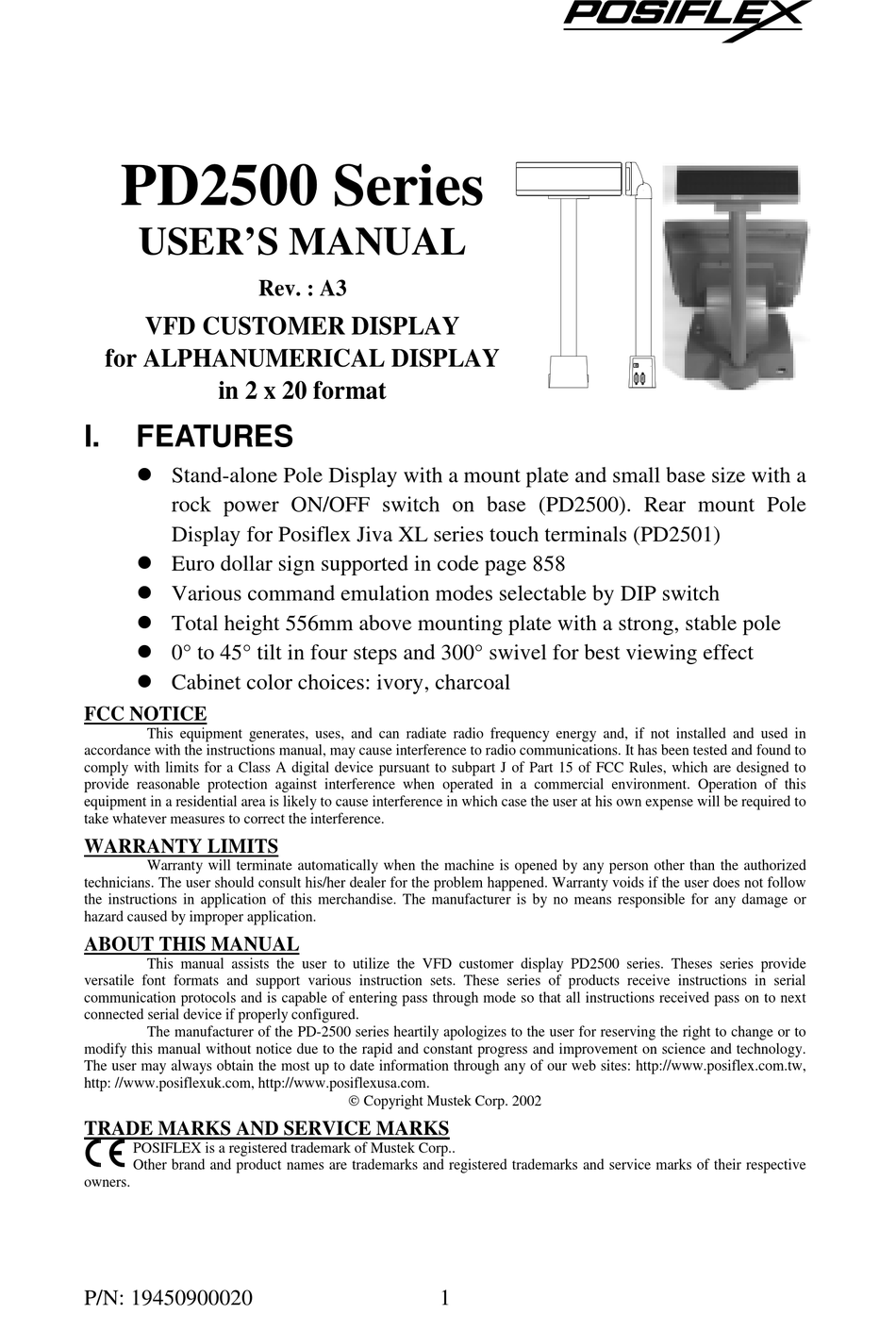

PD2500 Series
USER'S MANUAL

VFD CUSTOMER DISPLAY

for ALPHANUMERICAL DISPLAY
in 2 x 20 format
I.

FEATURES

Stand-alone Pole Display with a mount plate and small base size with a
rock power ON/OFF switch on base (PD2500). Rear mount Pole
Display for Posiflex Jiva XL series touch terminals (PD2501)
Euro dollar sign supported in code page 858
Various command emulation modes selectable by DIP switch
Total height 556mm above mounting plate with a strong, stable pole
0° to 45° tilt in four steps and 300° swivel for best viewing effect
Cabinet color choices: ivory, charcoal
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions manual, may cause interference to radio communications. It has been tested and found to
comply with limits for a Class A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to
provide reasonable protection against interference when operated in a commercial environment. Operation of this
equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to
take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized
technicians. The user should consult his/her dealer for the problem happened. Warranty voids if the user does not follow
the instructions in application of this merchandise. The manufacturer is by no means responsible for any damage or
hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the VFD customer display PD2500 series. Theses series provide
versatile font formats and support various instruction sets. These series of products receive instructions in serial
communication protocols and is capable of entering pass through mode so that all instructions received pass on to next
connected serial device if properly configured.
The manufacturer of the PD-2500 series heartily apologizes to the user for reserving the right to change or to
modify this manual without notice due to the rapid and constant progress and improvement on science and technology.
The user may always obtain the most up to date information through any of our web sites: http://www.posiflex.com.tw,
http: //www.posiflexuk.com, http://www.posiflexusa.com.
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Mustek Corp..
Other brand and product names are trademarks and registered trademarks and service marks of their respective
owners.
P/N: 19450900020
Rev. : A3
 Copyright Mustek Corp. 2002
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-2500 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for POSIFLEX PD-2500 Series

  • Page 1: Vfd Customer Display

    The manufacturer of the PD-2500 series heartily apologizes to the user for reserving the right to change or to modify this manual without notice due to the rapid and constant progress and improvement on science and technology.
  • Page 2 II. MODELS Standard, with AC For rear mount on Option, for power power adaptor per Posiflex Jiva XL Case Display from PC I/O plate country touch terminals Color Color PD2500/XX PD2500 PD2501 Beige Green PD2500/XX-C PD2500-C PD2501-C Charcoal Green Beige Blue PD2500/XX-D PD2500-D...
  • Page 3 the power supply unit of the PC. Check the power switch on base of PD2500 should be turned off. Connect the 4 pin plug of cable 20863041100 to the jack in the I/O plate and connect the power plug to the jack above the 9 pin D connector at one side of PD2500 base.
  • Page 4 V. SPECIFICATIONS A. Optical Number of digits 20 digits/row, 2 rows Dot matrix 5 X 7 dots w/ period & comma Digit height 11.25 mm Digit width 7.2 mm Display Area 193 mm x 39.4 mm Display color Blue or Green B.
