POSIFLEX PD-2611UE User Manual

POSIFLEX PD-2611UE User Manual

Rear-mount customer display
Hide thumbs

Advertisement

Table of Contents

PD-2610UE/2611UE/2612UE
Rear-Mount Customer Display
User Manual
Product Features
 Rear-mount VFD customer display for RT or GT series POS terminal
 Blue or green screen filter
 Two-line display with 20 characters per line
 Large character size for easy viewing: 9.03 mm x 5.25 mm
 Various command emulation selectable by DIP switch: ADM, Aedex,
ESC/POS, Futaba, Noritake, UTC
 12 international character sets support

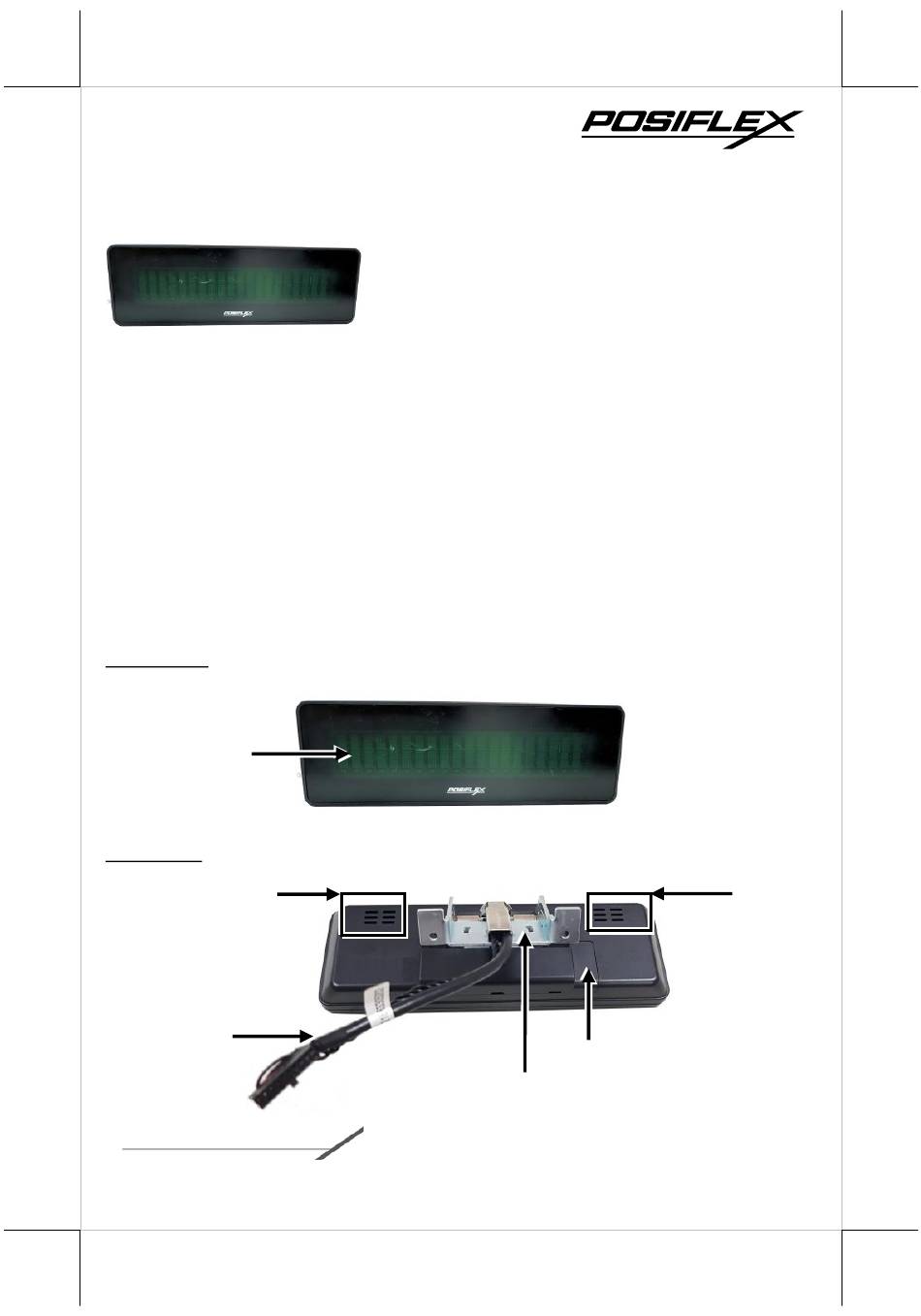

Views of the PD-2610UE for RT-Series POS Terminal
Front View
Display
Rear View
Vents
USB Cable
(Black Header)
PD-2610UE Ver. D0
Package Contents
 PD-2610UE, PD-2611UE, or PD-
2612UE customer display...............(x1)
 System back cover for 2
 Fixing screw (#6/32-18L)..............(x2)
Bracket with two Fixing Screw Holes
1
nd
display....(x1)
Vents
DIP Switch Cover

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD-2611UE and is the answer not in the manual?

Questions and answers

Related Manuals for POSIFLEX PD-2611UE

Summary of Contents for POSIFLEX PD-2611UE

  • Page 1 PD-2610UE/2611UE/2612UE Rear-Mount Customer Display User Manual Package Contents  PD-2610UE, PD-2611UE, or PD- 2612UE customer display……...…...(x1)  System back cover for 2 display….(x1)  Fixing screw (#6/32-18L)…………..(x2) Product Features  Rear-mount VFD customer display for RT or GT series POS terminal ...
  • Page 2 FCC NOTES This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.

  • Page 3: Revision History

    The mechanical part of RT-series POS terminal has modified the back cover. Add the dummy cover instruction. 2025/03/05 Add new model PD-2611UE and PD- 2612UE Views of the PD-2611UE for GT-Series POS Terminal Front View Display Rear View Vents Vents...
  • Page 4 Views of the PD-2612UE for RT-3016A POS Terminal Front View Display Rear View Vents Vents DIP Switch Cover USB Cable Bracket with two Fixing Screw Holes (White Header) Mounting the PD-2610UE/2612UE onto your RT-Series POS Terminal Please note that PD-2612UE can install only onto RT-3016A model. Please follow the below instructions to install the customer display onto your RT-series POS terminal.
  • Page 5 2. (1) Hold down the release levers at the bottom of the system back cover and then (2) pulling the cover upwards. 3. Remove the back cover from your RT-series terminal. Remove Remove the 2 display dummy cover. 5. Remove the two countersunk head screws on both sides of the top neck cover.
  • Page 6 6. Pull upwards and remove the top neck cover from the customer display. Remove Pull 7. Remove the bottom neck cover from the Remove customer display. 8. Remove the 3M outer tape from the waterproof rubber cover on the Bracket of the display. 9.
  • Page 7 10. Check whether the two screw holes of wedge portions of the display bracket align with the two screw holes of the display rear-mount part of the terminal. 11. Fix the customer display to the RT-series terminal with two screws (#6/32- 18L).
  • Page 8 13. Pull the customer display backwards to the end. 14. Align the two protruding wedges of the bottom neck cover with the two long wedge holes of the display bracket. The two wide gliding tracks on the outsides of the bottom neck cover face the customer display. 15.
  • Page 9 16. Pull the customer display downwards to the end. 17. Combine the top neck cover with the bottom neck cover by gliding down the top neck cover along the gliding tracks on the outsides of the bottom neck cover. 18. Fix the two countersunk head screws on both sides of the top neck cover. (If there are the screws.)
  • Page 10 19. Connect the cable. For PD-2610UE, connect the USB cable (black header) to the USB header of the POS terminal. For PD-2612UE, connect the USB cable (white header) to the USB header of RT-3016A. 20. Push the display of your terminal forward to the end and make the display perpendicular to the base stand.
  • Page 11 22. Make sure that the customer display is well mounted onto the RT-series POS terminal. Mounting the PD-2611UE onto your GT-Series POS Terminal Please follow the below instructions to install the customer display onto your GT-series POS terminal. During installation, do NOT power ON the terminal.
  • Page 12 1.2 Hold down the release lever at the bottom of the system back cover and then pulling the cover outwards. Remove the 2 display dummy cover. Remove the two countersunk head screws on both sides of the top neck cover. 4.
  • Page 13 Find the type-C connector on the main board shown as below picture and connect the type-C cable to it. Please note that the type-C connector is very fragile. Before inserting the cable, be sure to verify that the connector on the cable end is parallel to the connector on the main board, and then carefully insert the cable.
  • Page 14 Install the waterproof rubber into the place. Waterproof Rubber Place back the system back cover from top side to close the sytem compartment of GT-series terminal. Install the dummy cover to the hinge bracket. Make sure the cover is hooked on the hinge bracket like below picture.
  • Page 15 Hook. 10. Close the plastic hinge cover bracket. 11. Fix the two countersunk head screws on both sides of the hinge cover.
  • Page 16 Before proceeding with the following instructions to install the virtual COM driver on your POS terminal, you must determine whether the DIP switch positions 1~2 is properly switched to OFF. 1. Please visit Posiflex official website (https://www.posiflex.com/document/driver-and- utility/?pmid=157,175&pid=360) to download the virtual COM driver.
  • Page 17 3. After completion of the driver, restart your terminal. Adjusting the DIP Switch Settings DIP Switch, which is comprised of six electrical switches located at the rear of the customer display, allows you to save your preferences for USB class and emulation commands.
  • Page 18 Emulation Mode A good range of commands emulation is also provided. By setting up DIP switches from #3 to #6 in order according to the below table, you may specify the type of command sets which your pole display will emulate. Switch Position Emulation Mode Aedex...
  • Page 19 EPSON Emulation Mode Command Syntax: Hexadecimal Code Name Hex Code Function Description Move cursor left Move cursor right Move cursor down Move cursor to home position Clear display Move cursor to leftmost position Clear cursor line US MD1 1F 01 Specify overwrite mode US MD2 1F 02...
  • Page 20 FUTABA Emulation Mode Command Syntax: Hexadecimal Code Hex Code Function Description Hex Code Function Description Reset Cursor on 04 bb Brightness control Cursor off 1E 0p Change font page Back space 1C 0i International character set 11 09 Horizontal tab 05 0D Moving sign 12 09...

  • Page 21: International Character Sets

    <ESC>uH$ 1B 75 48 Redefine graphic <ESC>uIx<CR> 1B 75 49 x 0D Display fonts <ESC>utcEx 1B 75 74 63 45 x Change d mode <ESC>utcFx 1B 75 74 63 46 x Change RS mode <ESC><RS>* 1B 1E* Direct to pole mode DIRECT TO <EOT>x...

  • Page 22: Specifications

    Specifications PD-2610UE/2611UE/2612UE Display Type Number of Digits 20 digits/row, 2 rows 5 x 7 dots Dot Matrix 9.03 mm Digit Height 5.25 mm Digit Width Blue or green Screen Filter 63 mm (H) x 200 mm (W) x 68 mm (D) Display Dimension 0.4 kg Net Weight...

This manual is also suitable for:

Pd-2610uePd-2612ue
