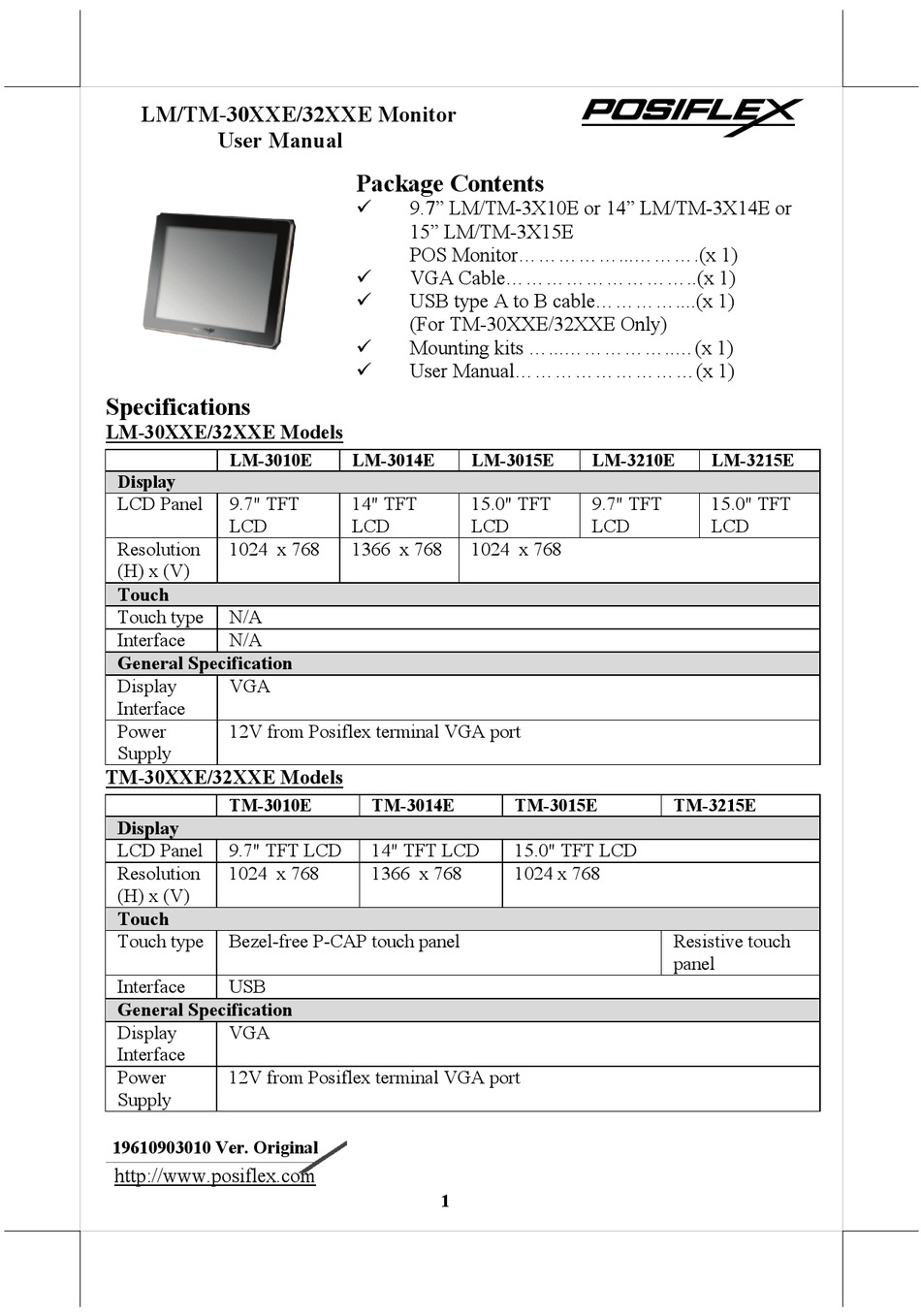

LM/TM-30XXE/32XXE Monitor
User Manual
Specifications
LM-30XXE/32XXE Models
LM-3010E
Display
LCD Panel
9.7" TFT
LCD
Resolution
1024 x 768
(H) x (V)
Touch
Touch type
N/A
Interface
N/A
General Specification
Display
VGA
Interface
Power
12V from Posiflex terminal VGA port
Supply
TM-30XXE/32XXE Models
TM-3010E
Display
LCD Panel
9.7" TFT LCD
Resolution
1024 x 768
(H) x (V)
Touch
Touch type
Bezel-free P-CAP touch panel
Interface
USB
General Specification
Display
VGA
Interface
Power
12V from Posiflex terminal VGA port
Supply
19610903010 Ver. Original
http://www.posiflex.com
Package Contents
9.7" LM/TM-3X10E or 14" LM/TM-3X14E or
15" LM/TM-3X15E
POS Monitor............................(x 1)
VGA Cable.............................(x 1)
USB type A to B cable................(x 1)
(For TM-30XXE/32XXE Only)
Mounting kits ..........................(x 1)
User Manual...........................(x 1)
LM-3014E
LM-3015E
14" TFT
15.0" TFT
LCD
LCD
1366 x 768
1024 x 768
TM-3014E
TM-3015E
14" TFT LCD
15.0" TFT LCD
1366 x 768
1024 x 768
1
LM-3210E
LM-3215E
9.7" TFT
15.0" TFT
LCD
LCD
TM-3215E
Resistive touch
panel
Advertisement
Related Manuals for POSIFLEX TM-30 Series
Summary of Contents for POSIFLEX TM-30 Series
- Page 1 1366 x 768 1024 x 768 (H) x (V) Touch Touch type Interface General Specification Display Interface Power 12V from Posiflex terminal VGA port Supply TM-30XXE/32XXE Models TM-3010E TM-3014E TM-3015E TM-3215E Display LCD Panel 9.7" TFT LCD 14" TFT LCD 15.0"...
-
Page 2: Front View
Views of LM/TM-3X10E Front View 9.7” LM-3010E LCD Panel 9.7” LM-3210E LCD Panel 9.7” TM-3010E P-Cap Touch Panel Rear View Mounting Bracket Mounting Bracket Mounting Bracket for XT series Terminals for HS series Terminals for KS series Terminals OSD Control Button OSD button EXT button ＋... - Page 3 Views of the LM/TM-3014E Front View 14” LM-3014E LCD Panel 14” TM-3014E P-Cap Touch Panel Rear View Mounting Bracket Side Mount Cover for XT series Terminals Mounting Bracket for KS series Terminals OSD Control Button OSD button EXT button ＋ button －...
- Page 4 Views of the LM/TM-3015E/3215E Front View 15” LM-3015E LCD Panel 15” LM-3215E LCD Panel 15” TM-3015E P-Cap Touch Panel 15” TM-3215E Resistive Touch Panel LED Indicator LED Indicator Rear View Side Mount Cover Mounting Bracket for KS series Terminals Mounting Bracket for XT series Terminals OSD Control Button OSD button...
- Page 5 According to the model type of your monitor and terminal, the relevant instructions are provided below to help you mount your monitors onto your Posiflex terminals. During installation, please ensure the terminal is properly turned off and disconnected from the power sources to avoid potential hazards.
- Page 6 Connect the monitor to the terminal using VGA cable. Connect one end of the VGA cable to the VGA port at the bottom I/O plate of your monitor. Take the other end of VGA cable to insert it into the VGA port of your terminal.
- Page 7 Mounting to KS Terminals Position your terminal with its rear facing towards you. Take L type mounting bracket out of the package. Align the four screw holes of the mounting bracket with the hole pattern at the back of the terminal. Insert four #6-32-12L fixing screws into the screw holes and then tighten the screws to secure the mounting bracket.
- Page 8 Pull outward the locking levers and then remove the neck cover in the direction shown by the arrow. Connect VGA cable to the terminal. For TM series users, attach Type-A connector of USB cable to your POS terminal. If the monitor you are using isn’t TM series, please skip this step.
- Page 9 For TM series users, grab Type-B connector of USB cable, and then insert it into Type-B USB port of your monitor to enable touch function. If the monitor you are using isn’t TM series, please skip this step. The installation is completed. While tilting the screen up or down in the direction shown by the arrow, do not press on the LCD panel.
- Page 10 After positioning your terminal with its screen facing downwards, lift the monitor and then align the four fixing screw holes on its mounting bracket with the hole pattern at the rear of the terminal as shown in the figure. Insert four #6-32-10L screws into the screws holes and then tighten them to secure the mounting bracket.
- Page 11 Push the rails back to the base. If the cable is threaded through the cable passage on the right, by following the sequence number, first slide the shorter rail horizontally and then longer one vertically into place in the direction shown by the arrow to fix your cable into place.
- Page 12 For TM series users, attach Type-A connector of USB cable to your POS terminal to enable touch function for your monitor. If the monitor you are using isn’t TM series, please skip this step. Tuck the extra cable into the bottom I/O compartment.
- Page 13 Identifying your Monitor as Secondary Touchscreen Monitor in Extended Mode Based on the type of your touch panels, you are required to adopt different approaches to set up TM series as the extended monitor when you attempt to extend the desktop across multiple monitors. In the following section the related descriptions will be offered to help you achieve the purpose.
- Page 14 For TM-30XXE Models with P-CAP Touchscreen If your monitors are TM-30XXE models, you may configure the display settings from Control Panel in Microsoft Windows to identify the monitor as the secondary touchscreen monitor. Please go through the below steps to complete configuration.
- Page 15 VGA output of the terminals in BIOS settings so that the monitor is able to extract power from the Posiflex terminals. However, if the monitor you are using is not manufactured by Posiflex, it is strongly suggested to deactivate the VGA port of your terminal in preventing your device from being damaged.
-
Page 16: Power Led Indicator
Power LED Indicator Power LED indicator, which is either located at the bottom of the screen or on bottom I/O plate depending on your model type, is used to notify users of the current status of your monitor by emitting various LED signals. Please refer to the below chart to accurately interpret the indicators status to facilitate your troubleshooting. - Page 17 9.7” LM/TM-3X10E or 15” LM/TM-3X15E Display Resolution Horizontal Frequency (KHz) Refresh Rate (Hz) 640 x 400 37.9 31.5 640 x 480 37.9 37.5 720 x 400 37.9 35.1 37.9 800 x 600 48.1 46.9 1024 x 768 48.4 Using the OSD Menu OSD, as known as On-Screen Display, is employed to assist users in adjusting a variety of monitor-related settings depending on personal preference.
- Page 18 To help you get started with the OSD menu, the following points are guidelines you are suggested to go through: Firstly, press the OSD button to access the OSD menu. Scroll through OSD menu options using either the “＋” or “－” button. Press the OSD button to select the particular menu option of interest.
- Page 19 OSD Menu Options Sub-menu items & Description Auto Adjustment Display Execute the auto-tune function for OSD menu, which will automatically perform fine tune of the image quality for optimizing screen performance. H Position Press the “＋” button to move the screen to the right;...
- Page 20 <MEMO>...
