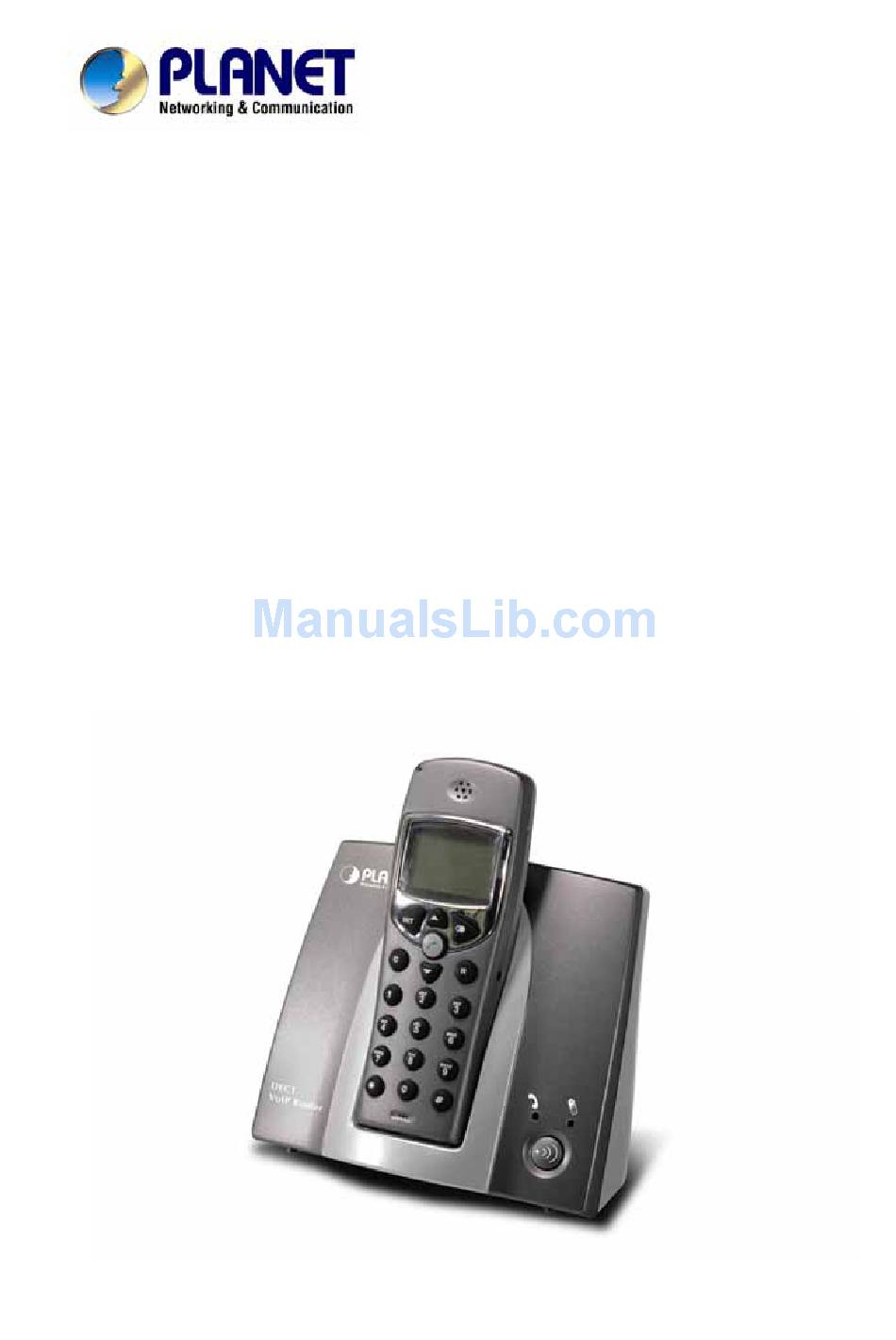

- Page 1 H.323/SIP DECT VoIP router VIP-320 User’s manual...
-
Page 2: Ce Mark Warning
Copyright Copyright (C) 2005 PLANET Technology Corp. All rights reserved. The products and programs described in this User’s Manual are licensed products of PLANET Technology, This User’s Manual contains proprietary information protected by copyright, and this User’s Manual and all accompanying hardware, software, and documentation are copyrighted. - Page 3 Revision User’s Manual for PLANET H.323/SIP VoIP Router: Model: VIP-320 Rev: 1.1 (September, 2005) Part No. EM-VIP320V1 TABLE OF CONTENTS...
-
Page 4: Table Of Contents
LAN IP address configuration via web configuration interface.......14 WAN IP address configuration via web configuration interface ......15 Chapter 3 Network Service Configurations........17 Configuring and monitoring your VIP-320 from web browser .........17 Overview on the web interface of VIP-320..............17 Manipulation of VIP-320 via web browser ..............17 Chapter 4 VoIP Configurations ............ - Page 5 Save Modification to Flash Memory................40 Chapter 6 DECT Handset Operations ..........41 Using Headset (optional) ....................41 2.2 DECT Screen Display ..................42 Register your DCT-100 to VIP-320 ................42 Un-register / Reset your DCT-100 .................43 Call transfer between DCT-100 ..................43 Conference call between DCT-100 ................43 VIP-320 DECT base settings ..................43...
-
Page 6: Chapter 1
VoIP technology, the PLANET VIP-320 is capable of handling both SIP and the H.323 calls. Up to 4 registrations to the SIP proxy or H.323 Gatekeeper, the VIP-320 is able to make calls to either H.323 or SIP voice communication environment. The VIP-320 is the ideal choice for Voice over IP communications and providing integrated Internet sharing features, such as Virtual server, SPI firewall protection, and DMZ support;... -
Page 7: Package Content
• Voice processing: Voice Active Detection, DTMF detection/ generation, G.168 echo cancellation (16mSec.), Comfort noise generation, Call progress detection, Gain Control DECT Features • GAP Compatible • Base can register up to 8 Handsets • Intercom call during external call, Call transfer between • handsets , three-way telephone meeting •... -
Page 8: Physical Details
Physical Details The following figure illustrates the front/rear panel of VIP-320. Front Panel of VIP-320 Rear Panel of VIP-320... -
Page 9: Led Display & Button
LED Display & Button Front Panels Descriptions Paring LED When the base connect to the handset Battery Charge When charging the handset’s battery. Handset charge Holder Holder the handset Intercom When it pairing LED Indicators Descriptions LINE LINE LED will light when PSTN.line is in use VoIP VoIP LED will light when talking through VoIP. - Page 10 Overview of DECT handset DCT-100 Keypad and button definition on DCT-100 Descriptions Intercom conversation mode Adjust the volume level during the conversation and menu selection on the LCD display. Last Number Redial Hang on / up telephone or pressing until to open /close speaker Cancel and Clear Power on / off Number 0 –9 and #...
-
Page 11: Dct-100 Installation
AAA size batteries. Never use other batteries or conventional alkaline batteries. Register your DCT-100 to VIP-320 • Press Intercom button on VIP-320 for 5 seconds until the Paring LED lights. • Press key to go into manual option. •... -
Page 12: Un-Register / Reset Your Dct-100
• Select the desired DECT base (Base1 for example). Press INT key, DCT-100 will display Searching: on the LCD screen • Wait till a machine hardware ID shows up, ex: 002F5-11708H, then press INT • When machine prompts for PIN number, inert PIN number 1590 then press INT, then DCT-100 will start to register to base and showing Searching…. -
Page 13: Chapter 2 Preparations & Installation
Microsoft Internet Explorer 4.01 or higher with Java support Default LAN interface IP address of VIP-320 is 192.168.0.1. You may now open your web browser, and insert 192.168.0.1 in the address bar of your web browser to logon VIP-320 web configuration page. -
Page 14: Lan/Wan Interface Quick Configurations
LAN/WAN Interface quick configurations Nature of PLANET VIP-320 is an IP Sharing (NAT) device, it comes with two default IP addresses, and default LAN side IP address is “192.168.0.1”, default WAN side IP address is “172.16.0.1”. You may use any PC to connect to the LAN port of VIP-320 to start machine administration.,... -
Page 15: Wan Ip Address Configuration Via Web Configuration Interface
It is suggested to keep the DHCP server related parameters Hint in default state to keep machine in best performance. After confirming the modification you’ve done, Please click on the Modify button to macke the changes effective. WAN IP address configuration via web configuration interface Execute your web browser, and insert the IP address (default: 172.16.0.1) of VIP in the adddress bar. -
Page 17: Chapter 3 Network Service Configurations
Provides user input data fields, check boxes, and for changing machine configuration settings Displays machine running configuration To start VIP-320 web configuration, you must have one of these web browsers installed on computer for management Netscape Communicator 4.03 or higher Microsoft Internet Explorer 4.01 or higher with Java support... - Page 18 VIP-320 main page...
-
Page 19: Chapter 4 Voip Configurations
Chapter 4 VoIP Configurations VIP-320 Status This page main display the current and last time VoIP call status & result. Parameter Description will show the date & time that your connected PC now. PC Time will show the date & time of this VoIP router, the date amd time is get Gateway Time from SNTP server. -
Page 20: Line Setting
Server” For some reason (ex. All lines of this VoIP router are busy), here will Error Message: display the failure information of last time VoIP Call in. Line Setting This page will setup the phone line information each port. Parameter Description display FXS interfase the port number. -
Page 21: Tone Config
number. That mean it will direct call out by VoIP when you off hook the phone of this line. Tone Config This page defines the tones generated to the phone connected to the phone port. All lines use same tone parameters. After modify the tone parameters, you must save modify then Reboot to let the modified parameters work. -
Page 22: Voip Call Out
VoIP Call Out This page defines the routing rule for Call out to VoIP. (User key in the phone number through phone set dial pad, then VoIP router translate the phone number by the routing table setting here to destination IP, and dial out number then call out via network protocol). Each time when you off hook the phone connected to this VoIP router, you will hear a dial tone to remind you to key in the phone number, after you input the number you called, if digits of the number of you called is not exceed the Max Digits, please remember to press the # key for ending the input. - Page 23 is a compare order rule on this routing table. That mean the VoIP router will check the rule list from top to bottom one by one, any rule item matched with the prefix digits that user key in will go to call out directly no regard to the rest rules below.
-
Page 24: Voip Call In
number will be 0,22199518 ( “, “ mean wait 1 second). This example is especially for speed dial function. Define the optional special call out parameters on this destination. Profile Please input the name you Udefined on the profile (Please refer to the “VoIP Config Routing Setup Routing Profile”) list. - Page 25 Parameter Description Define the Prefix number this rule service, any VoIP called from network dialed number prefix digits matched with the rule will call out to phone by this rule define. Please Notify there is a compare order rule on this routing table.
- Page 26 Assign which gatekeeper to authorize this incoming VoIP call before call out. Server For example, if the dial number should be checked by server 1 setting on the “Regster Server” menu (Please refer to the “VoIP Config Register Sever”). When the call is coming , Before or After to pick up the phone , the Server should check that has the speaker got authorization from Register Server ? After setting on After function , when the call is coming, Server will ring...
-
Page 27: Call Setup
Please remember to press the modify button to take it effect. For store back to flash memory, please press “Save Modification” (Plaase refer to the “Syetem Maintenance Save Modification”). Call Setup This page defines the optional special VoIP parameters when making/received a VoIP call. For define some special parameters for different VoIP equipment or authorize purpose, please add a profile at “VoIP Config Call Routing... -
Page 28: Call Forwarding
OFF: FAX over IP is disable. Select the voice payload frame on each UDP package VoIP transmit. Package Frame More frames into one package is save more bandwidth. The default frames on each package is 3. ON: Enable Fast Start capability during Q.931 handshaking. Q.931 Fast Start OFF: Disable Fast Start capability during Q.931 handshaking. - Page 29 No answer Please add a profile at “VoIP Config Call Routing Call Setup” and put the name of profile on the Call out Routing table (Please refer to the “VoIP Config Call Routing /VoIP Call Out”). Parameter Description Define the forward IP and forward phone number when there is no match rule setting on “VoIP Call Out Routing”...
-
Page 30: Register Server
Register Server If this VoIP router want to use GK/SIP proxy service to transfer the VoIP call, you can input the GK /SIP information here. The VoIP router can register to up to four GK/SIP proxy simultaneously. Parameter Description Success: Register successful. Register Server Status Failure: Register failure. -
Page 31: Webcall
When voice communication is established via H.323 protocol, please add a ”h323:” in front of the IP address. Hint Such as: the GK IP address is 192.168.0.100, then input “h323:192.168.0.100” in the IP address. When voice communication via the SIP protocol, please add a “sip:”... -
Page 32: Webcall Config
Parameter Description Show the IP of this VoIP router Gateway IP Select the name you want to make connect, this is defined on Web Call Name page. (Please refer to the “VoIP Config Web Call Setting call). Press to make a call. Call Stop the call. - Page 33 name, please rename your logo graphic file(.bmp, .jpg, .gif) to “Welcome” before upload. There is a file size limitation. Please press the Browse button to select the “Welcome” file you want to upload and press Upload to Upload it. Delete this rule item on routing table. Delete Stop the call.
-
Page 34: Chapter 5
Chapter 5 System Configurations System Config Bridge Mode Setting This page allows you to disable/enable this device become bridge device or not. When it becomes a bridge device, bridge interface use LAN's IP address, LAN's subnet mask. When working on Bride Mode, the VoIP router will use only the LAN setting IP, The VoIP router will use the same LAN IP setting as WAN IP. -
Page 35: Lan To Wan Access Rules
LAN-to-WAN Access Rules: You can define LAN-to-WAN network access rules which evaluate the network traffic's source IP address, destination IP address, and communication port to decide if it's allowed to pass through the firewall. WAN-to-LAN Access Rules: You can define WAN-to-LAN network access rules which evaluate the network traffic's source IP address, destination IP address, and communication port to decide if it's allowed to pass through the firewall. -
Page 36: Wan To Lan Access Rules
WAN to LAN Access Rules This pages allows you to define WAN-to-LAN network access rules which evaluate the network traffic's source IP address, destination IP address, and communication port to decide if it's allowed to pass through the firewall. By default, the stateful packet inspection module of this router blocks all traffic to the LAN that originates from the Internet. -
Page 37: Dhcp Server Setting
DHCP Server Setting This page allows you to set up configurations of DHCP server built in the router. The DHCP server of this router provides IP addresses, the subnet mask, the gateway address, and DNS server addresses to the LAN computers and devices dynamically. The default IP address space of this DHCP server is 192.168.0.x, with subnet mask 255.255.255.0, and the default gateway of this network is the IP address of this router (192.168.0.1). -
Page 38: Virtual Server
Virtual Server This page allows you to map a TCP or a UDP port of the router to a host which actually deals with requests on the private network. This page let you set up the DMZ service on the VoIP router. -
Page 39: System Maintenance
System Maintenance This page let you backup / Restore all of your configuration parameters on the VoIP router. It is very good idea to back up all of your VoIP router configuration parameters after install. Configurations To Backup, press Download setting backup file, and input the file name you want and file location to save. -
Page 40: Reboot System
Reboot System Use the Reboot button on this page to reboot your VoIP router, before you reboot, please make sure you have to press the “Saved modification” to save your current configuration to Flash ROM, otherwise all the change will be disappear after reboot. Save Modification to Flash Memory Most of the VoIP router parameters will take effective after modifications, but it is just temporary stored on RAM only, it will disappear after your reboot or power off the VoIP router, to save the parameters into... -
Page 41: Chapter 6 Dect Handset Operations
Chapter 6 DECT Handset Operations In machine default state, the DECT handset DCT-100 is registered with VIP-320. When adding more DECT handsets to the VIP-320, these handsets should be registered with VIP-320 to be operational. Using Headset (optional) The headset jack is located in the middle right side of the handset and is 2.5mm standard plug. -
Page 42: 2.2 Dect Screen Display
This icon is displayed at all times when your phone is on, and shows the level of your battery charge. The more bars, the greater the charge. During charging, the icon will flash. Register your DCT-100 to VIP-320 • Press Intercom button on VIP-320 for 5 seconds until the Paring LED lights. • Press key to go into manual option. -
Page 43: Un-Register / Reset Your Dct-100
3 seconds, and the destination handset will be joined in the voice conferencing. VIP-320 DECT base settings The DECT base settings in VIP-320 have been optimized for most voice communication applications. It is not necessary to change the parameters in most occasions. - Page 44 BS setting Base setting is using for factory mode, after modify BS setting, please restart the base! HS setting >BS setting Factory default PIN is 1590 Press button to select [BS setting]. Press button to confirm and the display will show [PIN: ] PIN: Enter the four digits base PIN.
- Page 45 become annulment! Press button to show [EW361001] (Firmware) EW3TIJ05 This setting is to show the base firmware version. Press * button and the display will show DEFAULT N default Press button to switch to DEFAULT Y reload factory DEFAULT N Time for reload factory default is 2 seconds then will display OK This setting use to reset default factory default.
- Page 46 Press button to show option code 3232242432 Press button to select [BARRING] The base can setting barring number, if the first-part digits of dial BARRING number are the same as barring number, then the dialing number will be block. Press to switch from [No1:] to [No4:] and button for enter, C for cancel, then select handset to active barring number.
-
Page 47: Appendix
Appendix Appendix A Voice communications There are several ways to make calls to desired destination in VIP-320. In this chapter, we’ll lead you step by step to establish your first voice communication via web browsers operations. Peer-to-Peer (P2P) mode H.323 IP Phone IP Address: 172.16.0.100... -
Page 48: Voice Communication Via Sip Proxy Server -Sip50
Such as: the destination H.323 device is 172.16.0.100, then Hint input “h323:172.16.0.100” in the IP address column of VIP-320/VIP-280 VoIP Callout setting page When the calling party is a SIP device, please add a “sip:” in front of the IP address. - Page 49 When voice communication is established via “Gatekeeper”, please add a ”h323:” in front of the IP address. Such as: the GK IP address is 192.168.0.100, then input Hint “h323:192.168.0.100” in the IP address. When voice communication via the SIP proxy server, please add a “sip:”...
- Page 50 ====================================================== Test the scenario: To verify the VoIP communication, you may make calls from SIP client (VIP-280) 280 to the SIP client (VIP-320) 320 or reversely make calls from SIP client (VIP-320) 320 to the SIP client (VIP-280) 280 =======================================================...
-
Page 51: Appendix B Vip-320 Specifications
Appendix B VIP-320 Specifications Product H.323 / SIP DECT VoIP Router Model VIP-320 Hardware 2 x 10/100Mbps RJ-45 port 1 x 10/100Mbps RJ-45 port PSTN 1 x RJ-11 connection DECT 1 x DECT GAP compatible base Standards and protocol H.323 version v2/v3,H.323 Fast start, and H.245 DTMF relay, SIP 2.0...
