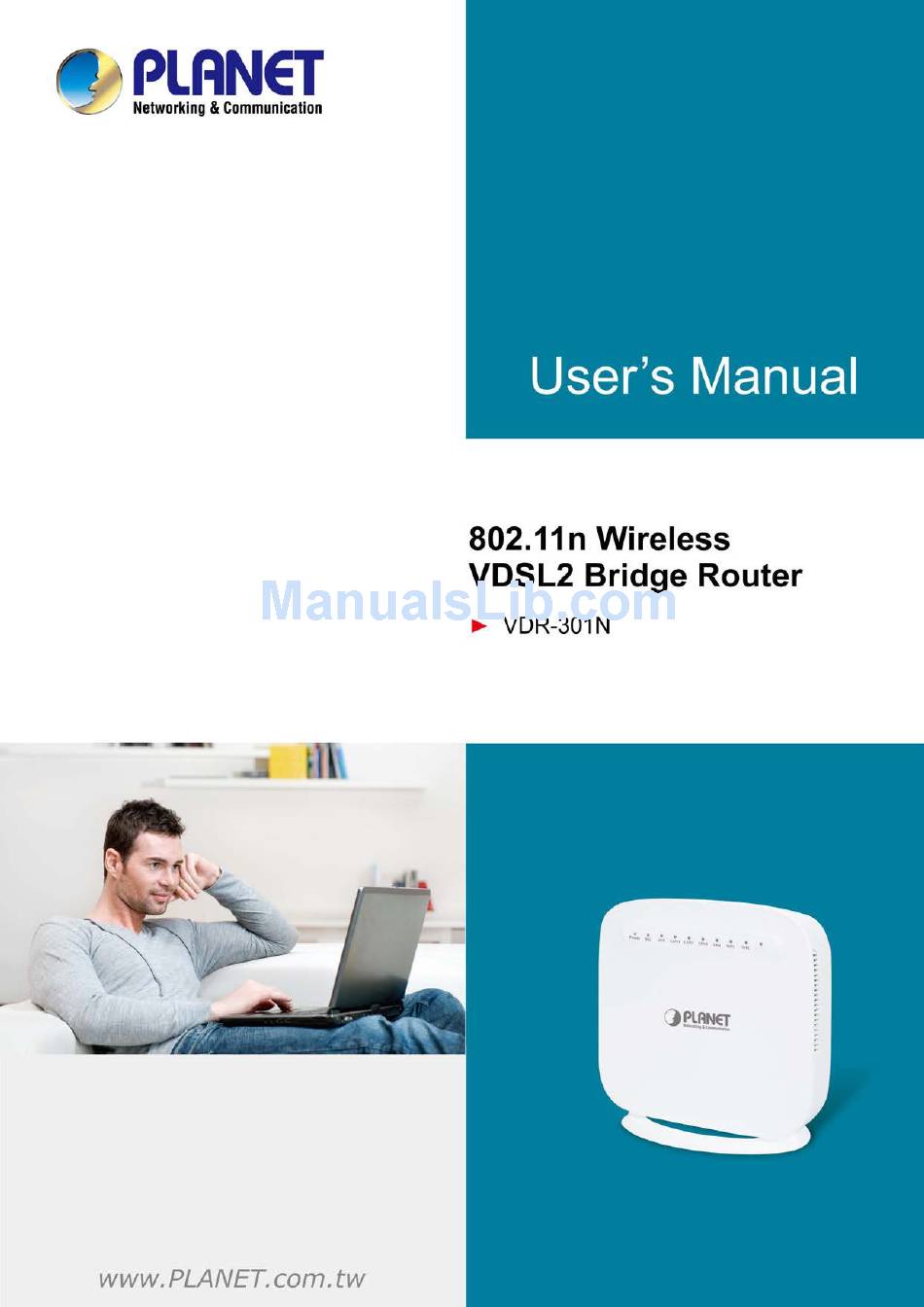

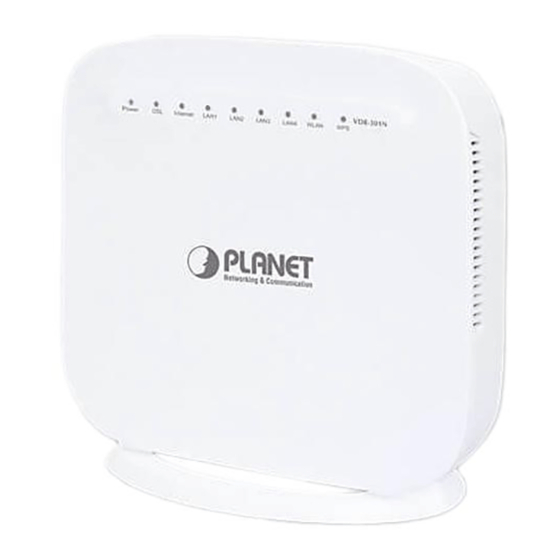

  • Page 1 User Manual of VDR-301N...

  • Page 2: Federal Communication Commission Interference Statement

    Copyright Copyright  2017 by PLANET Technology Corp. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of PLANET.

  • Page 3: National Restrictions

    (2) This device must accept any interference received, including interference that may cause undesired operation. Federal Communication Commission (FCC) Radiation Exposure Statement This equipment complies with FCC radiation exposure set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation.
  • Page 4 User Manual of VDR-301N WEEE regulation To avoid the potential effects on the environment and human health as a result of the presence of hazardous substances in electrical and electronic equipment, end users of electrical and electronic equipment should understand the meaning of the crossed-out wheeled bin symbol. Do not dispose of WEEE as unsorted municipal waste;...

  • Page 5: Table Of Contents

    1.4 Product Specifications ....................13 CHAPTER 2 HARDWARE INSTALLATION ....................16 2.1 Hardware Description ..................... 16 2.1.1 Front Panel of VDR-301N ......................17 2.1.2 LED Indications of VDR-301N....................17 2.1.3 Rear Panel of VDR-301N ......................18 CHAPTER 3 CONNECTING TO THE ROUTER .................... 19 3.1 System Requirements ....................
  • Page 6 5.3.5 LAN ............................47 5.3.6 WLAN ............................55 5.4 Advanced ........................62 5.4.1 Route ............................62 5.4.2 NAT ............................66 5.4.3 QoS ............................73 5.4.4 CWMP (TR-069) ........................75 5.4.5 Port Mapping ..........................76 5.4.6 Others ............................77 5.5 Service..........................81 5.5.1 IGMP ............................
  • Page 7 APPENDIX A: CABLE PROFILES ....................... 122 A.1 Device’s RJ45 Pin Assignments ................. 122 A.2 RJ45 Cable Pin Assignment ..................122...

  • Page 8: Chapter 1 Product Introduction

    User Manual of VDR-301N Chapter 1 Product Introduction 1.1 Package Contents Thank you for choosing PLANET VDR-301N. Before installing the router, please verify the contents inside the package box. VDR-301N Quick Guide Power Adapter RJ45 Cable RJ11 Cable VDSL Splitter...

  • Page 9: Product Description

    Delivering High-demanding Service Connectivity for ISP / Triple Play Devices The VDR-301N provides excellent bandwidth to meet the demand of the triple play devices for home entertainment and communication. With the capability of 100/100Mbps symmetric data transmission, the VDR-301N enables many multi-media services to work on local Internet, such as VOD (Video on Demand), Voice over IP, Video phone, IPTV, Internet caching server, distance education, and so on.
  • Page 10 User Manual of VDR-301N ADSL2+ Fallback For those ISPs that still provide ADSL broadband service, the VDR-301N can support transmission rates up to 24Mbps downstream and 3.5Mbps upstream with ADSL2+ technology. The VDR-301N supports PPPoA (RFC 2364 - PPP over ATM Adaptation Layer 5), RFC 2684 encapsulation over ATM (bridged or routed), PPP over Ethernet (RFC 2516), and IP over ATM (IPoA, RFC 1483) to establish a connection with ISP and it can be also directly switched over to VDSL2 after the ISP network upgrade.
  • Page 11 IPv6 network structure now and in the future. As more network devices are growing and the need for larger addressing and higher security becomes critical, the VDR-301N is the best choice for ISPs to build the IPv6 FTTx edge service and for SMBs to connect with the IPv6 network.

  • Page 12: Product Features

    Broadband Router. UPnP is supported by Windows XP, 7 or later.  DMZ Support: The VDR-301N can translate public IP addresses into private IP address to allow unlimited 2-way communication with the servers or individual users on the Internet. It provides the most flexible way to run programs smoothly for programs that might be restricted in NAT environment.

  • Page 13: Product Specifications

    User Manual of VDR-301N  Multiple SSIDs: It allows users to access different networks through a single AP.  Management Features  TR069 compliant: Support for centralized management node of multiple VDSL2 CPEs 1.4 Product Specifications Model VDR-301N Product Description...
  • Page 14 User Manual of VDR-301N  Full-rate ANSI T1.413 Issue 2  ITU-T G.992.1(G.DMT)  ITU-T G.994.1 (G.hs) ADSL Features  ITU-T G.995.1  ITU-T G.992.3 (G.dmt.bis)  ITU-T G.992.5  ATM Adaptation Layer Type 5 (AAL5)  Multiple Protocol over AAL5 (RFC 2684, formerly RFC 148) ...
  • Page 15 User Manual of VDR-301N 802.11n(40MHz): up to 300 Mbps 802.11n(20MHz): up to 144.4 Mbps Data Transmission 802.11g: Rates 54, 48, 36, 24, 18, 12, 9, 6Mbps per channel, auto fallback for extended range 802.11b: 1, 5.5, 2, 1 Mbps per channel, auto fallback for extended range <20dBm(EIRP)

  • Page 16: Chapter 2 Hardware Installation

    User Manual of VDR-301N Chapter 2 Hardware Installation This chapter offers information about installing your router. If you are not familiar with the hardware or software parameters presented here, please consult your service provider for the values needed. 2.1 Hardware Description...

  • Page 17: Front Panel Of Vdr-301N

    Data is being transmitted through the wireless interface. Green WLAN is disabled. Connection succeeds under Wi-Fi Protected Setup. Flashing Negotiation is in progress under Wi-Fi Protected Setup. Green Wi-Fi Protected Setup is disabled. Table 2-1 The LED Indication of VDR-301N...

  • Page 18: Rear Panel Of Vdr-301N

    2.1.3 Rear Panel of VDR-301N The rear panel provides the physical connectors connected to the power adapter and any other network device. Figure 2-2 shows the rear panel of the VDR-301N. Figure 0-2 VDR-301N Rear Panel Rear Panel Port and Button Definition...

  • Page 19: Chapter 3 Connecting To The Router

     The above PC is installed with Web browser 1. The Router in the following instructions is named as PLANET VDR-301N. 2. It is recommended to use Internet Explore 8.0 or above to access the Router. 3.2 Installing the Router Please connect the device to you computer as follows: STEP 1.
  • Page 20 User Manual of VDR-301N STEP 2. Connect the Power Adapter to the VDR-301N. Check whether the Power LED on the front panel is on accordingly. Figure3-1 shows the power adapter connection diagram. Figure 3-1 VDR-301N Power Adapter Connection Diagram STEP 3. Use Ethernet cable to connect “LAN” port of the router and “LAN” port of your computer.

  • Page 21: Chapter 4 Installation Guide

    User Manual of VDR-301N Chapter 4 Installation Guide 4.1 Configuring the Network Properties Configuring PC in Windows 7 1. Go to Start, Control Panel, Network and Internet, and Network and Sharing Center. Click Change adapter settings on the left banner.
  • Page 22 User Manual of VDR-301N 4. Select Internet Protocol Version 4 (TCP/IPv4) and click Properties. Figure 4-3 TCP/IP Setting 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically button. 6. Click OK to finish the configuration.

  • Page 23: Configuring Pc In Windows Xp

    User Manual of VDR-301N Configuring PC in Windows XP 1. Go to Start and Control Panel (in Classic View). In the Control Panel, double-click on Network Connections 2. Double-click Local Area Connection. Figure 4-5 Select Network Connections 3. In the Local Area Connection Status window, click Properties.
  • Page 24 User Manual of VDR-301N 4. Select Internet Protocol (TCP/IP) and click Properties. Figure 4-7TCP/IP Setting 5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically button. 6. Click OK to finish the configuration. Figure 4-8 Obtain an IP address automatically...

  • Page 25: Configuring With Web Browser

    User Manual of VDR-301N 4.2 Configuring with Web Browser It would be better to change the administrator password to safeguard the security of your network. To configure the router, open your browser, type “http: //192.168.1.1” into the address bar and click “Go” to get to the login page.

  • Page 26: Chapter 5 System Settings

    User Manual of VDR-301N Chapter 5 System Settings After logging in, the page shown in the following figure appears. You can check, configure and modify all the settings. Figure 5-1 Status...

  • Page 27: Status

    User Manual of VDR-301N 5.1 Status In the navigation bar, choose Status. On the Status page that is displayed contains: Device Info and Statistics. 5.1.1 Device Information Choose Status > Device Info and the page displayed shows the current status and some basic settings of the router, such as software version, DSL status, CWMP status, LAN configuration, DNS status and WAN interfaces.

  • Page 28: Statistics

    User Manual of VDR-301N Figure 5-3 DSL Info 5.1.3 Statistics Choose Status > Statistics. Click Statistics in the left pane and the page shown in the following figure appears. On this page, you can view the statistics of each network port.

  • Page 29: Wizard

    User Manual of VDR-301N 5.2 Wizard When subscribing to a broadband service, you should be aware of the method by which you are connected to the Internet. Your physical WAN device can be either Ethernet or RJ11 port. The technical information about the properties of your Internet connection is provided by your Internet Service Provider (ISP).

  • Page 30: Bridge

    User Manual of VDR-301N 5.2.1 Bridge Figure 5-6 Wizard Bridge After setting, click Next and the page as shown in the following figure appears. Figure 5-7 Wizard Bridge WLAN...
  • Page 31 User Manual of VDR-301N And click Apply changes to save the configuration. Figure 5-8 Wizard Bridge Saved...

  • Page 32: Ipoe

    User Manual of VDR-301N 5.2.2 IPoE Figure 5-9 Wizard IPoE Figure 5-10 Wizard IPoE WLAN...
  • Page 33 User Manual of VDR-301N And click Apply changes to save the configuration. Figure 5-11 Wizard IPoE Saved...

  • Page 34: Pppoe

    User Manual of VDR-301N 5.2.3 PPPoE Figure 5-12 Wizard PPPoE Figure 5-13 Wizard PPPoE WLAN...
  • Page 35 User Manual of VDR-301N And click Apply changes to save the configuration. Figure 5-14 Wizard PPPoE Saved...

  • Page 36: Pppoa

    User Manual of VDR-301N 5.2.4 PPPoA Figure 5-15 Wizard PPPoA Figure 5-16 Wizard PPPoA WLAN...
  • Page 37 User Manual of VDR-301N And click Apply changes to save the configuration. Figure 5-17 Wizard PPPoA Saved...

  • Page 38: 1483 Routed

    User Manual of VDR-301N 5.2.5 1483 Routed Figure 5-18 Wizard 1483 Routed Figure 5-19 Wizard 1483 Routed WLAN...
  • Page 39 User Manual of VDR-301N And click Apply changes to save the configuration. Figure 5-20 Wizard 1483 Routed Saved...

  • Page 40: Setup

    User Manual of VDR-301N 5.3 Setup In the navigation bar, click Setup. The Setup page that is displayed contains WAN, LAN and WLAN. 5.3.1 WAN Choose Setup > WAN and the page is displayed below. Figure 5-21 WAN The following table describes the parameters:...
  • Page 41 User Manual of VDR-301N 32 to 65535 (1 to 31 are reserved for known protocols) Encapsulation You can select LLC or VC-Mux. Channel Mode You can choose Bridge, IPoE, PPPoE, PPPoA, 1483 Routed, IPoA Select it to enable Network Address Port Translation (NAPT) function. If...
  • Page 42 User Manual of VDR-301N into the WAN Interfaces Table. Select the WAN in the WAN Interfaces Table, and modify the Modify parameters. After finishing, click it to apply the settings. This table shows the existing WAN settings. The maximum item of this WAN Interfaces Table table is eight.

  • Page 43: Auto Pvc

    User Manual of VDR-301N 5.3.2 Auto PVC Choose Setup > Auto PVC and the page is displayed below. On this page, you can get a PVC automatically by detecting function. Add or delete the PVC that you do not need.

  • Page 44: Atm

    User Manual of VDR-301N 5.3.3 ATM Choose Setup > ATM and the page is displayed below. On this page, you can configure the parameters of the ATM, including QoS, PCR, CDVT, SCR and MBS. Figure 5-23 ATM The following table describes the parameters:...

  • Page 45: Dsl

    User Manual of VDR-301N may never exceed. Cell delay variation tolerance (CDVT) is the amount of delay permitted CDVT between ATM cells (in microseconds). Sustained Cell Rate, measured in cells/sec., is the average cell rate over the duration of the connection.
  • Page 46 User Manual of VDR-301N The following table describes the parameters: Field Description Choose preferred xDSL standard protocols. G.Lite: G.992.2 Annex A G.Dmt: G.992.1 Annex A DSL modulation T1.413: T1.413 issue #2 ADSL2: G.992.3 Annex A ADSL2+: G.992.5 Annex A VDSL2: ITU G.993.2 AnnexL Option You can choose Enable or Disable ADSL2/ADSL2+ AnnexL capability.

  • Page 47: Lan

    User Manual of VDR-301N 5.3.5 LAN Choose Setup > LAN. The LAN page that is displayed contains LAN, DHCP, DHCP Static and LAN IPv6. 5.3.2.1 LAN Click LAN in the left pane and the page shown in the following figure appears. On this page, you can change IP address of the router.
  • Page 48 User Manual of VDR-301N 5.3.2.2 DHCP Dynamic Host Configuration Protocol (DHCP) allows the individual PC to obtain the TCP/IP configuration from the centralized DHCP server. You can configure this router as a DHCP server or disable it. The DHCP server can assign IP address, IP default gateway, and DNS server to DHCP clients.
  • Page 49 User Manual of VDR-301N By default, all ports are selected; click it to unselect and those ports cannot Interface function with the IP address. Specify the lowest and highest addresses in the pool. It specifies the first IP IP Pool Range address in the IP address pool.
  • Page 50 User Manual of VDR-301N Click Set Vendor Class IP Range on the DHCP Mode page and the page as shown in the following figure appears. On this page, you can configure the IP address range based on the device type.
  • Page 51 User Manual of VDR-301N  DHCP Relay In the DHCP Mode field, choose DHCP Relay and the page shown in the following figure appears. Figure 5-30 DHCP Relay The following table describes the parameters: Field Description If set to DHCP Relay, the router acts as a surrogate DHCP Server and...
  • Page 52 User Manual of VDR-301N 5.3.2.3 DHCP Static Click DHCP Static in the left pane and the page shown in the following figure appears. You can assign the IP addresses on the LAN to the specific individual PCs based on their MAC address.
  • Page 53 User Manual of VDR-301N 5.3.2.4 LAN IPv6 On this page, you can configure the LAN IPv6. Choose Setup > LAN > LAN IPv6. The IPv6 LAN setting page as shown in the following figure appears. Figure 5-32 LAN IPv6 The following table describes the parameters:...
  • Page 54 User Manual of VDR-301N RA Setting Field Description Enable Enable or disable the Router Advertisement feature. Enable or disable the “Managed address configuration” flag in RA M Flag packet. O Flag Enable or disable the “other configuration” flag in RA packet.

  • Page 55: Wlan

    Figure 5-33 WLAN The following table describes the parameters: Field Description Disable Wireless LAN Enable/Disable the wireless function for VDR-301N. Interface Select the appropriate band from the list provided to correspond with your Band network setting. Mode Select AP Mode.
  • Page 56 100%, 80%, 50%, 25%, 10%. Associated Clients Click it to see the clients currently associated with VDR-301N. Click Show Active Client and the page shown in the following figure appears. You can view the information of the clients connected to the VDSL2 Router.
  • Page 57 User Manual of VDR-301N 5.3.6.2 Security This screen allows you to set up the wireless security. Turn on WEP or WPA by using encryption keys that could prevent any unauthorized access to your WLAN. Figure 5-35 Wireless Security The following table describes the parameters:...
  • Page 58 User Manual of VDR-301N There are 2 types of authentication mode for WPA. Enterprise (RADIUS): WPA RADIUS uses an external RADIUS server to perform user authentication. To use WPA RADIUS, enter the IP address of the RADIUS server, the RADIUS port (default is 1812) and WPA Authentication the shared secret from the RADIUS server.
  • Page 59 This page allows administrator to have access control by entering MAC address of client stations. When this function is enabled, MAC address can be added to access control list and only those clients whose wireless MAC address are in the access control list will be able to connect to your VDR-301N. Figure 5-37 Wireless Access Control...
  • Page 60 User Manual of VDR-301N 5.3.6.5 Advanced This page allows advanced users who have sufficient knowledge of wireless LAN. These settings will not be changed unless you know exactly what will happen for the changes you made on your VDSL2 Router.
  • Page 61 User Manual of VDR-301N 5.3.6.6 WPS Wi-Fi Protected Setup (WPS) is a push-button or pin to simplify a secure network set-up. Figure 5-39 WPS The following table describes the parameters: Field Description Disable WPS Enable or Disable the WPS function.

  • Page 62: Advanced

    User Manual of VDR-301N 5.4 Advanced In the navigation bar, click Advanced. On the Advanced page that is displayed contains Route, NAT, QoS, CWMP (TR-069), Port Mappings and Others. Figure 5-40 Advanced 5.4.1 Route The Routing page enables you to define specific route for your Internet and network data. Most users do not need to define routes.
  • Page 63 User Manual of VDR-301N 5.4.1.1 Static Route Click Static Route in the left pane and the page shown in the following figure appears. This page is used to configure the routing information. You can add or delete IP routes. Figure 5-41 Static Route...
  • Page 64 User Manual of VDR-301N Update Update the selected destination route on the Static Route Table. Delete Selected Delete a selected destination route on the Static Route Table. Click Show Routes and the page shown in the following figure appears. You can view the information of the clients connected to the VDSL2 Router.
  • Page 65 User Manual of VDR-301N The following table describes the parameters: Field Description Destination Enter the IPv6 address of the destination device. Prefix Length Enter the prefix length of the IPV6 address. Enter the IPv6 address of the next hop in the IPv6 route to the Next Hop destination address.

  • Page 66: Nat

    User Manual of VDR-301N The following table describes the parameters: Field Description You can select Off or On. Apply Click it to save the settings on this page. Interface Choose the router interface that uses RIP. Choose the interface version that receives RIP messages. You can choose RIP1, RIP2, or Both.
  • Page 67 User Manual of VDR-301N Figure 5-45 DMZ The following table describes the parameters: Field Description WAN Interface Choose a WAN Interface. DMZ Host IP Address Enter an IP address of the DMZ host. Current DMZ Table A list of the previously configured DMZ information.
  • Page 68 User Manual of VDR-301N 5.4.2.2 Virtual Server Internet users would not be able to access a server on your LAN because of native NAT protection.The “virtual server” feature solves these problems and allows internet users to connect to your servers.
  • Page 69 User Manual of VDR-301N LAN Setting You can choose IP Address, Hostname or MAC Address. Enter the IP address of the virtual server. It is in the same network LAN IP Address segment with LAN IP address of the router.
  • Page 70 User Manual of VDR-301N Figure 5-48 NAT Exclude IP 5.4.2.5 Port Trigger Some applications require multiple connections, like Internet games, video conferencing, Internet calling and so on. These applications cannot work with a pure NAT Router. Port Trigger is used for some of these applications that can work with an NAT Router.
  • Page 71 User Manual of VDR-301N Click the Usual Application Name drop-down menu to choose the application you want to set up for port triggering. When you have chosen an application the default Trigger settings will populate the table below. If the application you want to set up isn’t listed, click the User-defined Application Name button and type in a name for the trigger in the Custom application field.
  • Page 72 User Manual of VDR-301N 5.4.2.7 NAT IP Mapping NAT is short for Network Address Translation. The Network Address Translation Settings window allows you to share one WAN IP address for multiple computers on your LAN. Click NAT IP Mapping in the left pane and the page shown in the following figure appears.

  • Page 73: Qos

    User Manual of VDR-301N 5.4.3 QoS 5.4.3.1 QoS TheVDR-301N provides a control mechanism that can provide a different priority to different users or data flows. The QoS is enforced by the QoS rules in the QoS table. A QoS rule contains two configuration blocks: Traffic Classification and Action.
  • Page 74 User Manual of VDR-301N 5.4.3.2 Traffic Shaping Choose Advanced > QoS > Traffic Shaping and the page shown in the following page appears. The traffic shaping function allows you to regulate network data transfer to ensure or prioritize performance by limiting uplink and downlink speeds.

  • Page 75: Cwmp (Tr-069)

    User Manual of VDR-301N 5.4.4 CWMP (TR-069) Choose Advanced > CWMP and the page shown in the following page appears. On this page, you can configure the TR-069 CPE. Figure 5-55 CWMP The following table describes the parameters: Field Description Enable Enable/Disable the function to access.

  • Page 76: Port Mapping

    The LAN and WAN interfaces could be included. Traffic coming from one interface of a group can only be flowed to the interfaces in the same interface group. Thus, the VDR-301N can isolate traffic from group to group for some applications. By default, all the interfaces (LAN and WAN) belong to the default group, and the other four groups are all empty.

  • Page 77: Others

    User Manual of VDR-301N The following table describes the parameters: Field Description Click the radio button to enable/disable the interface group feature. If Enabled/Disabled disabled, all interfaces belong to the default group. To manipulate a mapping group: 1. Select a group from the table.
  • Page 78 User Manual of VDR-301N Click Show MACs and the page shown in the following figure appears. This table shows a list of learned MAC addresses for this bridge. Figure 5-58 Forwarding Table 5.4.6.2 Client Limit Choose Advance > Others > Client Limit and the page shown in the following figure appears. This page is used to configure the capability of forcing how many devices can access the Internet.
  • Page 79 User Manual of VDR-301N 5.4.6.3 Tunnel Choose Advanced > Others > Tunnel and the page shown in the following figure appears. This page is used to configure the IPv6 with LAN to transfer to IPv4. Figure 5-60 Tunnel The following table describes the parameters:...
  • Page 80 User Manual of VDR-301N 5.4.6.4 Telnet Choose Advanced > Others > Telnet in the left pane and the page shown in the following figure appears. You can enable or disable the Telnet function on this page. Figure 5-61 Telnet 5.4.6.5 Others Choose Advanced >...

  • Page 81: Service

    User Manual of VDR-301N 5.5 Service In the navigation bar, click Service. On the Service page that is displayed contains IGMP, UPnP, DNS, DDNS and VPN. 5.5.1 IGMP 5.5.1.1 IGMP Proxy Choose Service > IGMP and the page shown in the following figure appears. IGMP proxy enables the system to issue IGMP host messages on behalf of hosts that the system discovered through standard IGMP interfaces.
  • Page 82 User Manual of VDR-301N The amount of time between IGMP General Query messages sent by Query Interval the router (if the router is a querier on this subnet). The maximum amount of time in seconds that the IGMP router waits to receive a response to a General Query message.

  • Page 83: Upnp

    User Manual of VDR-301N function to access. Robust Counter Robust factor of the MLD Counter. The amount of time between IGMP General Query messages sent by Query Interval the router (if the router is a querier on this subnet). The maximum amount of time in seconds that the IGMP router waits to receive a response to a General Query message.
  • Page 84 User Manual of VDR-301N 5.5.3.1 DNS Click DNS in the left pane and the page shown in the following figure appears. Figure 5-66 DNS The following table describes the parameters: Field Description Select it, and the router accepts the first received DNS assignment from...

  • Page 85: Ddns

    Click DDNS in the left pane and the page shown in the following figure appears. This page is used to configure the dynamic DNS address from DynDNS.org, TZO, PHDNS or PlanetDDNS. You can add or remove to configure dynamic DNS. The Planet DDNS is free for customers Figure 5-68 DDNS...
  • Page 86 The password provided by DDNS provider. First of all, please go to http://www.planetddns.com to register a Planet DDNS account, and refer to the FAQ (http://www.planetddns.com/index.php/faq) for how to register a free account. To select Service > DDNS Step 1. Select Planet DDNS...
  • Page 87 Apply the settings and ensure you have connected the WAN port to the Internet. In a remote device, enter the Domain Name to the internet browser’s address bar. You can go to My Devices page of Planet DDNS website to check if the “Last Connection IP” is displayed. This indicates your DDNS service is working properly.

  • Page 88: Vpn

    User Manual of VDR-301N 5.5.5 VPN Click VPN in the left pane and the page shown in the following figure appears. Figure 5-69 VPN The following table describes the parameters: Field Description Name Enter the name of the VPN server...

  • Page 89: Firewall

    User Manual of VDR-301N 5.6 Firewall Choose Firewall and the Firewall page that is displayed contains MAC Filter, IP/Port Filter, URL Filter, ACL and DoS. 5.6.1 MAC Filter Click MAC Filter in the left pane and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets from your local network to Internet through the gateway.

  • Page 90: Ip/Port Filter

    User Manual of VDR-301N 5.6.2 IP/Port Filter 5.6.2.1 IP/Port Filter Click IP/Port Filter in the left pane and the page shown in the following figure appears. Entries in the table are used to restrict certain types of data packets through the gateway. These filters are helpful in securing or restricting your local network.
  • Page 91 User Manual of VDR-301N 5.6.2.2 IPv6/Port Filter Figure 5-72 IPv6/Port Filter The following table describes the parameters: Field Description Rule Action Permit or deny traffic when matching this rule. Protocol There are 4 options available: IPv6, ICMP6, TCP, and UDP.

  • Page 92: Url Filter

    User Manual of VDR-301N 5.6.3 URL Filter Click URL Filter in the left pane and the page shown in the following figure appears. This page is used to block a fully qualified domain name, such as tw.yahoo.com and filtered keyword (yahoo). You can add or delete fully qualified domain name and filtered keyword.

  • Page 93: Acl

    User Manual of VDR-301N 5.6.4 ACL 5.6.4.1 ACL Choose Service > ACL and the page shown in the following figure appears. On this page, you can permit the data packets from LAN or WAN to access the router. You can configure the IP address for Access Control List (ACL).
  • Page 94 User Manual of VDR-301N The following table describes the parameters: Field Description Select the router interface. You can select LAN or WAN. In this Direction Select example, LAN is selected. LAN ACL Switch Select it to enable or disable ACL function.
  • Page 95 User Manual of VDR-301N 5.6.4.2 IPv6 ACL Choose Service > IPv6 ACL and the page shown in the following figure appears. Figure 5-76 IPv6 ACL...
  • Page 96 User Manual of VDR-301N If WAN is selected in the field of Direction Select, the page is shown in the following figure. Figure 5-77 IPv6 ACL WAN...

  • Page 97: Dos

    User Manual of VDR-301N 5.6.5 DoS Denial-of-Service Attack (DoS attack) is a type of attack on a network that is designed to bring the network to its knees by flooding it with useless traffic. Figure 5-78 DoS The following table describes the parameters:...

  • Page 98: Maintenance

    User Manual of VDR-301N 5.7 Maintenance In the navigation bar, click Maintenance. The Maintenance page displayed contains Update, Password, Reboot, Time, Log and Diagnostics. 5.7.1 Update Choose Maintenance > Update. The Update page displayed contains Upgrade Firmware and Backup/Restore. Do not turn off the router or press the Reset button while the procedure is in progress.
  • Page 99 User Manual of VDR-301N 5.7.1.2 Backup/Restore Click Backup/Restore in the left pane and the page shown in the following figure appears. You can back up the current settings to a file and restore the settings from the file that was saved previously.

  • Page 100: Password

    User Manual of VDR-301N 5.7.2 Password Choose Maintenance > Password and the page shown in the following figure appears. By default, the user name and password of the administrator are admin and admin respectively. The user name and password of the common user are user and user respectively.

  • Page 101: Reboot

    It helps to change to default settings. It takes around 30 seconds to Setting restart the device and then again log in User Name and Password. Do not turn off the VDR-301N or press the reset button while this procedure is in progress.

  • Page 102: Time

    User Manual of VDR-301N 5.7.4 Time Choose Maintenance > Time and the page shown in the following figure appears. You can configure the system time manually or get the system time from the time server. Figure 5-83 Time The following table describes the parameters:...

  • Page 103: Log

    User Manual of VDR-301N 5.7.5 Log Choose Maintenance > Log and the page shown in the following figure appears. On this page, you can enable or disable system log function and view the system log. Figure 5-84 Log The following table describes the parameters:...
  • Page 104 User Manual of VDR-301N Figure 5-85 Ping The following table describes the parameters: Field Description Host Address Enter IP address you want to ping. Interface Choose a WAN interface. 5.7.6.2 Ping6 Choose Diagnostic > Ping6 and the page shown in the following figure appears.
  • Page 105 User Manual of VDR-301N 5.7.6.3 Traceroute Choose Diagnostic >Traceroute and the following page appears. By Traceroute Diagnostic, you can track the route path through the information which is from your computer to the other side host on the Internet. Figure 5-87 Traceroute...
  • Page 106 User Manual of VDR-301N 5.7.6.4 Traceroute6 Choose Diagnostic >Traceroute6 and the following page appears. By Traceroute Diagnostic, you can track the route path through the information which is from your computer to the other side host on the Internet. Figure 5-88 Traceroute6...
  • Page 107 User Manual of VDR-301N 5.7.6.5 OAM Loopback Choose Diagnostic > OAM Loopback and the page shown in the following figure appears. On this page, you can use VCC loopback function to check the connectivity of the VCC. The ATM loopback test is useful for troubleshooting problems with the DSLAM and ATM network.
  • Page 108 User Manual of VDR-301N 5.7.6.6 DSL Diagnostic Choose Diagnostic > DSL Diagnostic and the page shown in the following figure appears. It is used for xDSL tone diagnostics. Figure 5-90 DSL Diagnostic Click Start to start ADSL tone diagnostics.
  • Page 109 User Manual of VDR-301N 5.7.6.7 Diag-Test Choose Diagnostics > Diag-Test and the page shown in the following figure appears. On this page, you can test the VDSL2 Router connection. You can also view the LAN status connection and fiber connection.

  • Page 110: Chapter 6. Quick Connection To A Wireless Network

    User Manual of VDR-301N Chapter 6. Quick Connection to a Wireless Network In the following sections, the default SSID of the VDR-301N is configured to “default”. 6.1 Windows XP (Wireless Zero Configuration) Step 1: Right-click on the wireless network icon displayed in the system tray Figure 6-1 System Tray –...
  • Page 111 User Manual of VDR-301N Step 4: Enter the encryption key of the Wireless AP (1) The Wireless Network Connection box will appear (2) Enter the encryption key that is configured in section 5.3.3.2 (3) Click the [Connect] button Figure 6-3 Enter the network key Step 5: Check if “Connected”...

  • Page 112: Windows 7 (Wlan Autoconfig)

    User Manual of VDR-301N Some laptops are equipped with a “Wireless ON/OFF” switch for the internal wireless LAN. Make sure the hardware wireless switch is switched to “ON” position. 6.2 Windows 7 (WLAN AutoConfig) WLAN AutoConfig service is built-in in Windows 7 to enable to detect and connect to wireless network. This built-in wireless network connection tool is similar to the wireless zero configuration tool in Windows XP.
  • Page 113 User Manual of VDR-301N If you will be connecting to this Wireless AP in the future, check [Connect automatically]. Step 4: Enter the encryption key of the Wireless AP (1) The Connect to a Network box will appear (2) Enter the encryption key that is configured in section 5.3.3.2...
  • Page 114 User Manual of VDR-301N Step 5: Check if “Connected” is displayed Figure 6-9 Connected to a Network...

  • Page 115: Mac Os X 10.X

    User Manual of VDR-301N 6.3 Mac OS X 10.x In the following sections, the default SSID of the VDR-301N is configured to “default”. Step 1: Right-click on the network icon displayed in the system tray The AirPort Network Connection menu will appear Figure 6-10 Mac OS –...
  • Page 116 User Manual of VDR-301N Figure 6-12 Enter the Password If you will be connecting to this Wireless AP in the future, check [Remember this network]. Step 5: Check if the AirPort is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID.
  • Page 117 User Manual of VDR-301N There is another way to configure the MAC OS X Wireless settings: Step 1: Click and open the [System Preferences] by going to Apple > System Preference or Applications Figure 6-14 System Preferences Step 2: Open Network Preference by clicking on the [Network] icon...
  • Page 118 User Manual of VDR-301N Step 3: Check Wi-Fi setting and select the available wireless network (1) Choose the AirPort on the left-menu (make sure it is ON) (2) Select Network Name [default] here If this is the first time to connect to the Wireless AP, it should show “Not network selected”.

  • Page 119: Iphone/Ipod Touch/Ipad

    User Manual of VDR-301N 6.4 iPhone/iPod Touch/iPad In the following sections, the default SSID of the VDR-301N is configured to “default”. Step 1: Tap the [Settings] icon displayed in the home screen Figure 6-17 iPhone – Settings icon Step 2: Check Wi-Fi setting and select the available wireless network...
  • Page 120 User Manual of VDR-301N Figure 6-19 Wi-Fi Setting – Not Connected Step 3: Tap the target wireless network (SSID) in “Choose a Network…” (1) Turn on Wi-Fi by tapping “Wi-Fi” (2) Select SSID [default] Figure 6-20 Turn on Wi-Fi Step 4: Enter the encryption key of the Wireless AP...
  • Page 121 User Manual of VDR-301N (3) Tap the [Join] button Figure 6-21 iPhone -- Enter the Password Step 5: Check if the device is connected to the selected wireless network. If “Yes”, then there will be a “check” symbol in the front of the SSID.
  • Page 122 User Manual of VDR-301N Appendix A: Cable Profiles A.1 Device’s RJ45 Pin Assignments 10/100Mbps, 10/100BASE-TX ■ Contact MDI-X 1 (TX +) 2 (TX -) 3 (RX +) 6 (RX -) Not used 4, 5, 7, 8 Not used Implicit implementation of the crossover function within a twisted-pair cable, or at a wiring panel, while not expressly forbidden, is beyond the scope of this standard.
  • Page 123 User Manual of VDR-301N Straight-through Cable SIDE 1 SIDE 2 SIDE 1 1 = White / Orange 1 = White / Orange 2 = Orange 2 = Orange 3 = White / Green 3 = White / Green 4 = Blue...

  • Page 124: Ec Declaration Of Conformity

    ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ outras disposições da Directiva 1999/5/CE. ΣΧΕΤΙΚΕΣ ΔΙΑΤΑΞΕΙΣ ΤΗΣ ΟΔΗΓΙΑΣ 1999/5/ΕΚ Por medio de la presente, PLANET Technology Výrobca PLANET Technology Corporation, Corporation, declara que 802.11n Wireless týmto deklaruje, že táto 802.11n Wireless Internet VDSL2 Router cumple con los requisitos Español...
